Description

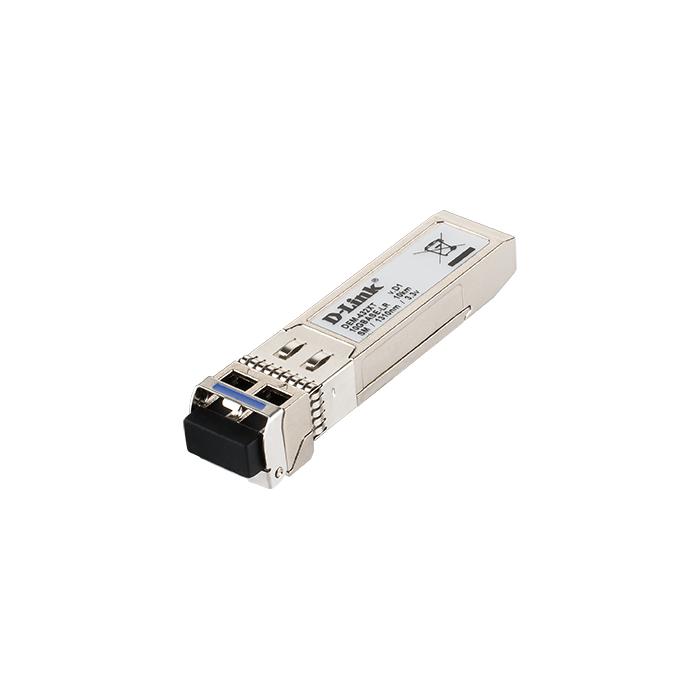

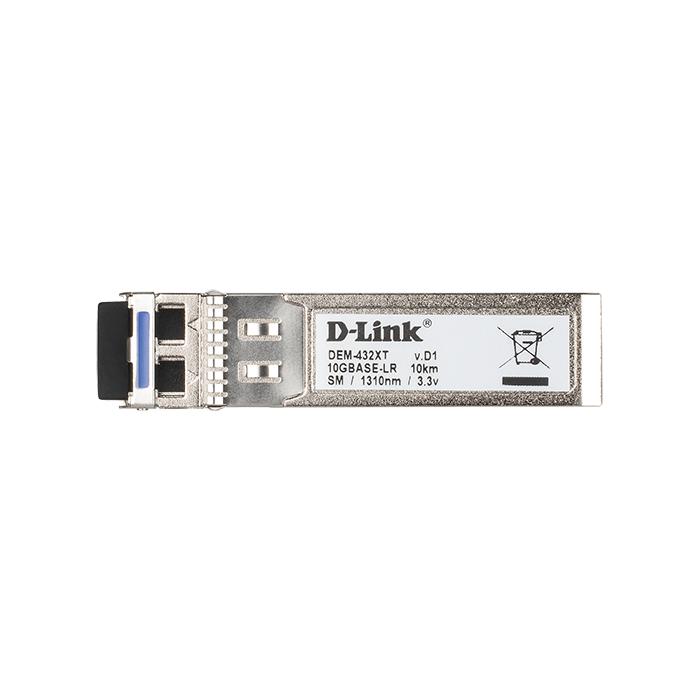

The D-Link DEM-432XT transceiver module is an SFP+ for fibre optic networks that reaches a maximum data transfer speed of 10000 Mbit/s. It works with single-mode fibre (SMF) and a wavelength of 1310 nm, with an LC fibre optic connector and an SFP LR transceiver type. It supports a fibre diameter of 9/125 µm and offers a maximum transfer distance of 10000 m under the IEEE 802.3ae standard. Its ethernet cabling technology is 10GBASE and the duplex system is full. It has a Tx power of between -8.5 and 0.5 dBmW and an Rx power of between -12.6 and 0.5 dBmW. The link has a budget of 10.1 dB. The module, in gold and metallic, weighs 19.5 g and measures 14.8 x 56.5 x 11.8 mm.
Specifications
Performance
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Single-mode fiber (SMF) supported: Yes
- Multi-mode fiber (MMF) supported: No
- Fiber optic connector: LC
- Fiber cable diameters supported (core/cladding): 9/125 µm
- SFP transceiver standard: LR
- Maximum transfer distance: 10000 m
- Wavelength: 1310 nm
- Tx power (min): -8.5 dBmW
- Tx power (max): 0.5 dBmW
- Rx power (min): -12.6 dBmW
- Rx power (max): 0.5 dBmW
- Link budget: 10.1 dB
- Networking standards: IEEE 802.3ae
- Fiber ethernet cabling technology: 10GBASE
- Duplex system: Full
Features
- Product colour: Gold, Metallic
- Hot-Plug support: Yes
- Mean time between failures (MTBF): 4650000 h
Power
- Maximum voltage: 3.3 V
- Maximum current: 300 A
Certificates
- Compliance certificates: RoHS
- Safety: UL, TUV, CDRH
- Certification: CE, FCC, VCCI, MSA
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 85%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 14.8 mm
- Depth: 11.8 mm
- Height: 56.5 mm
- Weight: 19.5 g
Packaging data
- Package width: 74 mm
- Package depth: 131 mm
- Package height: 49 mm
- Package weight: 64 g
Logistics data
- Shipping (inner) case length: 36 cm
- Shipping (inner) case width: 26 cm
- Shipping (inner) case height: 31 cm
- Shipping (inner) case net weight: 3.2 kg
- Products per shipping (inner) case: 50 pc(s)
- Pallet gross weight (air): 272 kg
- Master (outer) cases per pallet (air): 60 pc(s)
- Products per pallet (air): 3000 pc(s)
- Pallet gross length: 102 cm
- Pallet gross width: 122 cm
- Pallet height (air): 199 cm
- Pallet gross weight (sea): 272 kg
- Master (outer) cases per pallet (sea): 60 pc(s)
- Products per pallet (sea): 3000 pc(s)
- Pallet height (sea): 199 cm
- Shipping (inner) case gross weight: 4.2 kg
- Harmonized System (HS) code: 85369010
