Description

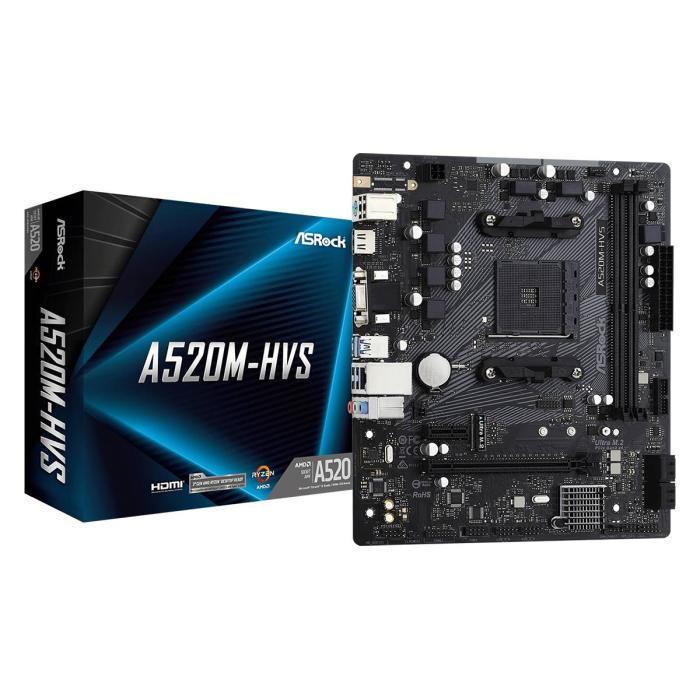

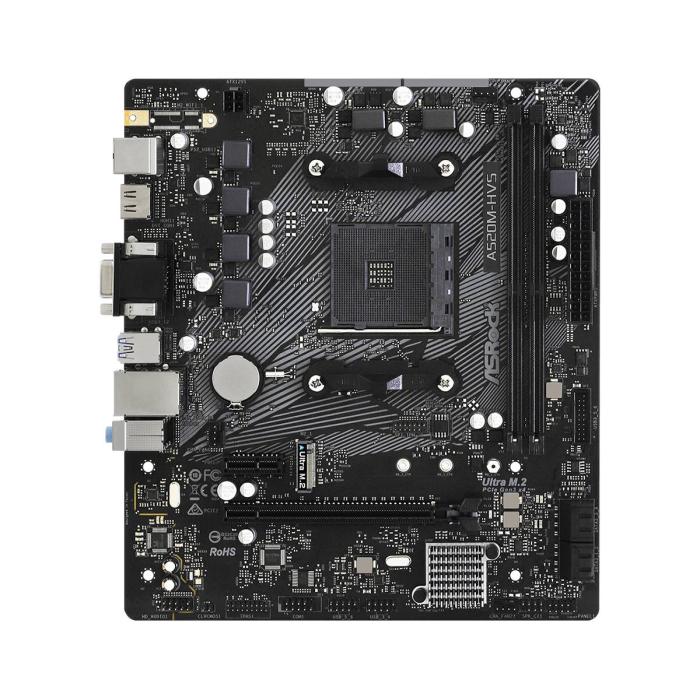

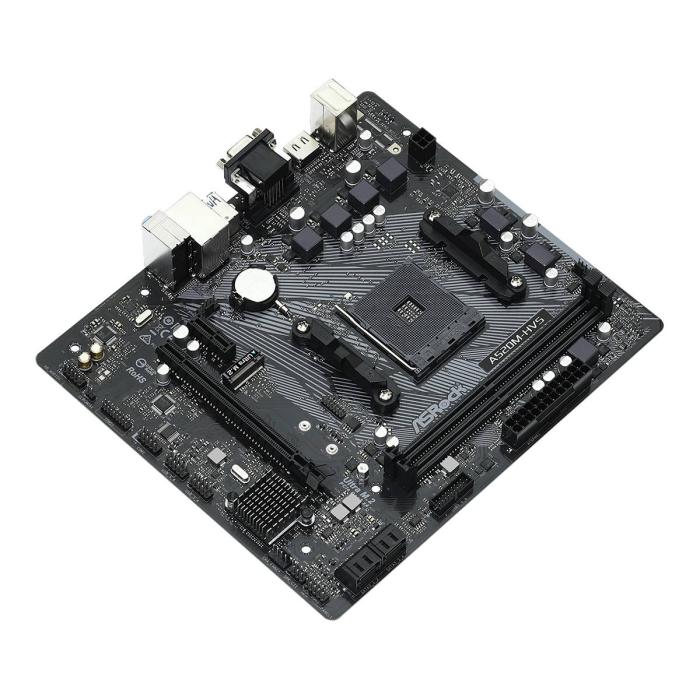

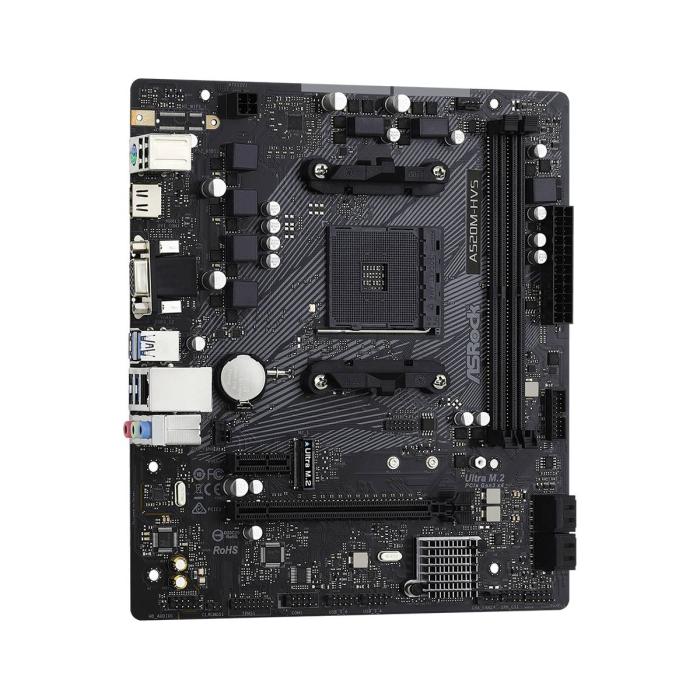

Asrock A520M-HVS micro ATX motherboard with an AM4 socket, designed for AMD Ryzen 3000 series processors. It features two DIMM slots compatible with unbuffered, non-ECC DDR4-SDRAM, supporting up to 64 GB of memory in dual-channel mode. Storage connectivity is provided via M.2 and SATA III interfaces, with support for up to five hard drives, and it includes AMD's integrated Radeon Vega graphics. It has two internal USB 2.0 headers, a front panel audio header, a 24-pin ATX power connector, and two chassis fan connectors, covering the basic needs of a desktop computer.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 2133, 2400, 2666, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4500, 4533 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 5
Graphics
- Graphics card family: AMD
- Graphics card: Radeon Vega
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- Number of COM connectors: 1

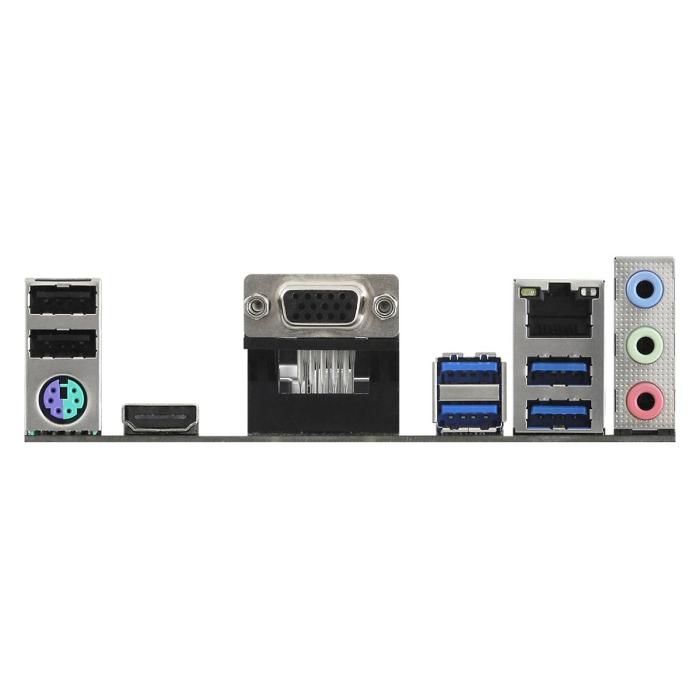

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wake-on-LAN ready: Yes
- Wi-Fi: No
Features
- Motherboard chipset: AMD A520
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
BIOS
- BIOS type: UEFI AMI
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 230 mm
- Depth: 201 mm
Packaging content
- Cables included: SATA
- Drivers included: Yes
