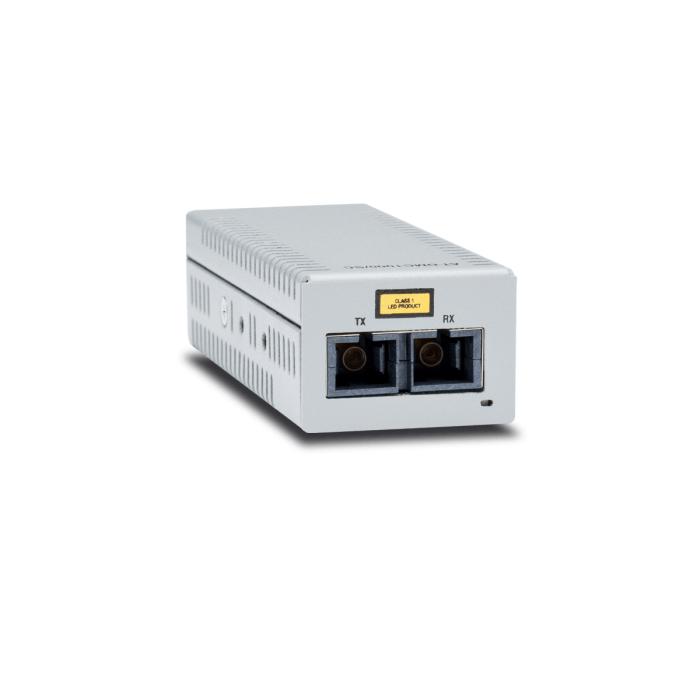

Allied Telesis DMC1000/SC network media converter 1000 Mbit/s 850 nm Multi-mode Grey
More info
Brand: ALLIED TELESIS
329.00 €Stock available: 0 units.
Unavailable
SKU:
78828
PRC:
155719
EAN:
767035206691
PN:
990-004825-50
Description
The Allied Telesis DMC1000/SC media converter, in grey, connects a 1000Base-T Ethernet network with a 1000Base-SX multi-mode fibre optic installation. It reaches a data transfer speed of 1000 Mbit/s and covers distances of up to 550 m over 50/125 or 62.5/125 µm fibre, working with a wavelength of 850 nm. Its operation supports full-duplex and half-duplex mode, and it incorporates auto-negotiation and Auto MDI/MDI-X to adapt to the cabling without manual configurations. It also manages link loss return and link loss carry forward, so that connected equipment detects when the fibre span is interrupted. The LED indicators show the status of the connections and traffic. With dimensions of 31.8 x 21.6 x 91.4 mm (width x height x depth) and a weight of 113 g, it is a compact piece that integrates easily into the rack or at the installation point.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 1000Base-T
- Converter output interface: 1000Base-SX
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Duplex system: Full, Half
- Link Loss Carry Forward (LLCF) supported: Yes
- Link Loss Return (LLR) supported: Yes
Performance
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Fiber mode structure: Multi-mode
- Fiber cable diameters supported (core/cladding): 50/125, 62.5/125 µm
- Tx power (min): -9.5 dBmW
- Tx power (max): -4 dBmW
- Rx power (min): -17 dBmW
- Rx power (max): -20 dBmW
Features
- Internal: No
- LED indicators: Yes
- Product colour: Grey
- DIN rail mounting: Yes
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
Weight & dimensions
- Width: 31.8 mm
- Depth: 91.4 mm
- Height: 21.6 mm
- Weight: 113 g
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
Certificates
- Compliance certificates: RoHS
