Description

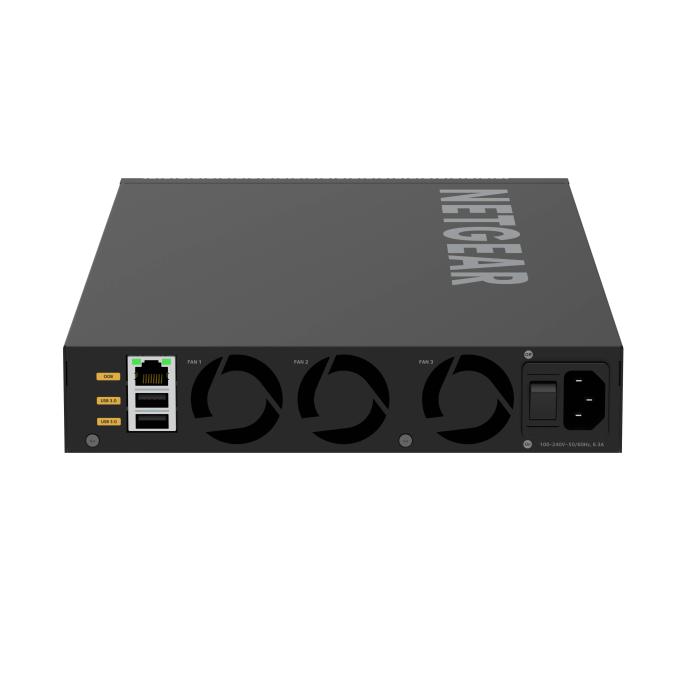

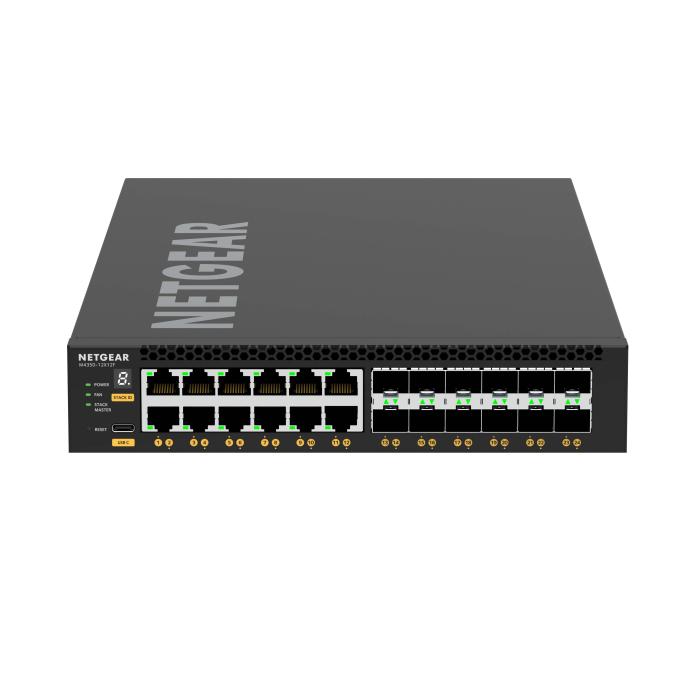

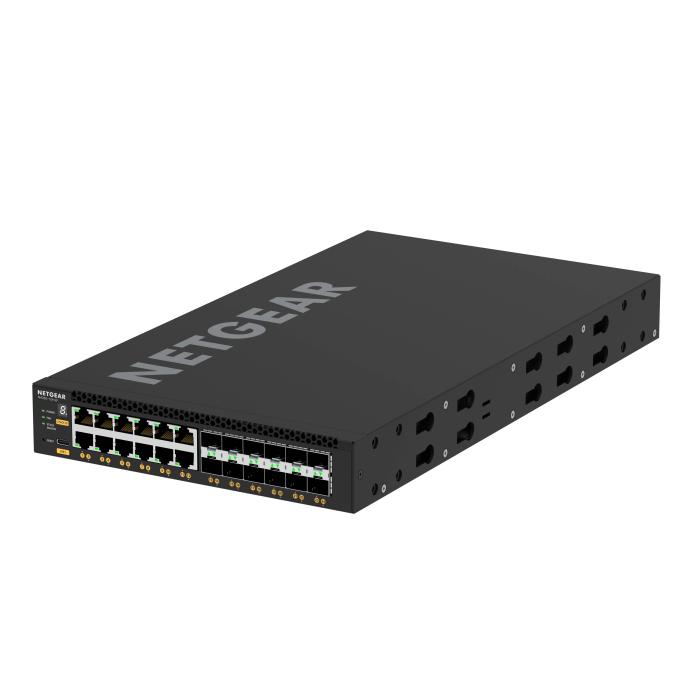

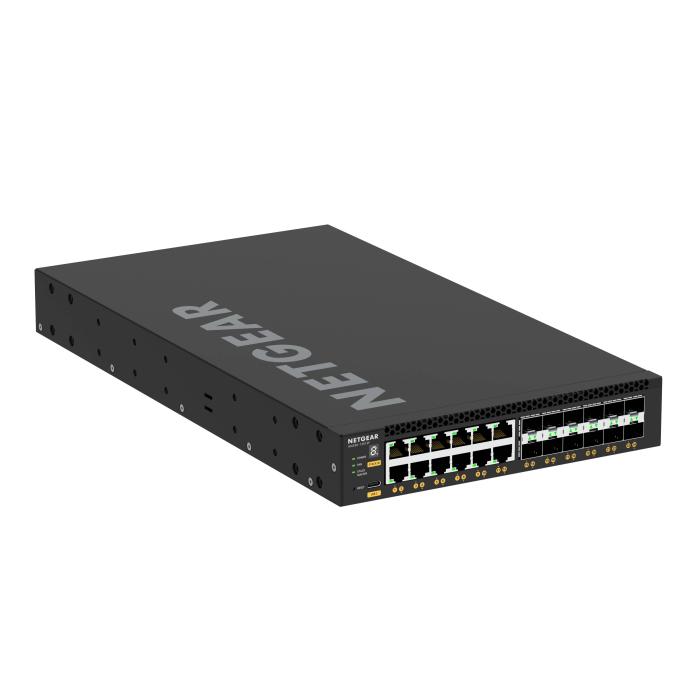

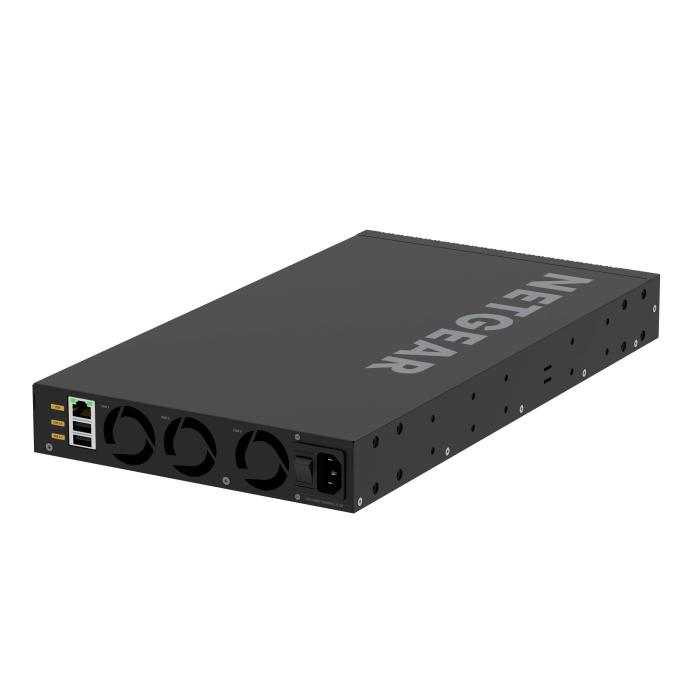

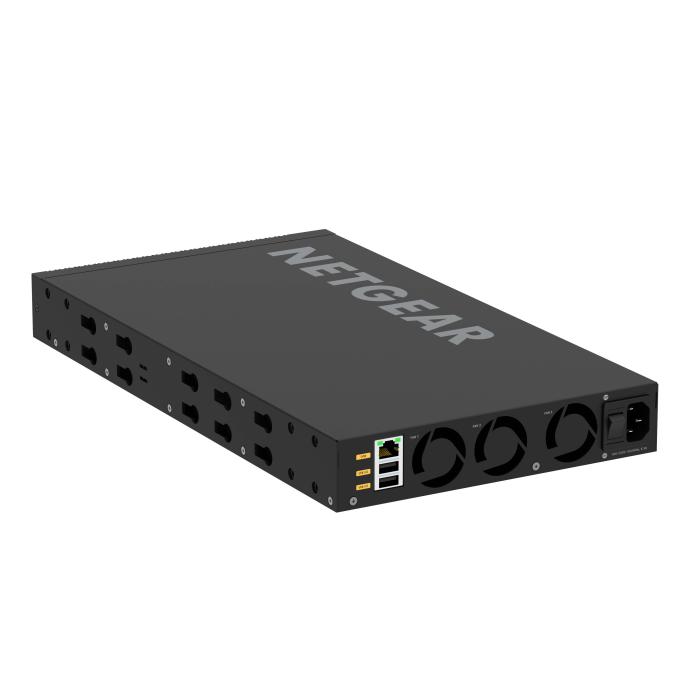

NETGEAR M4350-12X12F, Managed, L3, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting, 1U
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
Ports & interfaces

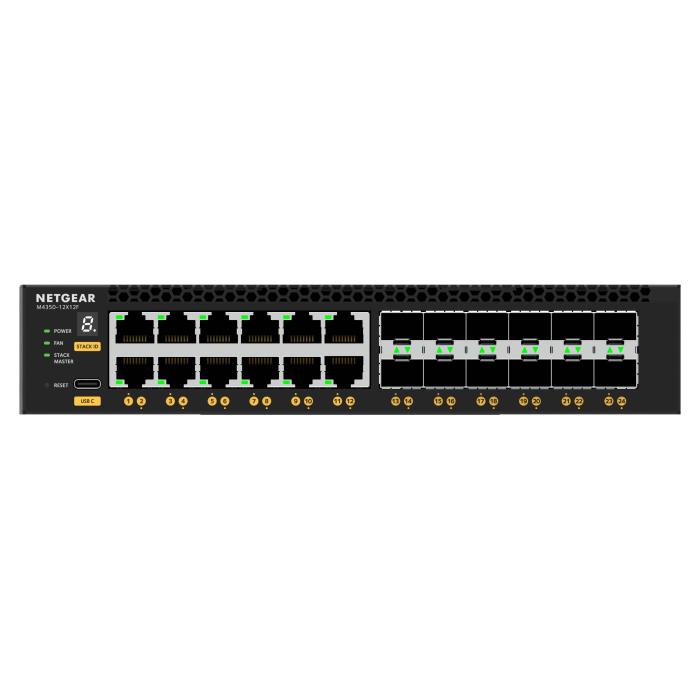

- Basic switching RJ-45 Ethernet ports quantity: 12
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- 10G Ethernet (copper) ports quantity: 12
- SFP+ module slots quantity: 12

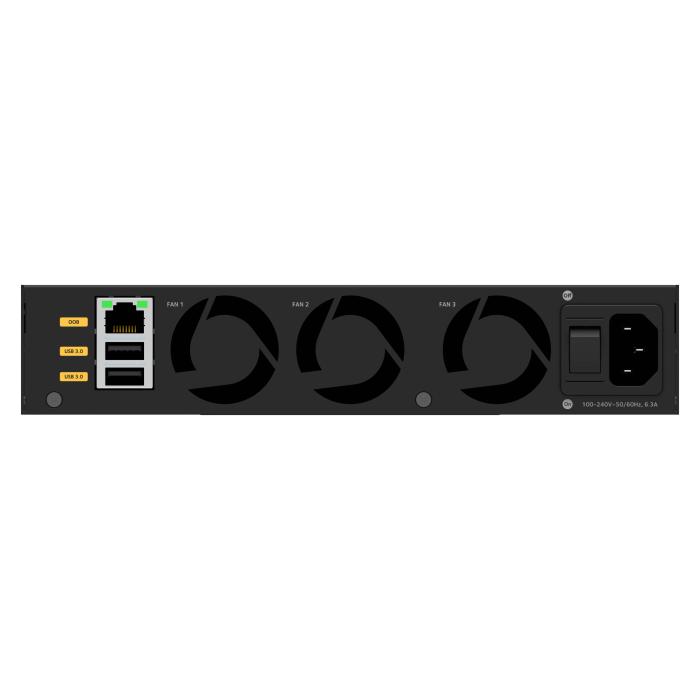

- Power connector: AC-in jack
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802
- 10G support: Yes
- Full duplex: Yes
- Policy-based routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- 6to4 tunnel: Yes
- IPv4 routes: 512
- IPv6 routes: 256
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Private VLAN, Voice VLAN
- Number of VLANs: 4093
Data transmission
- Switching capacity: 480 Gbit/s
- Throughput: 357.12 Mpps
- MAC address table: 16000 entries
- Store-and-forward: Yes
- Latency (1 Gbps): 2.14 µs
- Latency (10 Gbps): 2.29 µs
- Jumbo frames support: Yes
- Jumbo frames: 12000
- Packet buffer memory: 32 MB
Security
- DHCP features: DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
- Access Control List (ACL): Yes
- Access Control List (ACL) egress: 1023
- Access Control List (ACL) ingress: 511
- IGMP snooping: Yes
- IGMP proxy: Yes
- MAC address filtering: Yes
- Static port security: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- Authentication: Guest VLAN, MAC-based authentication
- Root protection: Yes
- Password protection: Yes
- DoS attack prevention: Yes
- Authentication type: RADIUS, TACACS+
- Queue scheduling algorithms: Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Multicast features
- Multicast support: Yes
- Multicast Listener Discovery (MLD) snooping: Yes
Protocols
- Management protocols: SNMP V1, V2, V3
- GARP VLAN Registration Protocol (GVRP): Yes
- Routing protocols: OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Design
- Rack mounting: Yes

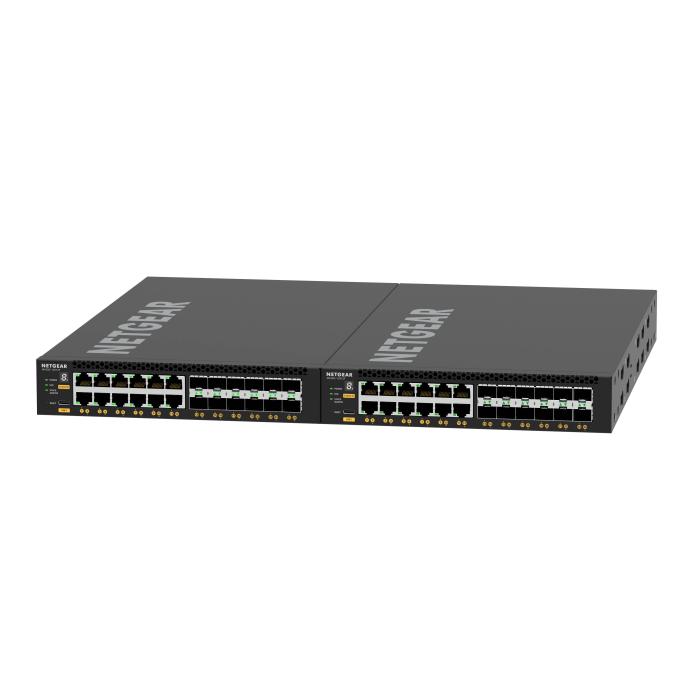

- Stackable: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
- Airflow direction: Front-to-back airflow
Performance
- Built-in processor: Yes
- Processor model: ARM Cortex-A57
- Processor frequency: 1800 MHz
- Memory type: DDR4-SDRAM
- Internal memory: 2048 MB
- Flash memory: 512 MB
- sFlow: Yes
Power
- Power source: AC
- Power supply included: Yes
- Power consumption (typical): 95.8 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Other features
- Power supply: 240 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 3000 m
Weight & dimensions
- Width: 220 mm
- Depth: 400 mm
- Height: 43.2 mm
- Weight: 4.3 kg
Packaging content
- Cables included: AC, USB Type-C
- Quick start guide: Yes
- Rack mount kit: Yes
Packaging data
- Included power plug types: EU, UK, NA
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
