Description

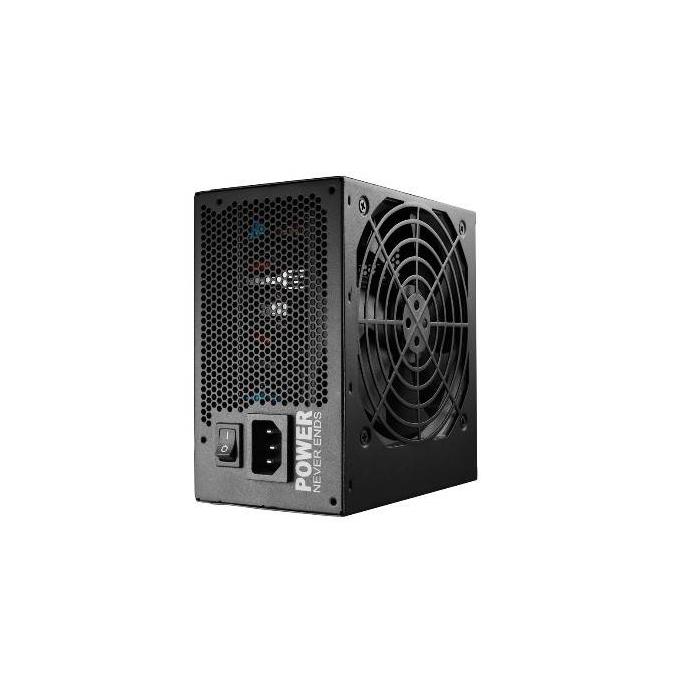

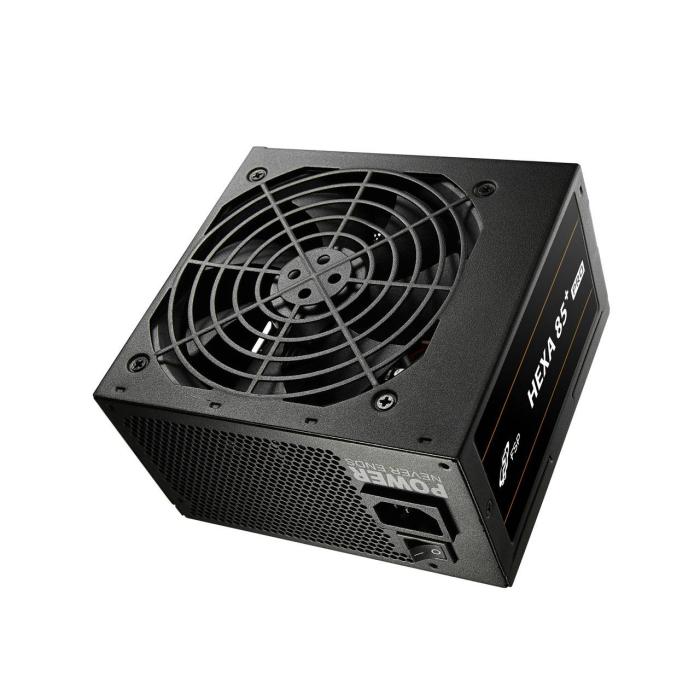

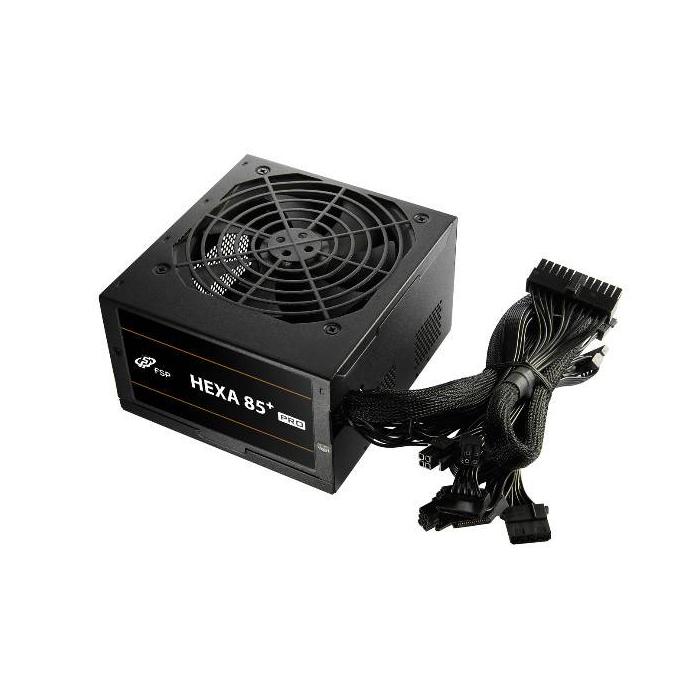

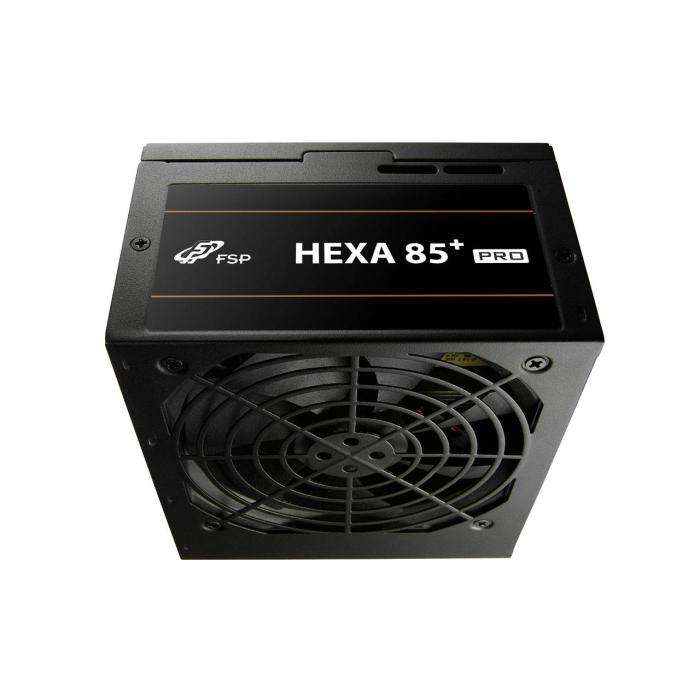

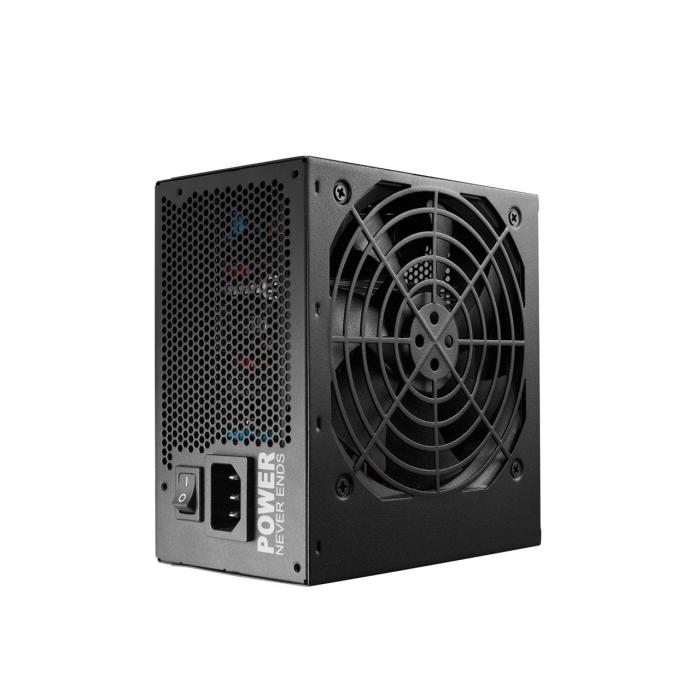

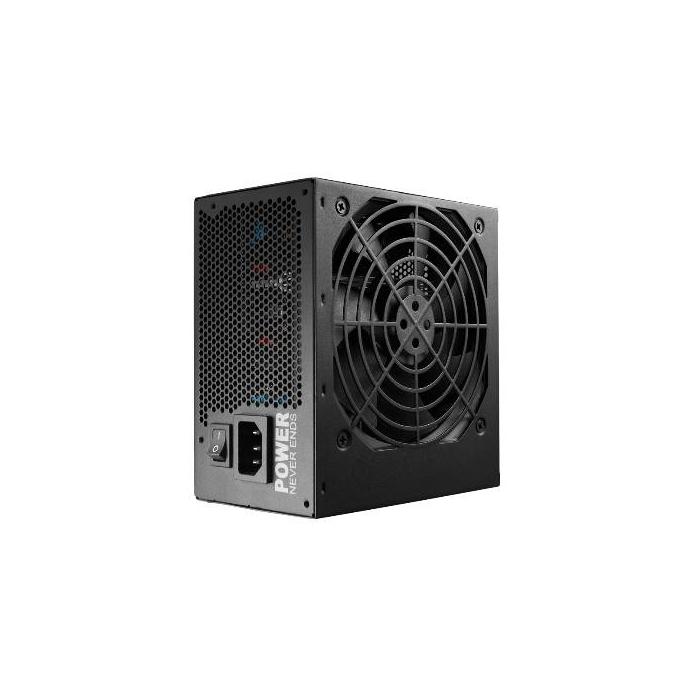

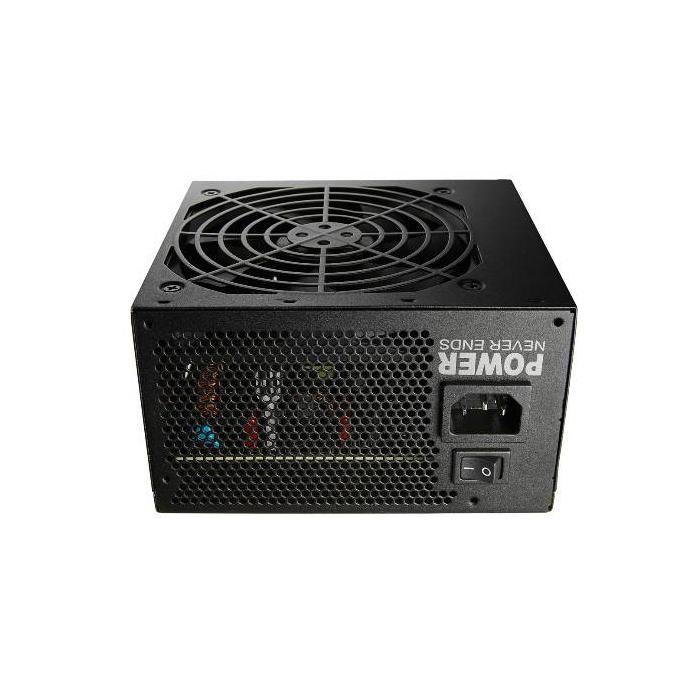

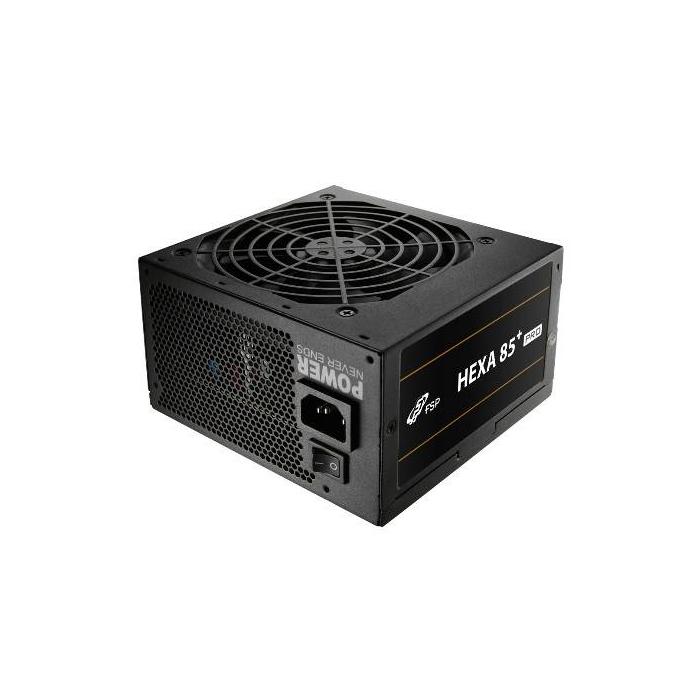

FSP HEXA 85+ PRO 450W power supply unit with ATX form factor in black, designed to deliver a total power of 450 W and 85% efficiency. Its specifications highlight a maximum output current of 37.5 A on the +12 V rail, with a combined power of 450 W on this same rail, as well as 16 A on +5 V and +3.3 V, each with 85 W combined power. It includes protection against overcurrent, overvoltage, overvoltage and short circuit, plus active power factor correction (PFC) and a hold-up time of 17 ms. It connects via the main 24-pin connector and supports an AC input voltage of 100-240 V with a frequency of 50-60 Hz and input current of 6-2.5 A, while auxiliary lines offer 12.5 W on +5 VSB and 3.6 W on -12 V.
Specifications
Power
- Total power: 450 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 6-2.5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 85 W
- Combined power (+12V): 450 W
- Combined power (+5V): 85 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 16 A
- Max output current (+12V): 37.5 A
- Max output current (+5V): 16 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Hold time: 17 ms
- Efficiency: 85%
- Power protection features: Over current, Over power, Over voltage, Short circuit
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 5
- Peripheral (Molex) power connectors (4-pin): 2
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- ATX Power connector (24-pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- PCI Express connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC/Server
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.5
- EPS version: 2.92
- Bearing technology: Sleeve
Design
- Product colour: Black
- Cooling type: Active

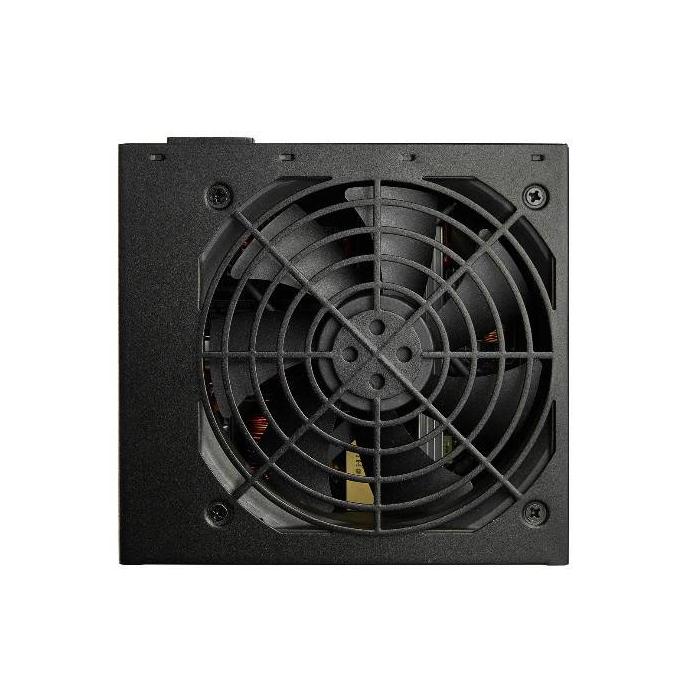

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Packaging content

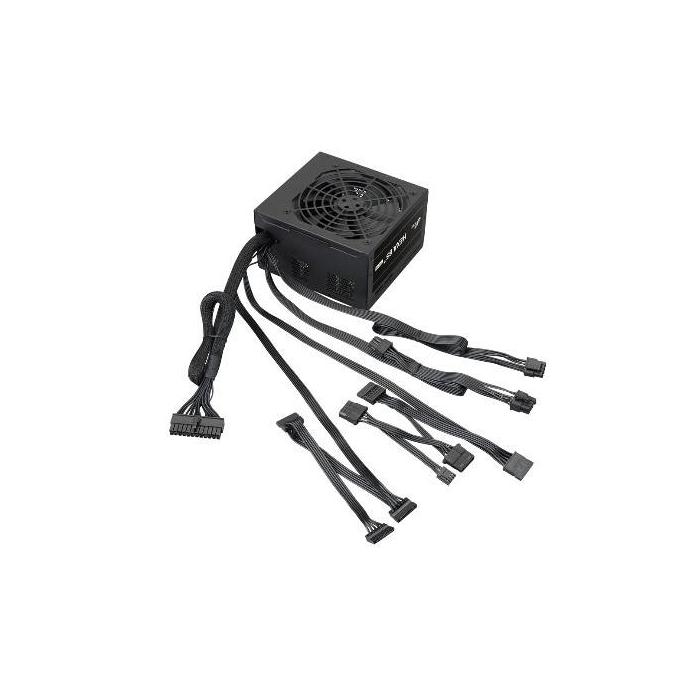

- Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
- Width: 140 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.25 kg
Logistics data
- Harmonized System (HS) code: 84733020
