Description

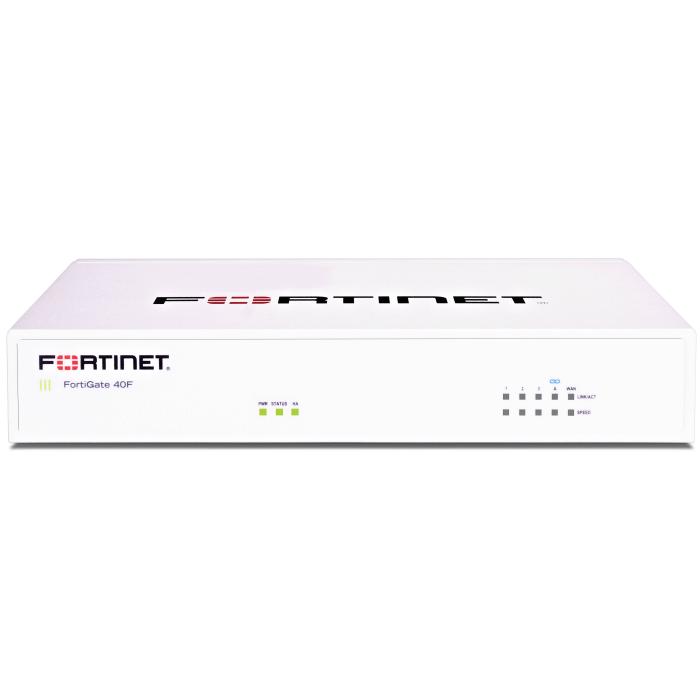

This Fortinet FortiGate-40F is a desktop firewall offering a firewall throughput of 5 Gbit/s and an IPSec VPN transfer rate of 4.4 Gbit/s. With a rate of 7.5 Mpps and a latency of just 4 µs, it efficiently manages up to 700,000 active TCP connections and 250 VPN tunnels. Its SSL inspection reaches 310 Mbit/s, while IPS/IDS throughput reaches 1000 Mbit/s, supporting 5,000 security policies and 10 domains. It includes a USB 2.0 port, an RJ-45 console port, and an Ethernet WAN connection, with LED indicators and a reset button, operating silently at 0 dB.
Specifications
Data transmission
- IPSec VPN throughput: 4.4 Gbit/s
- IPS/IDS throughput: 1000 Mbit/s
- SSL inspection throughput: 310 Mbit/s
- Firewall latency: 4 µs
- Security policies (max): 5000
Performance
- Heat dissipation: 52.55 BTU/h
- Reset button: Yes
- Noise level: 0 dB
Network
- VPN tunnels quantity: 250
- Active TCP connections (max): 700000
Security
- Domains quantity: 10
Management features
- LED indicators: Yes
Ports & interfaces
- Connectivity technology: Wired
- USB 2.0 ports quantity: 1
- Ethernet LAN (RJ-45) ports: 4
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Console port: RJ-45
- Number of console ports: 1
- WAN connection: Ethernet (RJ-45)
Design
- Form factor: Desktop
Power
- AC input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
- Input current: 3 A
- Power consumption (typical): 12.4 W
- Power consumption (max): 15.4 W
Certificates
- Certification: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, ICSA Labs
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -35 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Operating altitude: 0 - 2250 m
Weight & dimensions
- Width: 216 mm
- Depth: 160 mm
- Height: 38.5 mm
- Weight: 1 kg
Other features
- Firewall throughput: 5000 Mbit/s
Logistics data
- Harmonized System (HS) code: 85176990
