Description

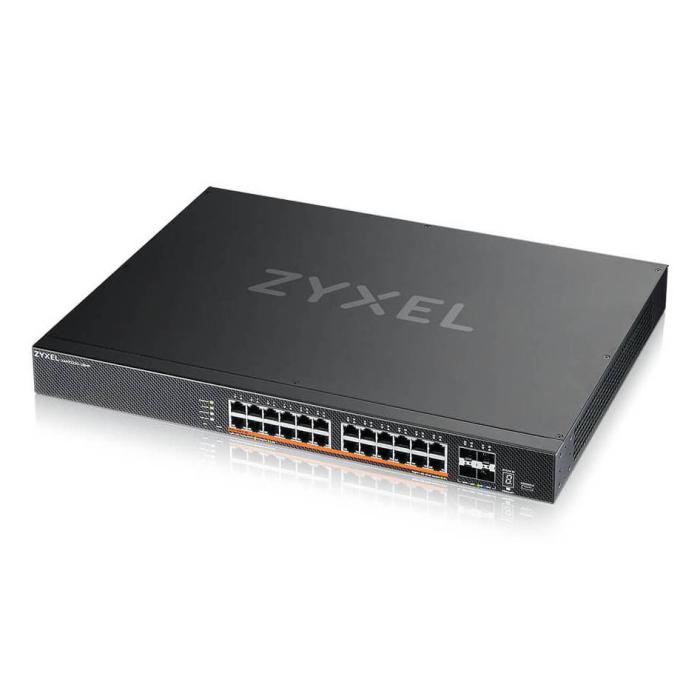

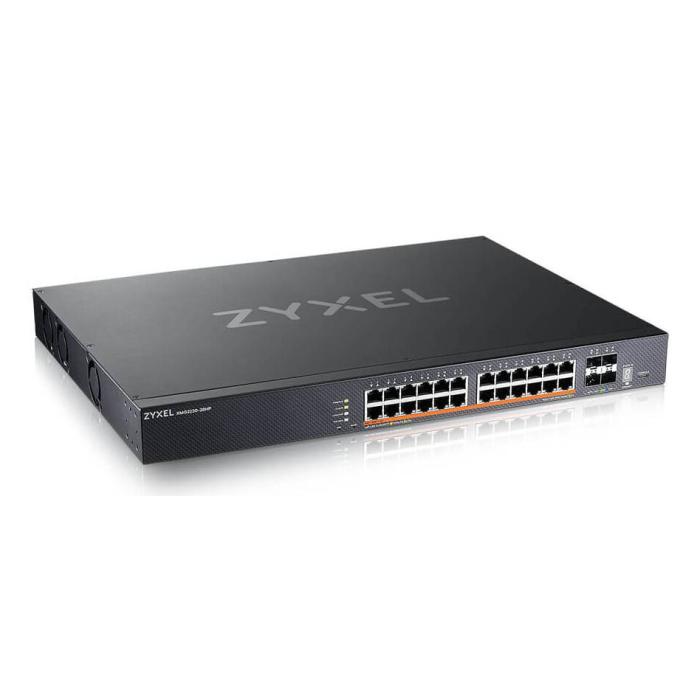

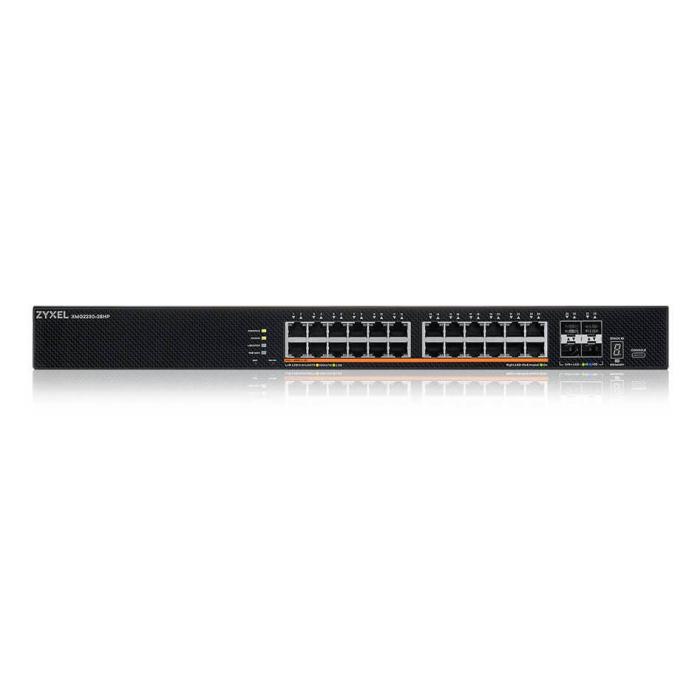

Zyxel XMG2230-28HP managed L2/L3 switch in 1U format and black colour, with 24 RJ-45 ports of 2.5G Ethernet (100/1000/2500) and 4 SFP+ slots for 10G links. Supports PoE to power network devices directly from the switch, and offers cloud management, CLI and RJ-45/USB Type-C console. Includes QoS, port mirroring, rate limiting, storm control and policy-based routing with 64 routes, plus VLAN features such as port-based, protocol-based, voice or private VLAN. Ideal for enterprise or campus networks requiring high performance and centralised control, with ARP inspection for robustness.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
- Cloud-managed: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- SFP+ module slots quantity: 4
- Console port: RJ-45/USB Type-C
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802
- 10G support: Yes
- Copper ethernet cabling technology: 2.5GBASE-T, 100BASE-T, 1000BASE-T
- Port mirroring: Yes
- Policy-based routing: Yes
- Routing entries: 64
- Broadcast storm control: Yes
- Rate limiting: Yes
- Virtual LAN features: IP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Data transmission
- Switching capacity: 200 Gbit/s
- Forwarding rate: 148.8 Mpps
- MAC address table: 32000 entries
- Static route: Yes
- Number of static routes: 4000
- Number of IP interfaces: 32
- Jumbo frames support: Yes
- Jumbo frames: 12
- Packet buffer memory: 2 MB
Security
- DHCP features: DHCP Option 60, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 snooping
- IGMP snooping: Yes
- IGMP proxy: Yes
- Security algorithms: SNMP, SNMPv2, SNMPv3
- Static port security: Yes
- SSH/SSL support: Yes
- BPDU filtering/protection: Yes
- IP-MAC-Port binding: Yes
- Authentication: Guest VLAN, MAC-based authentication
- Authentication type: IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+
Multicast features
- Multicast support: Yes
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 & IPv6 features: Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
Performance
- Internal memory: 1000 MB
- Flash memory: 64 MB
- Noise level: 48.85 dB
- Mean time between failures (MTBF): 554612.62 h
Power
- Power source: AC/PoE
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- DC input voltage: 50 - 57 V
- Power consumption (max): 1519.1 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE++ (4PPoE)
- Total Power over Ethernet (PoE) budget: 1440 W
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 2856 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 330 mm
- Height: 44 mm
- Weight: 4.53 kg
Packaging data
- Package width: 580 mm
- Package depth: 503 mm
- Package height: 95 mm
- Package weight: 6.81 kg
Certificates
- Compliance certificates: BSMI, Low Voltage Directive (LVD), RoHS
- Certification: FCC Part 15 (Class A) CE EMC (Class A) BSMI EMC
