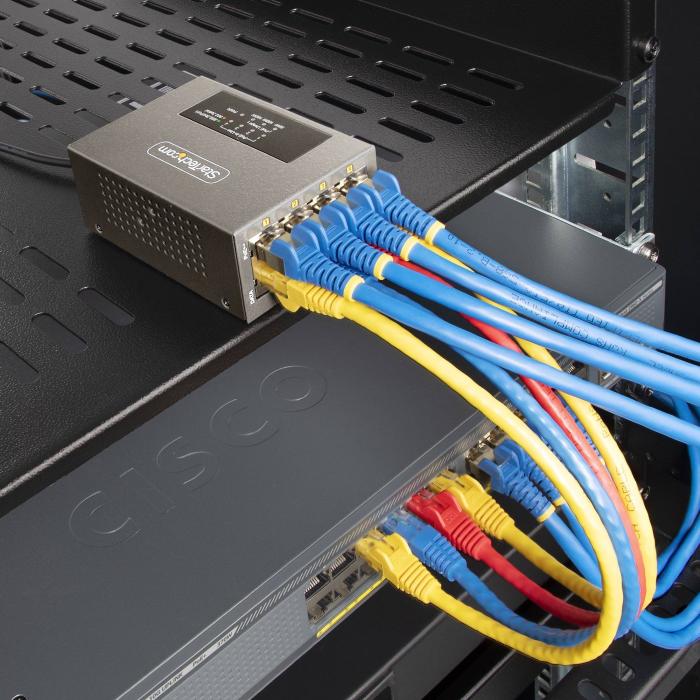

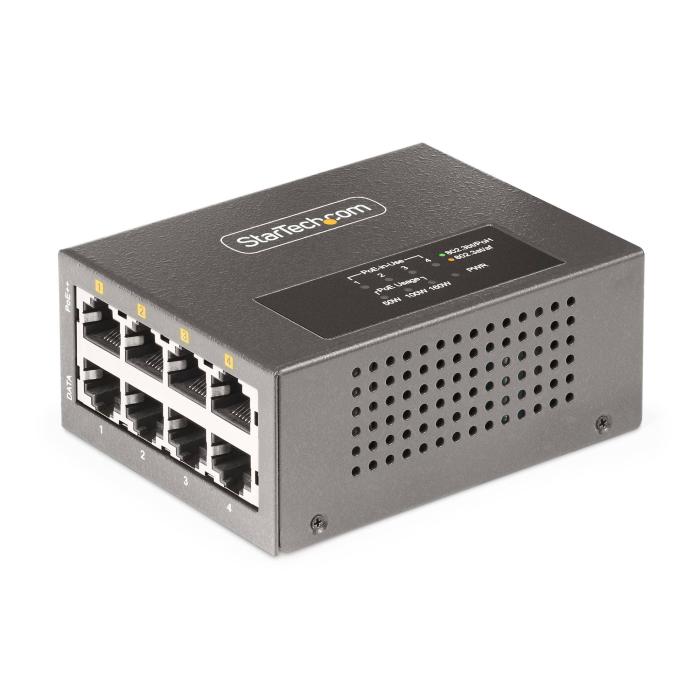

Name: StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged
Brand: STARTECH.COM
Price: 379.16 EUR
Availability: InStock

StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged

379.16 €

298.55 € without VAT

Description

StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++, Wall/DIN Rail Mountable

Specifications

Network

Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10, 100, 1000, 2500, 5000 Mbit/s
Power over Ethernet (PoE): Yes
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Auto MDI/MDI-X: Yes
Cable types supported: Cat5e, Cat6, Cat6a
Chipset: Microsemi - PD69208T4, Microsemi - PD69200R

Features

Product colour: Grey
Housing material: Metal
Wall mountable: Yes
Maximum operating distance: 100 m

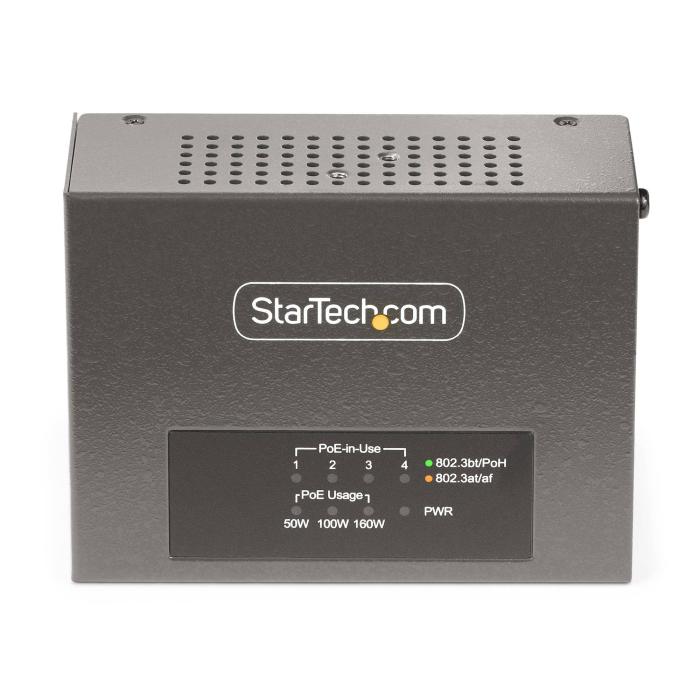

LED indicators: Status
Jumbo frames support: Yes
Jumbo frames: 9000

Ports & interfaces

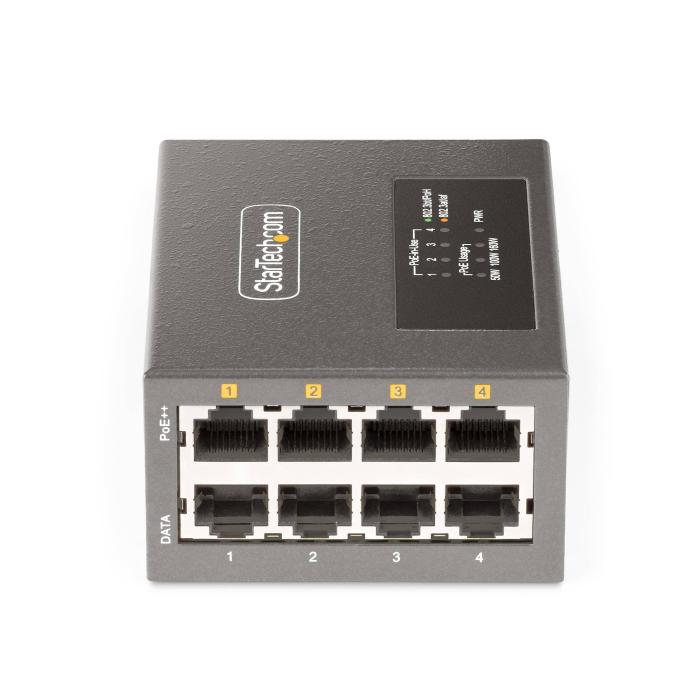

Ethernet LAN (RJ-45) ports: 8
RJ-45 input ports: 4
RJ-45 output ports: 4
DC-in jack: Yes

Power

AC adapter input voltage: 100 - 240 V
Input current: 2.5 A
AC adapter output voltage: 54 V
Output current: 3.3 A
Total Power over Ethernet (PoE) budget: 160 W

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), UKCA

Sustainability

Sustainability compliance: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -10 - 70 °C
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 70 mm
Depth: 94 mm
Height: 39 mm
Weight: 278 g

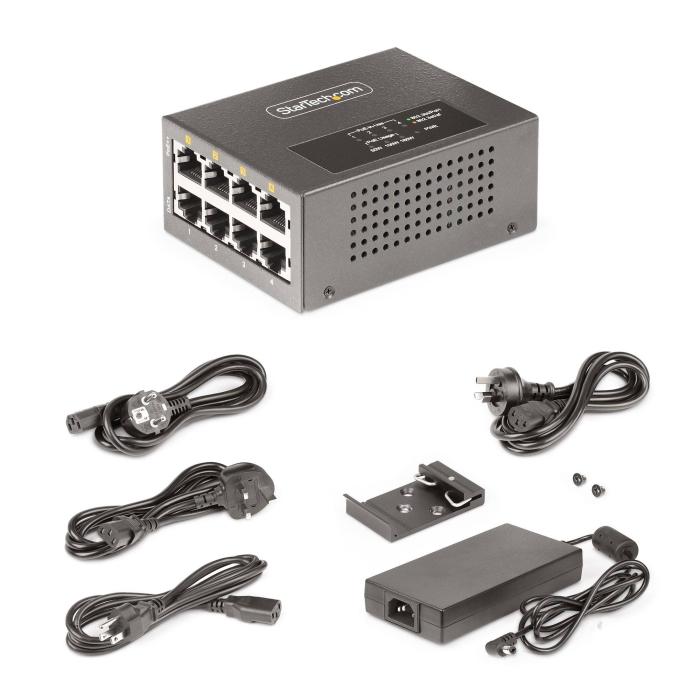

Packaging content

Number of products included: 1 pc(s)
AC adapter included: Yes
Quick installation guide: Yes

Packaging data

Package width: 170 mm
Package depth: 300 mm
Package height: 90 mm
Package weight: 1.7 kg

Logistics data

Master (outer) case width: 475 mm
Master (outer) case length: 370 mm
Master (outer) case height: 325 mm
Products per master (outer) case: 10 pc(s)
