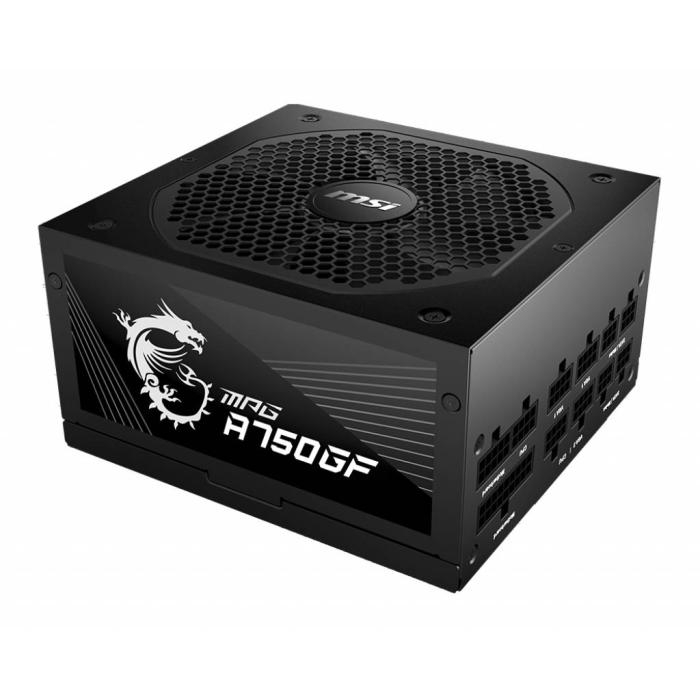

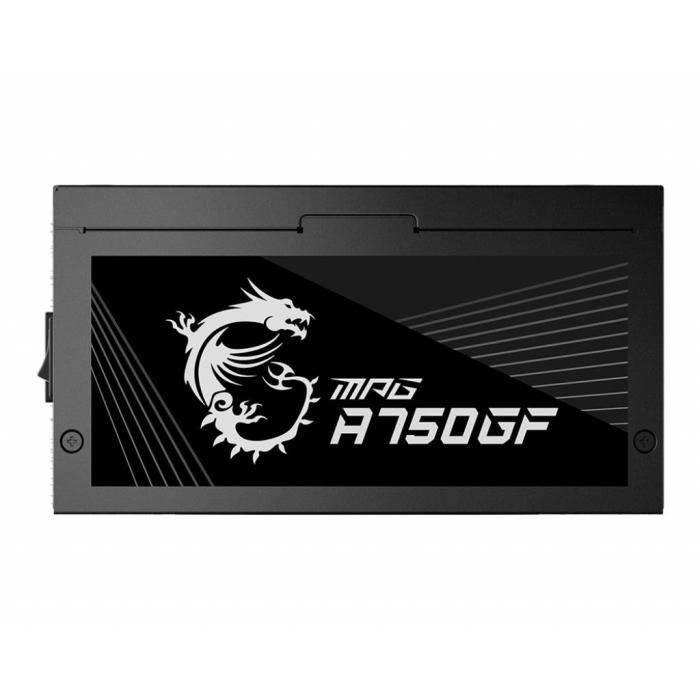

MSI MPG A750GF UK PSU '750W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'
More info
Brand: MSI
140.64 €Stock available: 0 units.
Unavailable
SKU:
129552
PRC:
304775
EAN:
4719072754266
PN:
306-7ZP0B11-CE0
Description
The MSI MPG-A750GF is a black ATX power supply unit with a total power output of 750 W and 90% efficiency. It features active power factor correction and supports an AC input voltage of 100 to 240 V, with an input frequency of 47 to 63 Hz and a maximum current draw of 10 A at 110 V and 5 A at 220 V. It distributes its load across several rails: +12 V1 and +12 V2 deliver up to 35 A each, while +12V, +3.3V and +5V offer 25 A, 22 A and 22 A respectively, with 120 W of combined power on +5 V and 3.3 V. The +5Vsb rail reaches 2.5 A and the -12V rail 0.3 A. Its dimensions are 150 x 86 x 160 mm (width x height x depth), a format that fits in conventional ATX cases. It includes protection against overcurrent, overvoltage, overvoltage, short circuit and undervoltage to safeguard the rest of the components.
Specifications
Power
- Total power: 750 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Maximum input current (@110V): 10 A
- Maximum input current (@220V): 5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 750 W
- Combined power (+5V): 120 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 25 A
- Max output current (+12V1): 35 A
- Max output current (+12V2): 35 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

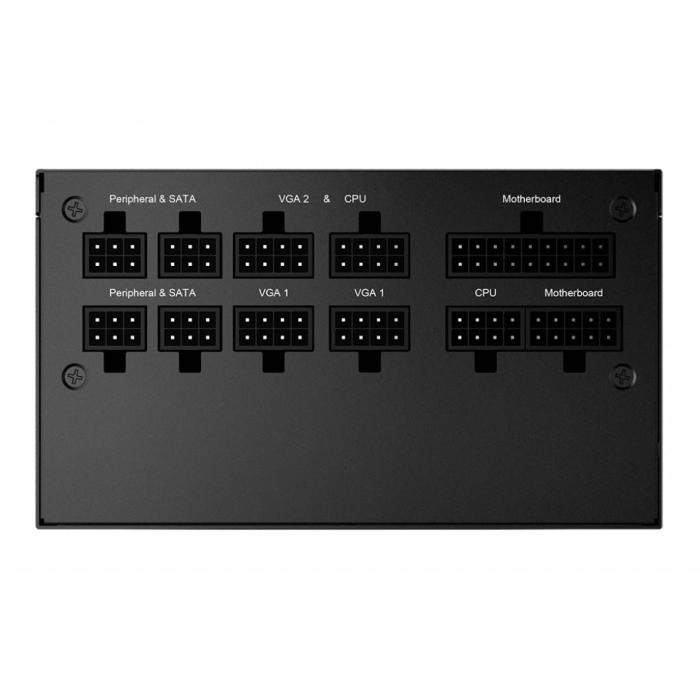

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 8
- SATA power cable length: 950 mm
- Peripheral (Molex) power connectors (4-pin): 5
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 6
- PCI Express power cable length: 50 cm
- ATX Power connector (24-pin): Yes
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 110 cm
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
Design
- Product colour: Black

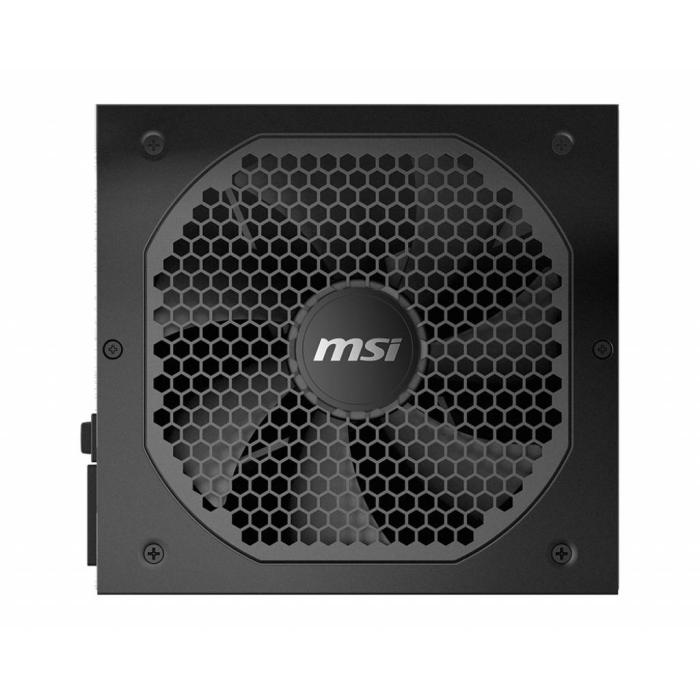

- Fan diameter: 14 cm
- Number of fans: 1 fan(s)

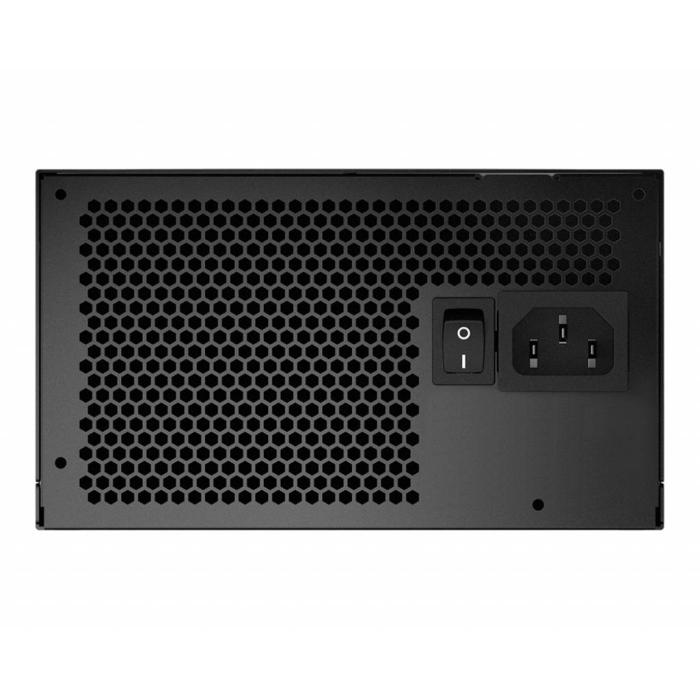

- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
Logistics data
- Harmonized System (HS) code: 84733020
