Description
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel Core 5
- Processor generation: Intel Core (Series 1)
- Processor model: 120U
- Processor cores: 10
- Processor threads: 12
- Processor boost frequency: 5 GHz
- Performance cores: 2
- Efficient cores: 8
- Performance-core Max Turbo Frequency: 5 GHz
- Efficient-core Max Turbo Frequency: 3.8 GHz
- Performance-core base frequency: 1.4 GHz
- Efficient-core base frequency: 0.9 GHz
- Processor cache: 12 MB
- Processor cache type: Smart Cache
- Number of processors supported: 1
- Processor base power: 15 W
- Maximum turbo power: 55 W
Memory
- Internal memory: 16 GB
- Maximum internal memory: 64 GB
- Internal memory type: DDR5-SDRAM
- Memory layout (slots x size): 2 x 8 GB
- Memory slots: 2x SO-DIMM
- Memory clock speed: 5200 MHz
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
Storage
- SSD interface: PCI Express 4.0
- NVMe: Yes
- SSD form factor: M.2
- M.2 SSD size: 2280 (22 x 80 mm)
- Card reader integrated: No
- Total storage capacity: 512 GB
- Storage media: SSD
- Optical drive type: No
- Total SSDs capacity: 512 GB
- Number of SSDs installed: 1
- SSD capacity: 512 GB
Graphics
- Discrete graphics card: No
- On-board graphics card: Yes
- Discrete graphics card model: Not available
- On-board GPU manufacturer: Intel
- On-board graphics card family: Intel® Graphics
- On-board graphics card model: Intel® Graphics
Network
- Ethernet LAN: Yes
- LAN controller: Intel I226-V
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- WLAN controller model: Intel Wi-Fi 6E AX211
- Bluetooth: Yes
- Bluetooth version: 5.3

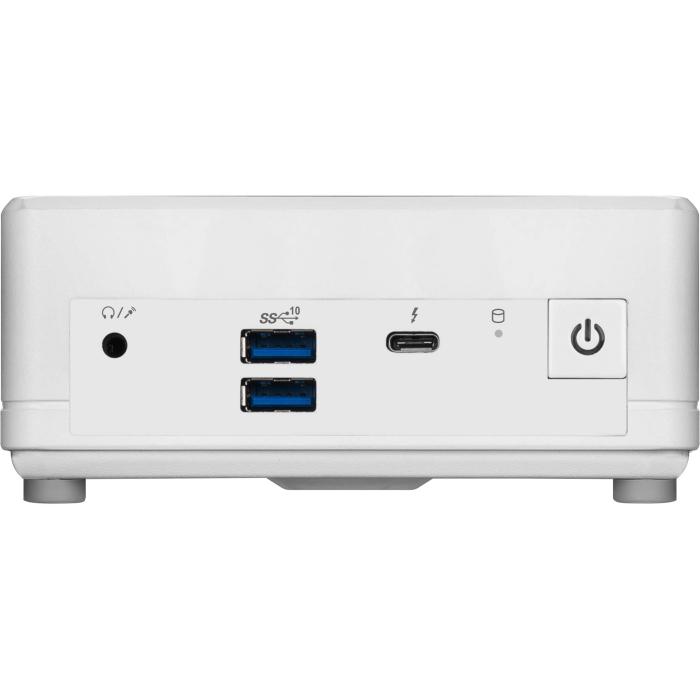

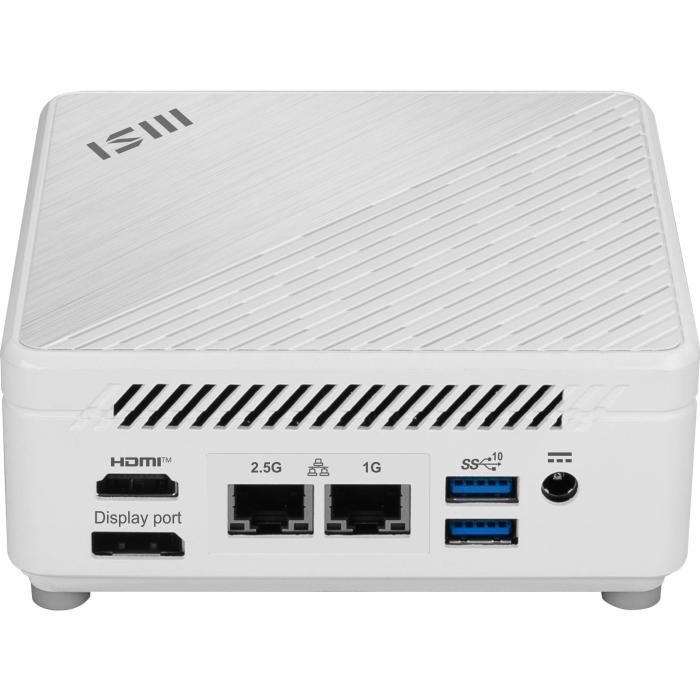

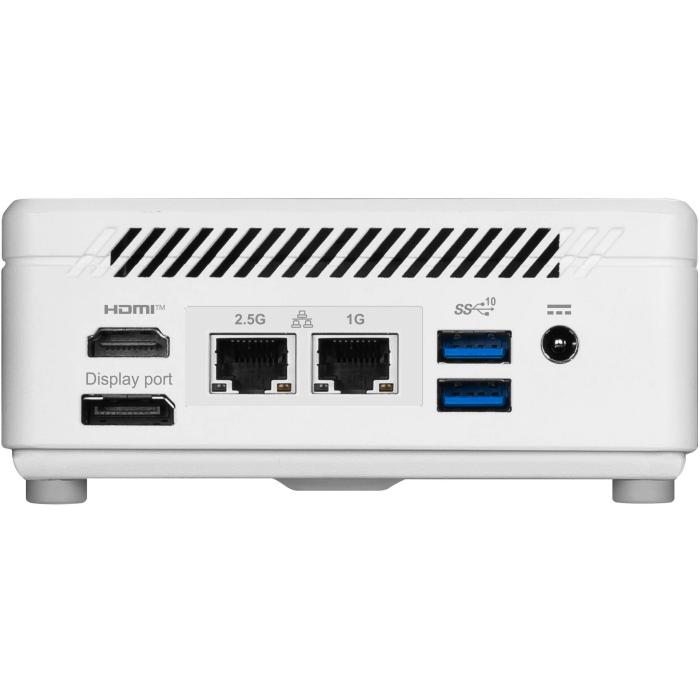

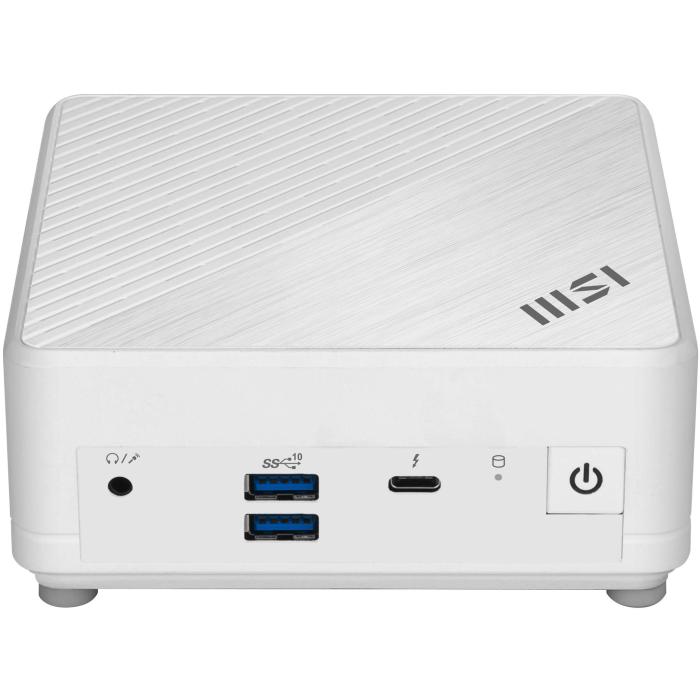

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Intel® Thunderbolt 4: Yes
- Thunderbolt 4 ports quantity: 2
- DVI port: No
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Ethernet LAN (RJ-45) ports: 2
- Microphone in: No
- Combo headphone/mic port: Yes
- DC-in jack: Yes
Design
- Chassis type: Mini PC
- VESA mounting: Yes
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Product colour: White
- Housing material: Plastic
Performance
- Motherboard chipset: Intel SoC
- Motherboard form factor: NUC
- Audio chip: Realtek ALC256
- Built-in speaker(s): No
- Trusted Platform Module (TPM): Yes
- Product type: Mini PC
- Trusted Platform Module (TPM) version: 2.0
Software
- Operating system installed: Windows 11 Pro
Power
- Power supply: 120 W
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 85%
- Storage relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 124 mm
- Depth: 124 mm
- Height: 53.7 mm
- Weight: 590 g
- Package width: 221 mm
- Package depth: 506 mm
- Package height: 469 mm
- Package weight: 1.33 kg
Packaging content
- Mouse included: No
- Keyboard included: No
- AC adapter included: Yes
- Power cord included: Yes
Display
- Display included: No
Other features
- Panel mounting interface: 100 x 100 mm
- Graphics card family: Intel
- Cooling type: Active
- Number of displays supported: 4
- Number of M.2 (M) slots: 2
- Warranty period: 3 year(s)
