Description

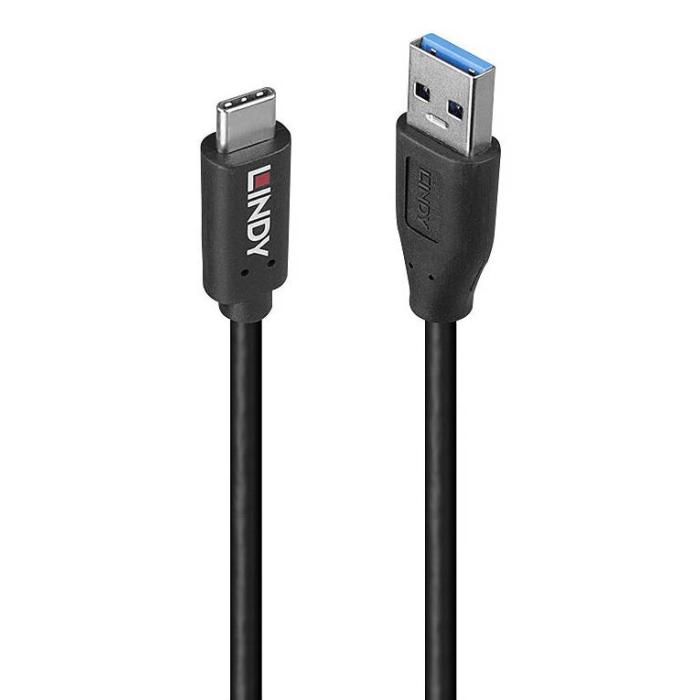

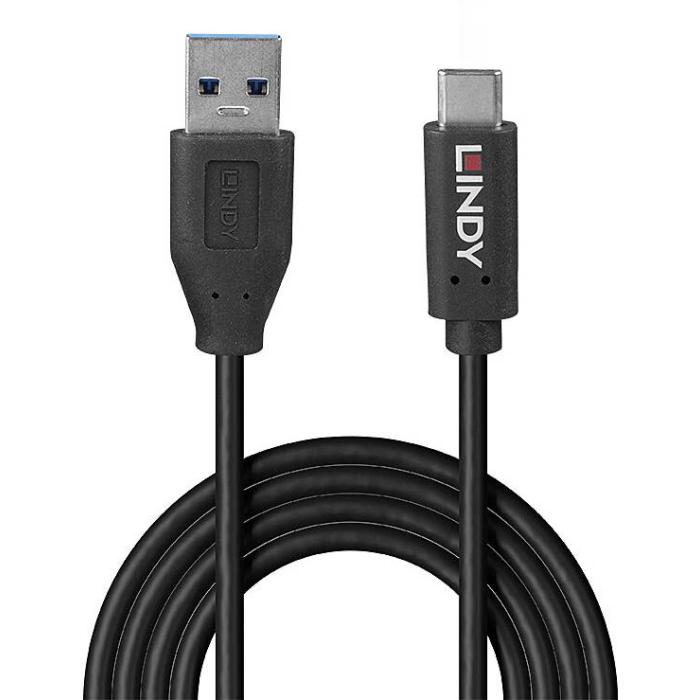

1 m black USB cable with male USB A and USB C connectors, both straight, conforming to the USB 3.2 Gen 2 (3.1 Gen 2) specification to achieve a maximum transfer rate of 10 Gbit/s. Its copper conductors with 24/32 gauge and connector shielding ensure stable transmission, with a nominal attenuation of -12.2 dB at 5G and -18.3 dB at 10G. This model supports USB Power Delivery up to 15 W, and its thermoplastic elastomer (TPE) outer jacket along with nickel-plated contacts offer durability. With a round form factor and Plug and Play functionality, it requires no driver installation.
Specifications
Features
- USB version: USB 3.2 Gen 2 (3.1 Gen 2)
- Connector 1: USB A
- Connector 2: USB C
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- AWG wire size: 24/32
- Connector contacts plating: Nickel
- Cable jacket material: Thermoplastic elastomer (TPE)
- Conductor material: Copper
- Connector shielding: Yes
- Maximum data transfer rate: 10 Gbit/s
- Product colour: Black
- Cable type: Round cable
- Plug and Play: Yes
- USB Power Delivery up to: 15 W
- Nominal attenuation: 12. 2dB@5G, -18. 3dB@10G
Weight & dimensions
- Cable length: 1 m
- Cable diameter: 4.5 mm
- Bend radius (min): 4.5 cm
- Connector 1 dimensions (WxDxH): 28.1 x 16 x 9 mm
- Connector 2 dimensions (WxDxH): 24.8 x 12 x 7.25 mm
Packaging data
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
Sustainability
- Sustainability certificates: Global Recycled Standard (GRS)
Operational conditions
- Operating temperature (T-T): -10 - 60 °C
- Storage temperature (T-T): -20 - 80 °C
Certificates
- Compliance certificates: RoHS, REACH, UL
