Description

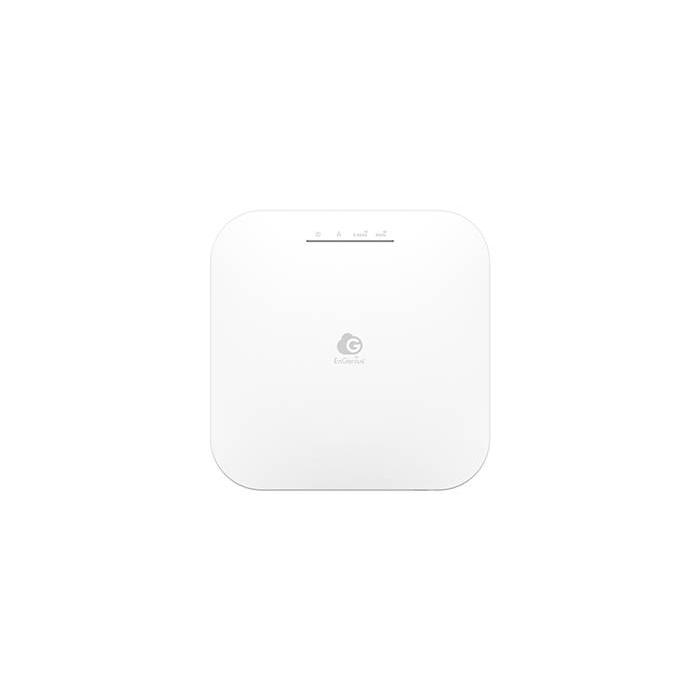

The EnGenius ECW220 is a white wireless access point measuring 160 x 33.2 x 160 mm and weighing 382 g. It offers a maximum data transfer rate of 1200 Mbit/s, with 574 Mbit/s on the 2.4 GHz band and 1200 Mbit/s on the 5 GHz band. It operates on the 2.4 to 2.482 GHz frequency bands and on the various 5 GHz ranges, and supports MIMO and Multi User MIMO to manage several connections at once. It incorporates 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK and QPSK modulations, and combines the spread spectrum methods OFDMA, DSSS and OFDM. As for the network, it has Ethernet LAN at speeds of 10, 100 and 1000 Mbit/s, VLAN support with Tagged VLAN and QoS quality of service. Its transmission power is 20 dBmW and it adds Wi-Fi Multimedia (WMM/WME). Fit AP mode adds mesh networking, and power is supplied via Power over Ethernet (PoE), which simplifies ceiling or wall installation.
Specifications
Features
- Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
- Fit AP mode features: Mesh networking
- Wi-Fi Multimedia (WMM)/(WME): Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN
- Quality of Service (QoS) support: Yes
- Transmitting power: 20 dBmW
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 1200 Mbit/s
- Maximum data transfer rate (2.4 GHz): 574 Mbit/s
- Maximum data transfer rate (5 GHz): 1200 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE
- MIMO: Yes
- MIMO type: Multi User MIMO
- Spread spectrum method: OFDMA, DSSS, OFDM
Security
- Security algorithms: WPA3, SSH, WPA2-AES, WPA2-PSK
- MAC address filtering: Yes
- Service Set Identifier (SSID) features: Multiple SSIDs
- Number of SSID supported: 8
Protocols
- Management protocols: SNMP
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- Power consumption (max): 12.8 W
Design
- Placement: Ceiling, Wall
- Product colour: White
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Reset button: Yes
- LED indicators: Yes
Antenna
- Antenna type: Internal
- Antenna direction type: Omni-directional
- Antenna features: Integrated antenna
- Antennas quantity: 4
- Antenna gain level (max): 3 dBi
Certificates
- Certification: FCC, CE, IC
Weight & dimensions
- Width: 160 mm
- Depth: 160 mm
- Height: 33.2 mm
- Weight: 382 g
Packaging content
- AC adapter included: Yes
- Mounting kit: Yes
- Quick start guide: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 80 °C
Logistics data
- Harmonized System (HS) code: 85176990
