Description

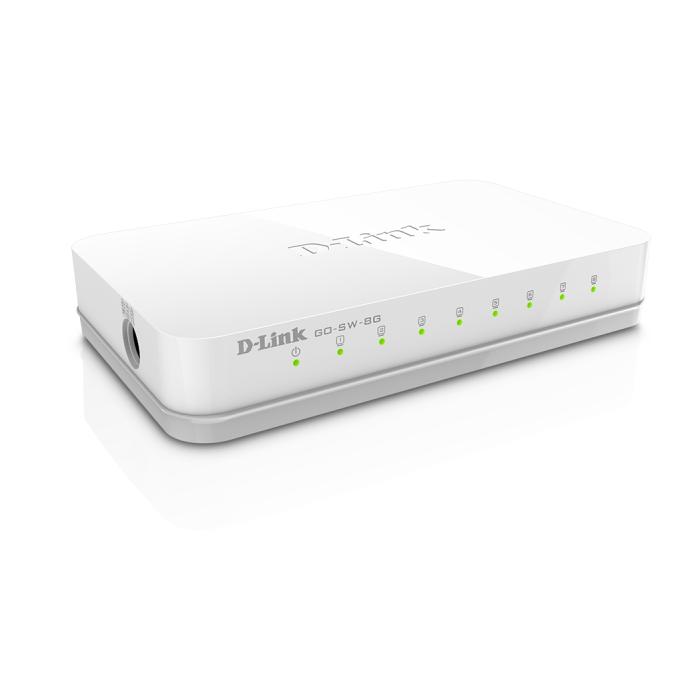

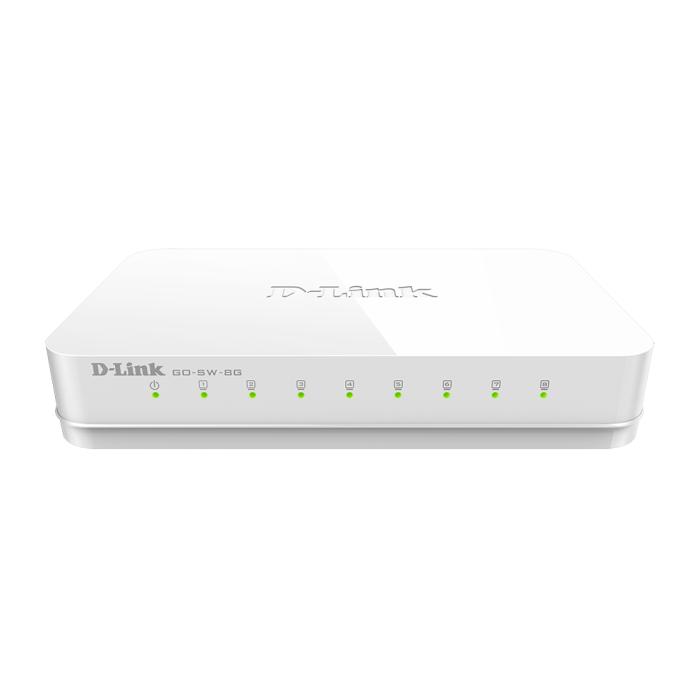

The D-Link GO-SW-8G switch is an unmanaged white device that expands your local network with eight RJ-45 Ethernet ports. It reaches transfer speeds of 10, 100 and 1000 Mbit/s and a maximum rate of 1 Gbit/s, with a switching capacity of 16 Gbit/s. It incorporates 10BASE-T, 100BASE-TX and 1000BASE-T cabling technology, as well as auto MDI/MDI-X and full duplex transmission to adapt each connection automatically. Its store-and-forward operation, together with flow control and Jumbo Frames support, speeds up data traffic. It has a MAC address table of 8000 entries and MAC address filtering, with LED indicators that show the status of the device. Power is supplied via a DC input jack. Its dimensions are 128 x 25.4 x 68.5 mm (width x height x depth), with a weight of 195 g, and it complies with the IEEE 802.3, 802.3ab, 802.3az, 802.3u and 802.3x standards.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8

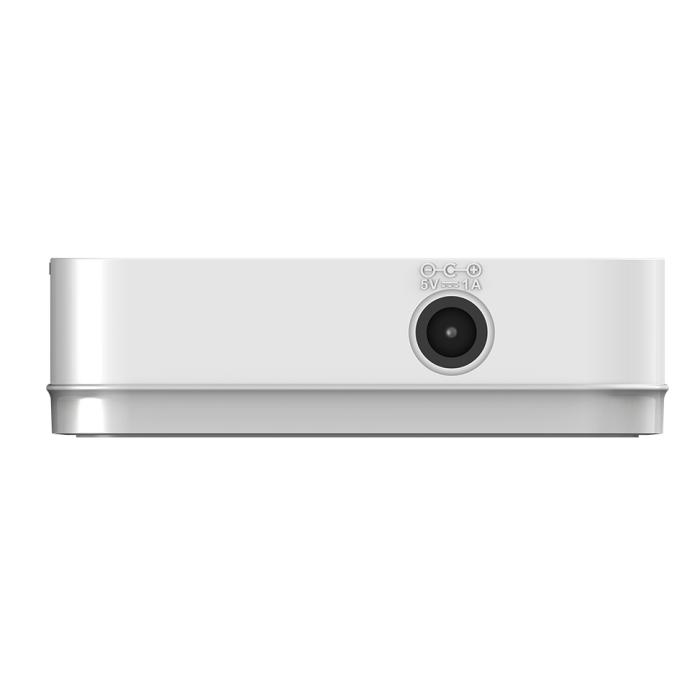

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transmission
- Supported data transfer rates: 10, 20, 100, 200, 1000, 2000 Mbps
- Switching capacity: 16 Gbit/s
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Maximum data transfer rate: 1 Gbit/s
- Jumbo frames support: Yes
- Packet buffer memory: 0.125 MB
Security
- MAC address filtering: Yes
Design
- Rack mounting: No
- Product colour: White
- LED indicators: Yes
Performance
- Mean time between failures (MTBF): 412433 h
Power
- Power consumption (typical): 3.9 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Other features
- Connectivity technology: Wired
- Wi-Fi: No
- Power LED: Yes
- Ethernet LAN: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 128 mm
- Depth: 68.5 mm
- Height: 25.4 mm
- Weight: 195 g
Packaging content
- User guide: Yes
- Manual: Yes
Certificates
- Certification: FCC, ICES, CE, C-tick, VCCI, cUL/UL, CCC, LVD
