Description
Specifications
Power
- Total power: 1000 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 12 - 6 A
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 1000 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 83.33 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 90%
- Power protection features: No load operation, Over current, Over power, Over total voltage, Over voltage, Short circuit, Surge & inrush protection (SIP), U

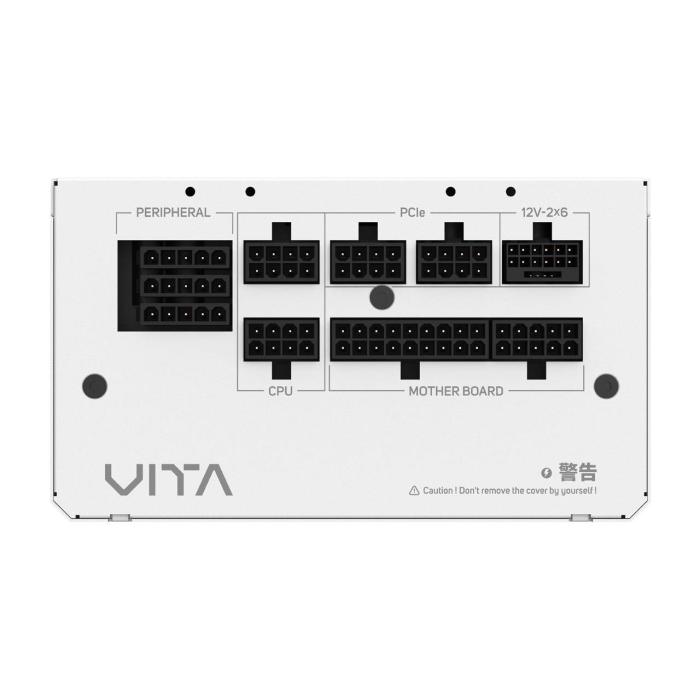

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 6
- SATA power cable length: 500, 810, 965, 655 mm
- Number of SATA power cables: 2
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 810, 965 mm
- PCI Express power connectors (6+2 pin): 4
- PCI Express power connectors (12+4 pin): 1
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 70 cm
- PCI Express connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- EPS version: 2.92
- Bearing technology: Hydraulic
Design
- Product colour: White
- Cooling type: Active
- Fan diameter: 12 cm
- On/off switch: Yes
Packaging content
- Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
