Description

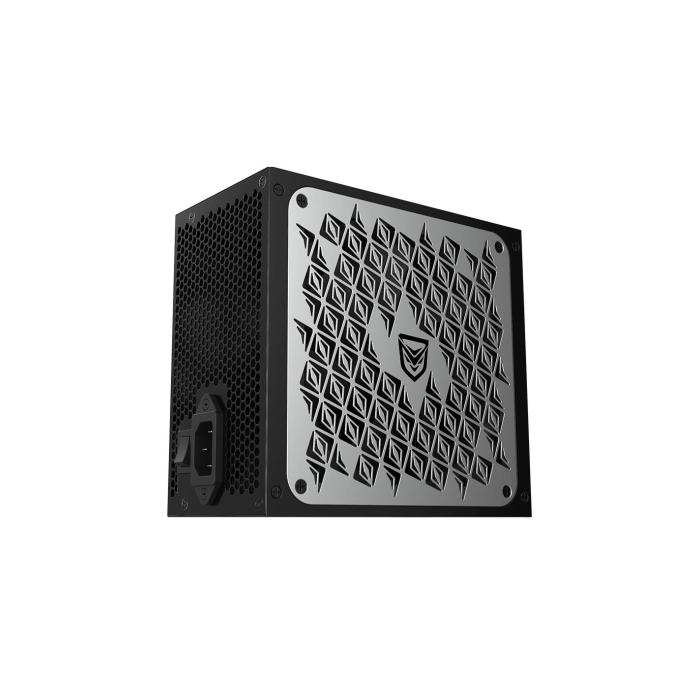

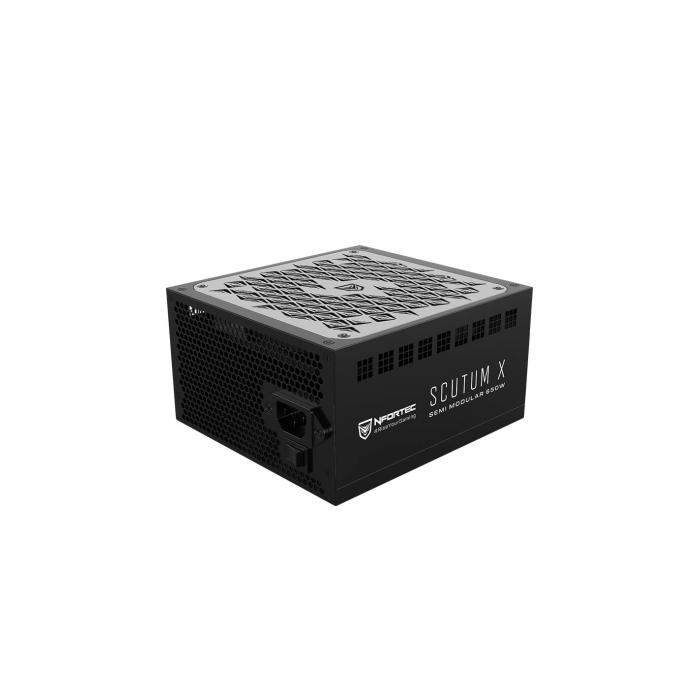

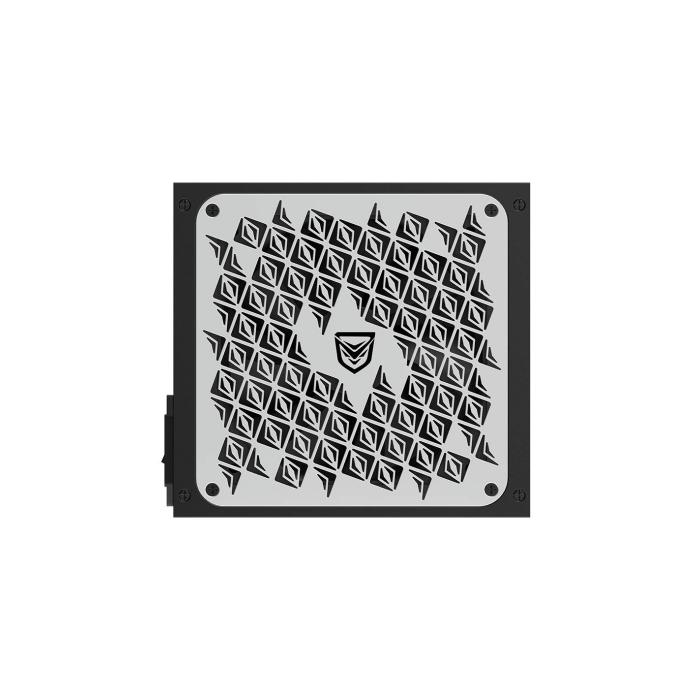

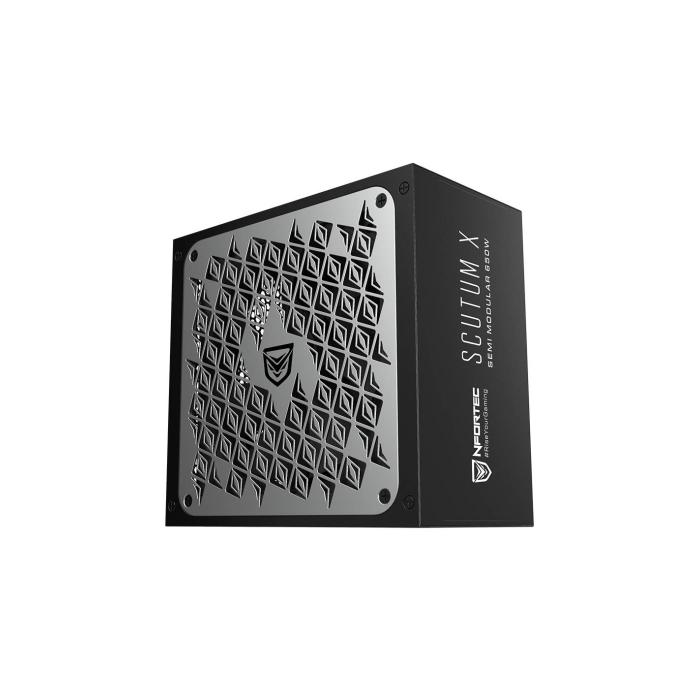

The Nfortec Scutum X power supply unit, in its black 650 W version, delivers a total power of 650 W with 85% efficiency and a main 20+4 pin connector compatible with ATX motherboards. Its cabling is semi-modular, which facilitates cable management by allowing only the necessary cables to be connected, and it includes a connector for a floppy disk drive. It operates with an input voltage of 200-240 V AC and an input current of 5 A, offering a maximum output current of 49 A on the +12 V rail, with a combined power of 588 W on that rail.
Specifications
Power
- Total power: 650 W
- AC input voltage: 200 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 5 A
- Combined power (+3.3V): 90 W
- Combined power (+12V): 588 W
- Combined power (+5V): 90 W
- Combined power (-12V): 18.5 W
- Combined power (+5Vsb): 18.5 W
- Max output current (+3.3V): 15 A
- Max output current (+12V): 49 A
- Max output current (+5V): 15 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 85%
- Power protection features: Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 5
- SATA power cable length: 450 mm
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 450 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 2
- PCI Express power cable length: 50 cm
- ATX power connector (20+4 pin): Yes
- Floppy disk drive connector: Yes
- PCI Express connector: Yes
- Cabling type: Semi-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Packaging content
- Cables included: AC
Weight & dimensions
- Width: 153 mm
- Depth: 160 mm
- Height: 81 mm
- Weight: 1.65 kg
