Allied Telesis 2914SP Internal Fiber 1000 Mbit/s
More info
Brand: ALLIED TELESIS
221.35 €Stock available: 0 units
Similar products
Allied Telesis 2914SX/LC Internal Fiber 1000 Mbit/s
344.47 €
Allied Telesis AT-SP10SR network transceiver module Fiber optic 10300 Mbit/s SFP+ 850 nm
206.89 €
Allied Telesis AT-PWR600-B51 network switch component Power supply
1,649.06 €
Allied Telesis AT-IMC2000T/SP-980 network media converter 1000 Mbit/s 850 nm Grey
603.58 €
LevelOne Gigabit Fiber PCIe Network Card, 1 x SFP
83.36 €
Allied Telesis AT-MMC2000LX/LC-TAA-60 network media converter 1000 Mbit/s 1310 nm Single-mode Grey
467,00 €
Allied Telesis AT-SP10LRA/I network transceiver module Fiber optic 10000 Mbit/s SFP+
975.17 €
QNAP QXG-25G2SF-E810 network card Internal Fiber 25000 Mbit/s
493.11 €
Allied Telesis AT-MMC2000/LC-960 network media converter 1000 Mbit/s 1310 nm Multi-mode Grey
367.57 €
Allied Telesis AT-SPLX10/I network media converter 1250 Mbit/s 1310 nm
168.72 €
Description

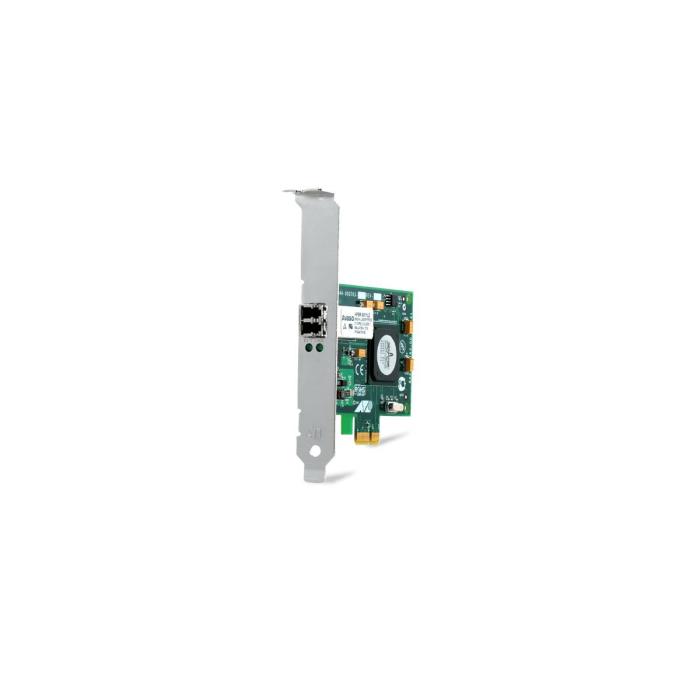

The Allied Telesis 2914SP network card is an internal fibre adapter for devices with a PCI Express slot. It offers a fibre channel port with SFP connector and a maximum data transfer rate of 1000 Mbit/s, with support for Ethernet LAN at 100 and 1000 Mbit/s and auto-negotiation. It includes automatic load control, quality of service (QoS) and Jumbo frames of up to 9600, as well as complying with network standards such as IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x and IEEE 802.3z. Its wired connection is made through the fibre interface, and the output voltage is 3.3 V. It features LED indicators and certifications UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK and VCCI. Weighing 68 g, it is designed to expand network connectivity in compatible devices.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Fiber
- Fiber ports quantity: 1
- Fiber optic connector: SFP
Network
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
- Ethernet LAN data rates: 100, 1000 Mbit/s
- Wake-on-LAN ready: Yes
- Jumbo frames support: Yes
- Auto-negotiation: Yes
- Jumbo frames: 9600
- Quality of Service (QoS) support: Yes
- Load balancing system: Yes
Design
- Internal: Yes
- LED indicators: Yes
- Certification: UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
Power
- Output voltage: 3.3 V
System requirements
- Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows Vista
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 88 mm
- Height: 69 mm
- Weight: 68 g
Packaging data
- Low-profile bracket: Yes
- Quantity per pack: 1 pc(s)
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Flow control support: Yes
- Priority queuing supported: Yes
