Description

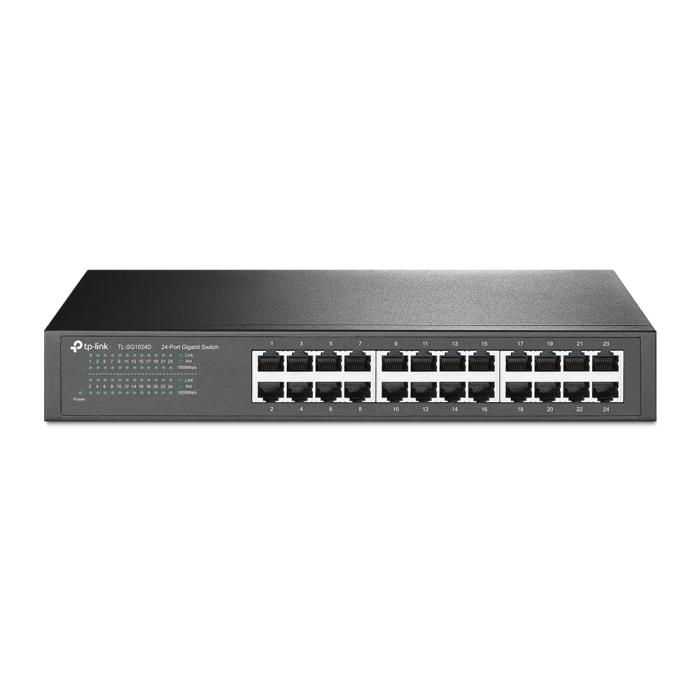

TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Supported data transfer rates: 10/100/100 Mbps
- Switching capacity: 48 Gbit/s
- Forwarding rate: 35.7 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Maximum data transfer rate: 1 Gbit/s
- Jumbo frames support: Yes
- Jumbo frames: 10000
Protocols
- Supported network protocols: CSMA/CD, TCP/IP
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Grey
- LED indicators: Yes
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 13.62 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Other features
- Dimensions (WxDxH): 294 x 180 x 44 mm
- Connectivity technology: Wired
- Bandwidth: 48 Gbit/s
- Power requirements: 100 - 240V, 50/60Hz
- Networking features: Gigabit Ethernet
- Connectivity LEDs: Yes
Operational conditions
- Operating temperature (T-T): 32 - 104 °F
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 46.44 BTU/h
Weight & dimensions
- Width: 294 mm
- Depth: 180 mm
- Height: 44 mm
Packaging content
- Cables included: AC
- User guide: Yes
- Rack mount kit: Yes
Packaging data
- Package type: Box
- Package width: 250 mm
- Package depth: 400 mm
- Package height: 80 mm
- Package weight: 1.95 kg
Certificates
- Certification: FCC, CE, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
