Description

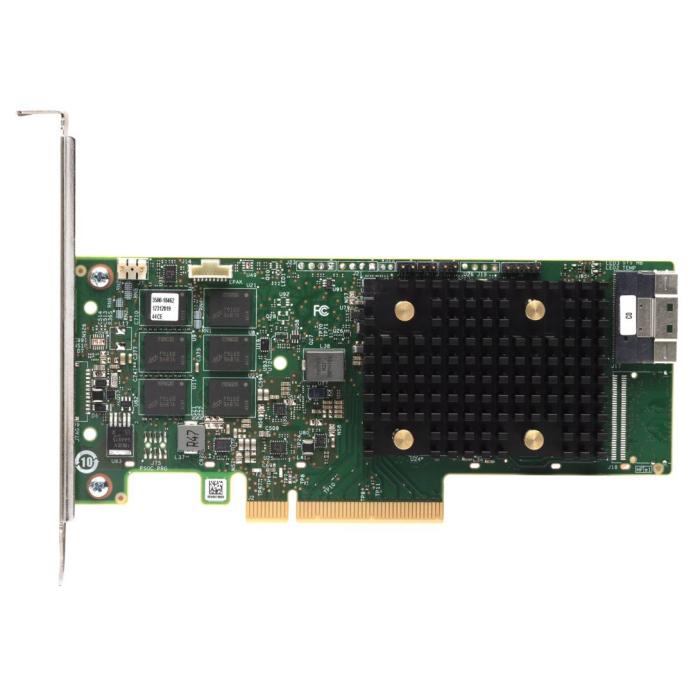

Lenovo RAID controller with PCI Express x8 4.0 host interface and 12 Gbit/s transfer rate, designed for servers handling SAS or SATA drives in complex configurations. It offers eight internal SAS ports and another eight internal SATA ports, with support for RAID levels 0, 1, 5, 6, 10, 50, 60 and JBOD mode, as well as S.M.A.R.T. compatibility to monitor drive health. The Broadcom SAS3908 chipset manages operations efficiently, facilitating drive expansion or replacement without system downtime. Integrate this card into your rack to centralise storage with flexible redundancy and capacity options.
Specifications
Ports & interfaces
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x8
- PCI Express slots version: 4.0
- Internal SAS ports: 8
- Internal SATA ports quantity: 8
Performance
- RAID levels: 0, 1, 5, 6, 10, 50, 60, JBOD
- Data transfer rate: 12 Gbit/s
- Chipset: Broadcom SAS3908
- JBOD function: Yes
- S.M.A.R.T. support: Yes
Logistics data
- Harmonized System (HS) code: 84733080
