Description

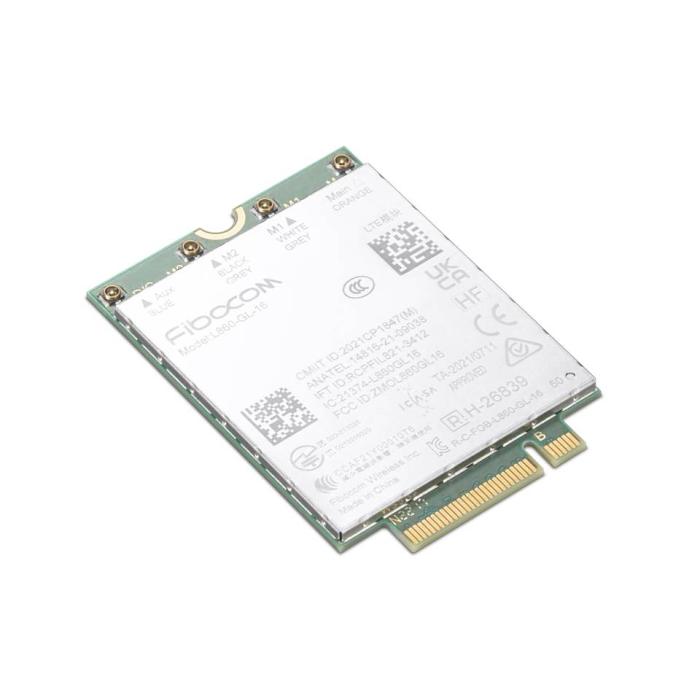

The Lenovo 4XC1M72794 network adapter and card is an internal WWAN module with an M.2 interface, designed specifically for laptops requiring 4G connectivity. It achieves a data transfer rate of up to 1000 Mbit/s, with support for LTE-TDD, LTE-FDD, HSPA+ and WCDMA standards, and includes MU-MIMO technology and an internal antenna. This component, weighing 6.2 g and with a height of 2.3 mm, runs on Windows 11 and operates in a temperature range of -10 to 55 °C, with storage between -40 and 85 °C, and a relative operating humidity of 5% to 95%. Additionally, it carries CE, KCC, IFT, NTC, ICASA and NCC certifications, and is compatible with systems requiring a stable mobile connection.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: M.2
- Interface: WWAN
Network
- Maximum data transfer rate: 1000 Mbit/s
- 3G standards: HSPA+, WCDMA
- 4G standard: LTE-TDD & LTE-FDD
- Mobile network generation: 4G
- MU-MIMO: Yes
Design
- Component for: Laptop
- Internal: Yes
- Antenna design: Internal
- Certification: CE for EU KCC for Korea IFT for Mexico NTC for Philippines ICASA for South Africa NCC for Taiwan.
System requirements
- Windows operating systems supported: Windows 11
Operational conditions
- Operating temperature (T-T): -10 - 55 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 30 mm
- Depth: 42 mm
- Height: 2.3 mm
- Weight: 6.2 g
Packaging data
- Package width: 53 mm
- Package depth: 144 mm
- Package height: 177 mm
- Package weight: 30 g
