Description
Specifications
Power
- Total power: 650 W
- Peak power: 720 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Maximum input current (@110V): 10 A
- Maximum input current (@220V): 5 A
- Power factor: 0.98
- Power Factor Correction (PFC) type: Active
- Number of +12V rail(s): 1
- Combined power (+3.3V): 120 W
- Combined power (+12V): 650 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V1): 54.1 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Hold time: 22.5 ms
- Efficiency: 92.8%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

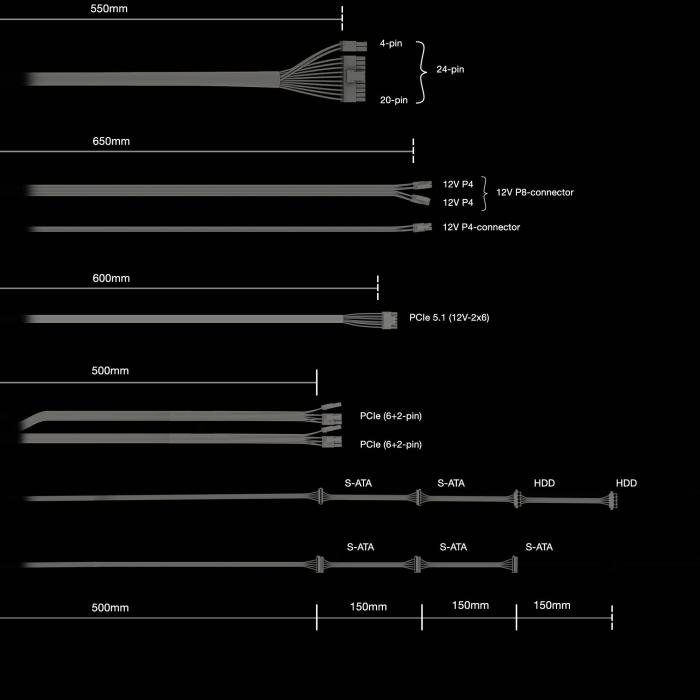

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 5
- SATA power cable length: 500, 650, 800 mm
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 800, 950 mm
- PCI Express power connectors (6+2 pin): 2
- PCI Express power connectors (12-pin): 1
- CPU P4 connector (4-pin): 3
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 65 cm
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- EPS version: 2.92

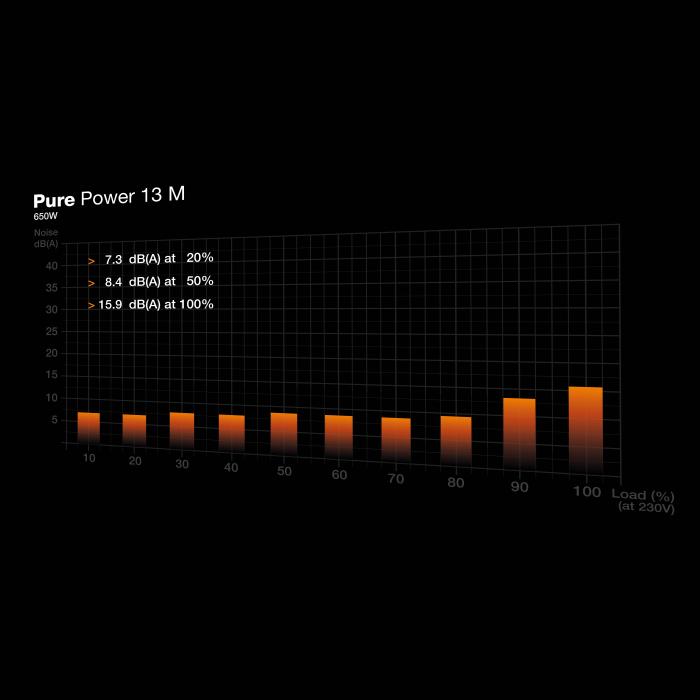

- Noise level: 30.2 dB
- Bearing technology: Rifle
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan speed: 0 - 1800 RPM
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content

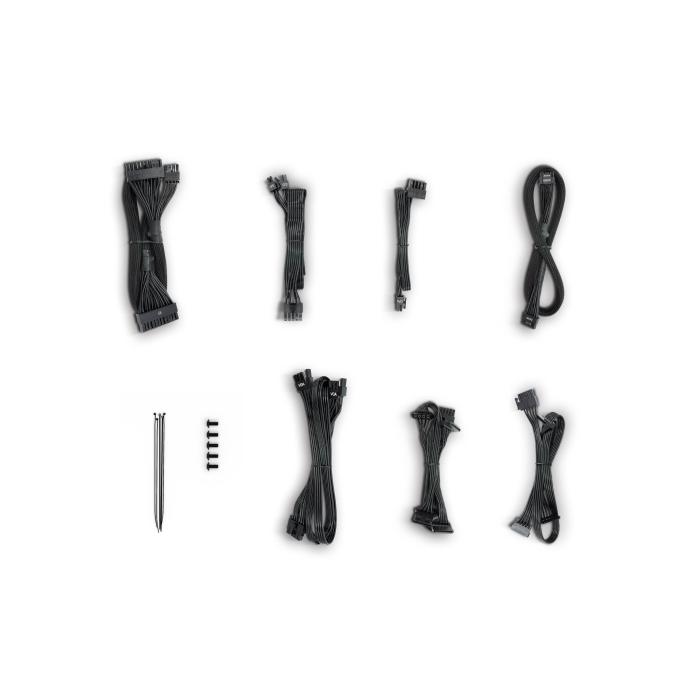

- Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Certificates
- Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
- Weight: 2.32 kg
Packaging data
- Package width: 210 mm
- Package depth: 320 mm
- Package height: 133 mm
- Package weight: 3.1 kg
Technical details
- Sustainability certificates: ENERGY STAR, ErP
Logistics data
- Shipping (inner) case length: 58 cm
- Shipping (inner) case width: 32.5 cm
- Shipping (inner) case height: 23.3 cm
- Products per shipping (inner) case: 6 pc(s)
- Shipping (inner) case gross weight: 20.9 kg
Other features
- Screws included: Yes
- Cable ties included: Yes
