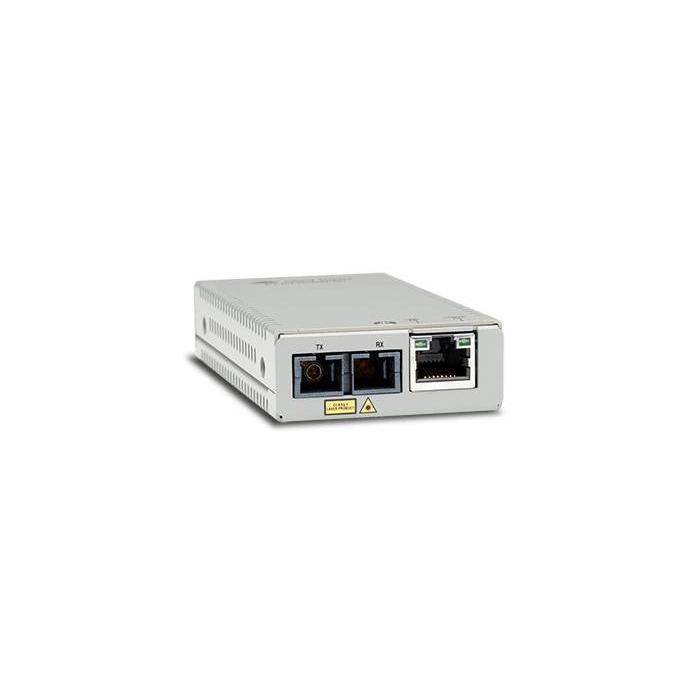

Allied Telesis AT-MMC200LX/SC-TAA-60 network media converter 100 Mbit/s 1310 nm Grey
More info
Brand: ALLIED TELESIS
258.84 €
SKU:
86937
PRC:
309051
EAN:
767035216416
PN:
990-006322-60
Description
Allied Telesis AT-MMC200LX/SC-TAA-60, 100 Mbit/s, 10Base-T, 100Base-T, 100Base-LX, IEEE 802.1Q, Gigabit Ethernet, 10,100 Mbit/s
Specifications
Network
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 10Base-T, 100Base-T
- Converter output interface: 100Base-LX
- Networking standards: IEEE 802.1Q
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100 Mbit/s
- Fiber ethernet cabling technology: 100BASE-LX
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet forwarding rate (100 Mbps): 148880 pps
- Packet forwarding rate (1 Gbps): 1488000 pps
- Jumbo frames support: Yes
- Jumbo frames: 10000
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Store-and-forward: Yes
- Duplex system: Full
Performance
- Maximum transfer distance: 20000 m
- Wavelength: 1310 nm
- Fiber cable diameters supported (core/cladding): 9/125 µm
- Tx power (min): -15 dBmW
- Tx power (max): -5 dBmW
- Rx power (min): -32 dBmW
- Rx power (max): -34 dBmW
Features
- Internal: No
- LED indicators: Yes
- Product colour: Grey
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 2
- Fiber optic connector: SC
- DC-in jack: Yes
Power
- Input voltage: 12 V
- Input current: 0.14 A
Weight & dimensions
- Width: 56 mm
- Depth: 101.6 mm
- Height: 21.8 mm
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
Packaging content
- AC adapter included: Yes
Certificates
- Safety: UL60950-1, EN60950-1
