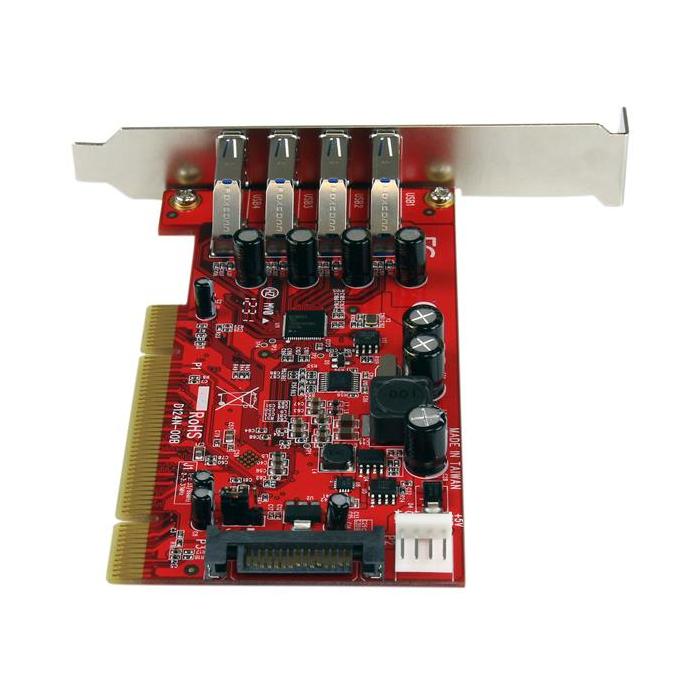

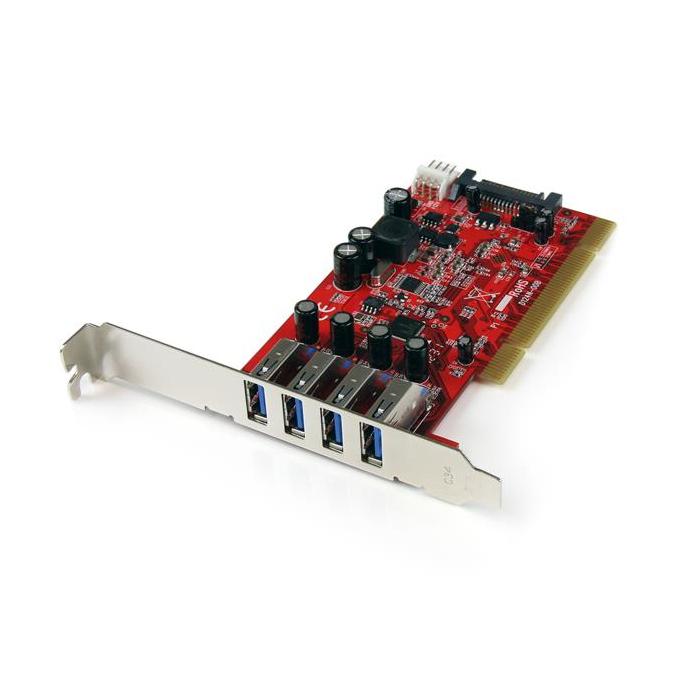

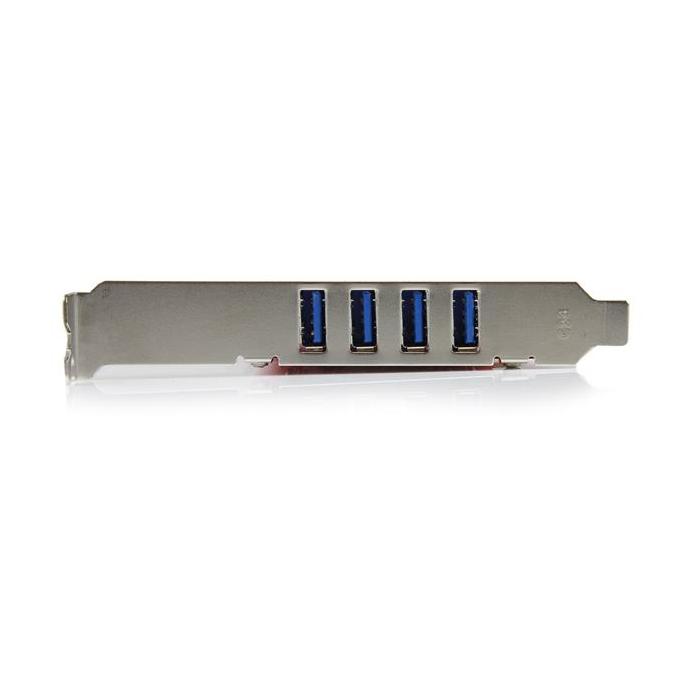

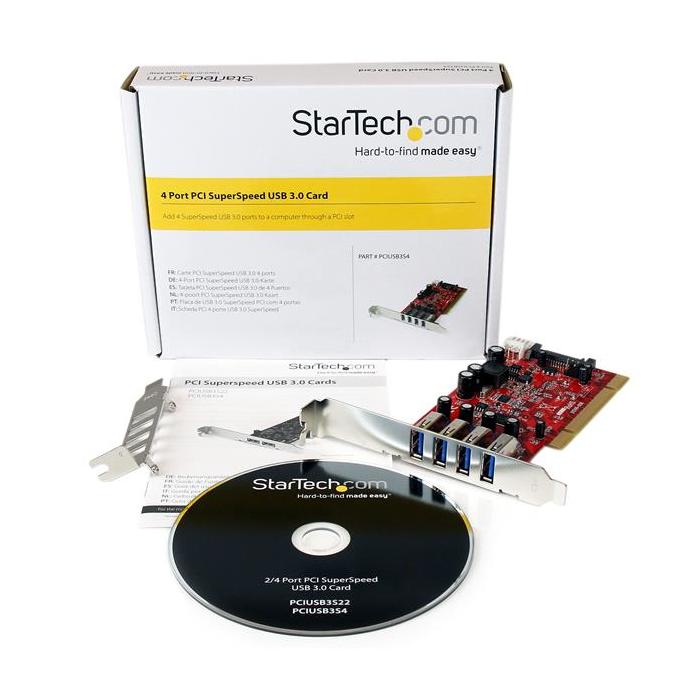

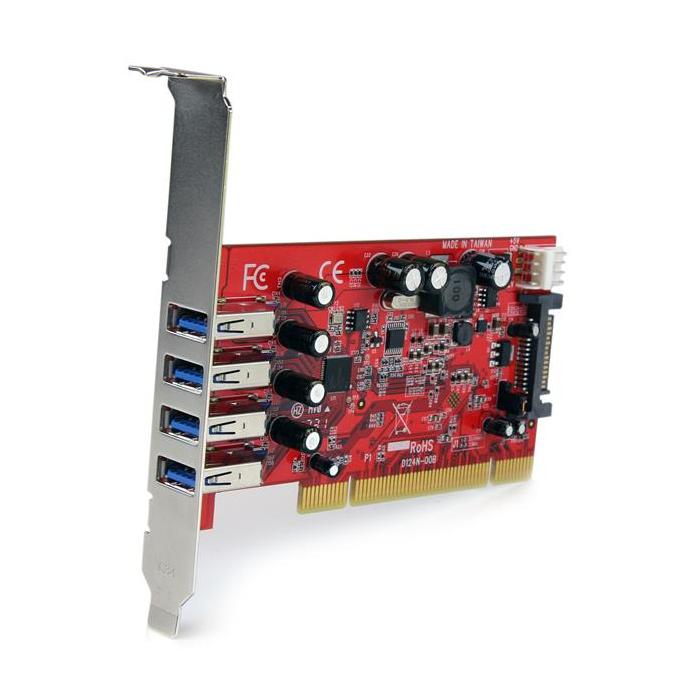

StarTech.com 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA / SP4 Power
More info
Brand: STARTECH.COM
84.03 €
67.22 €
without VAT
Stock available: 4 units.
Get it
on the
September 25
/
September 29
SKU:
75009
PRC:
75053
EAN:
650308495178
PN:
PCIUSB3S4
Description
The StarTech.com PCI USB 3.0 adapter card adds four USB Type-A ports to your computer via an internal PCI connection. It offers a maximum data transfer rate of 5 Gbit/s thanks to its Renesas/NEC µPD720202 chipset and supports UASP to optimise performance with compatible devices. It also features an internal SATA port and its output interface is USB 3.2 Gen 1. It is red in colour and its dimensions are 20 x 65 x 133 mm (width x height x depth), with a weight of 72 g, so it integrates easily into the computer case. It operates within an operating temperature range of 5 to 50 °C and supports a relative humidity of between 15 and 90%. It has CE, FCC, TAA and REACH certification, and complies with the RoHS directive.
Specifications
Ports & interfaces
- Host interface: PCI
- Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Internal SATA ports quantity: 1
Design
- Internal: Yes
- Product colour: Red
- Certification: CE, FCC, TAA, REACH
Features
- Chipset: Renesas/NEC - µPD720202
- Data transfer rate (max): 5 Gbit/s
- UASP support: Yes
Operational conditions
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 15 - 90%
System requirements
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Ho
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 20
Technical details
- Compliance certificates: RoHS
Weight & dimensions
- Width: 20 mm
- Depth: 133 mm
- Height: 65 mm
- Weight: 72 g
Packaging data
- Mounting brackets included: Yes
- Drivers included: Yes
- Manual: Yes
- Package width: 175 mm
- Package depth: 145 mm
- Package height: 33 mm
- Package weight: 165 g
Logistics data
- Harmonized System (HS) code: 84733020
