Description

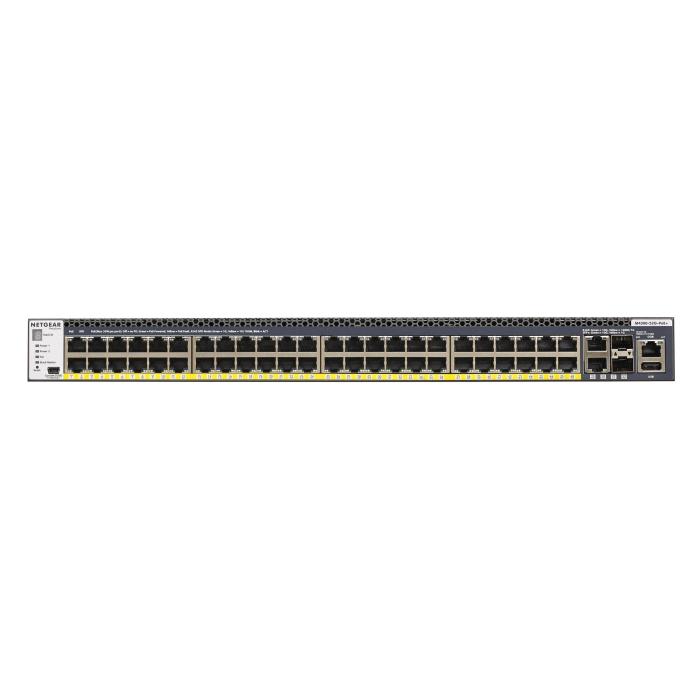

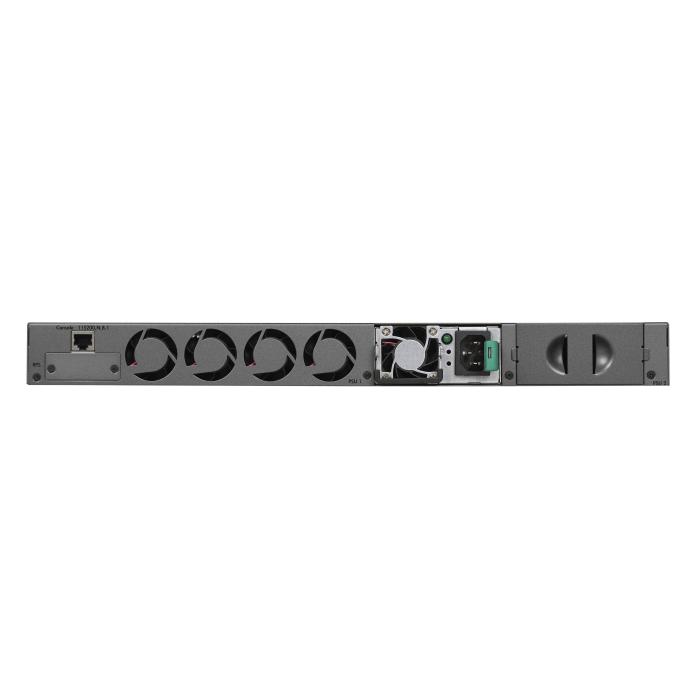

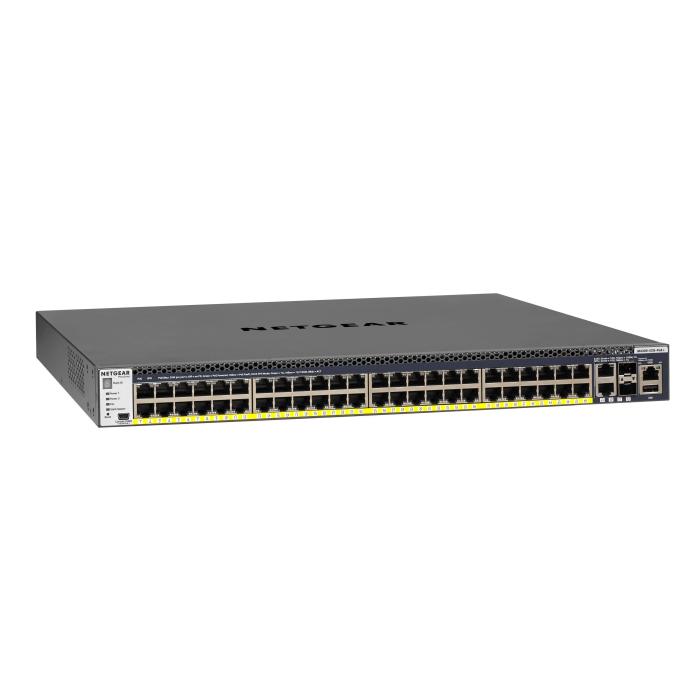

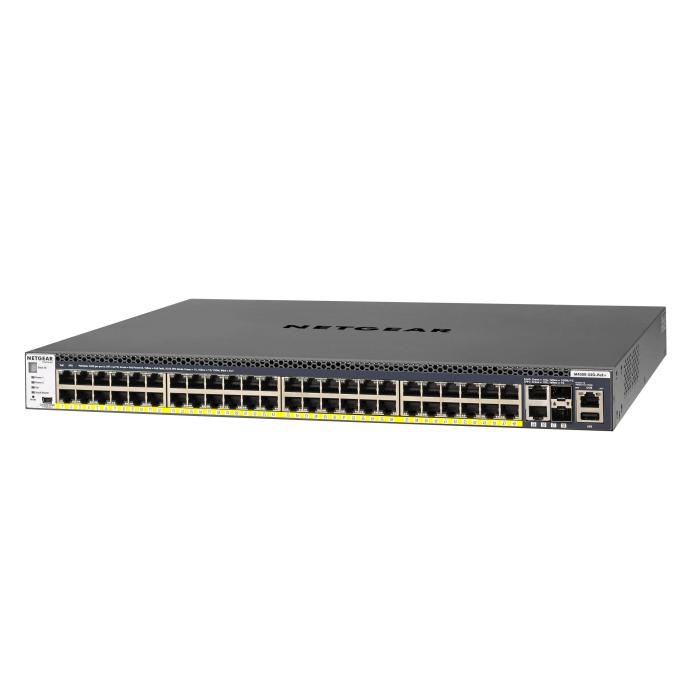

NETGEAR M4300-52G-PoE+ 1000W PSU, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3/L4
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 2
- Fiber optic connector: SFP+
- Console port: RJ-45/Mini-USB
- USB 2.0 ports quantity: 1
Network
- Networking standards: IEEE 802.11ad, IEEE 802.11az, IEEE 802.3ad, IEEE 802.3az
- 10G support: Yes
- Cable types supported: Cat5, Cat5e, Cat6, Cat7, Fiber
- Port mirroring: Yes
- IP routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-sensing: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN
- Number of VLANs: 4000
Optical fiber
- Fiber ethernet cabling technology: 10GBASE-LR, 10GBASE-LRM, 10GBASE-SR
Data transmission
- Switching capacity: 176 Gbit/s
- Forwarding rate: 357 Mpps
- MAC address table: 16000 entries
- Store-and-forward: Yes
- Number of static routes: 64
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 16 MB
Security
- DHCP features: DHCP server, DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: HTTPS, SNMP, SSH
- SSH/SSL support: Yes
- BPDU filtering/protection: Yes
Multicast features
- Multicast support: Yes
- Number of multicast groups filtered: 4000
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Activity, Power, Speed
- Safety: CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950
- Electromagnetic compatibility: CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Performance
- Built-in processor: Yes
- Processor frequency: 800 MHz
- Internal memory: 1024 MB
- Flash memory: 256 MB
- Noise level: 39.8 dB
- Mean time between failures (MTBF): 673207 h
Power
- Power supply included: Yes
- Redundant power supply (RPS) support: Yes
- Number of power supply units: 1
- AC input voltage: 120 - 230 V
- Power consumption (max): 888 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 48
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 591 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 3000 m
- Heat dissipation: 303163 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 388 mm
- Height: 44 mm
- Weight: 6.67 kg
Packaging content
- Cables included: AC, LAN (RJ-45), Mini-USB
- User guide: Yes
- Rack mount kit: Yes
Packaging data
- Rubber feet: Yes
- Resource CD: Yes
Logistics data
- Harmonized System (HS) code: 85176990
