Description

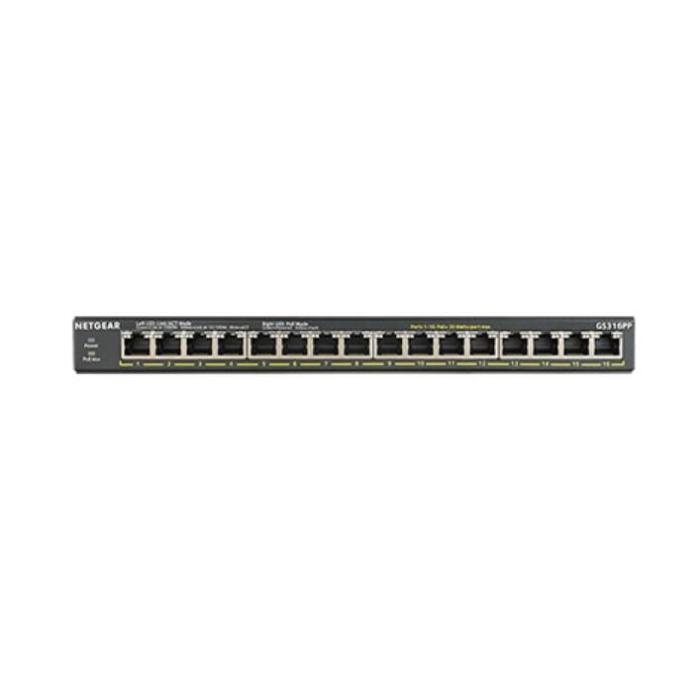

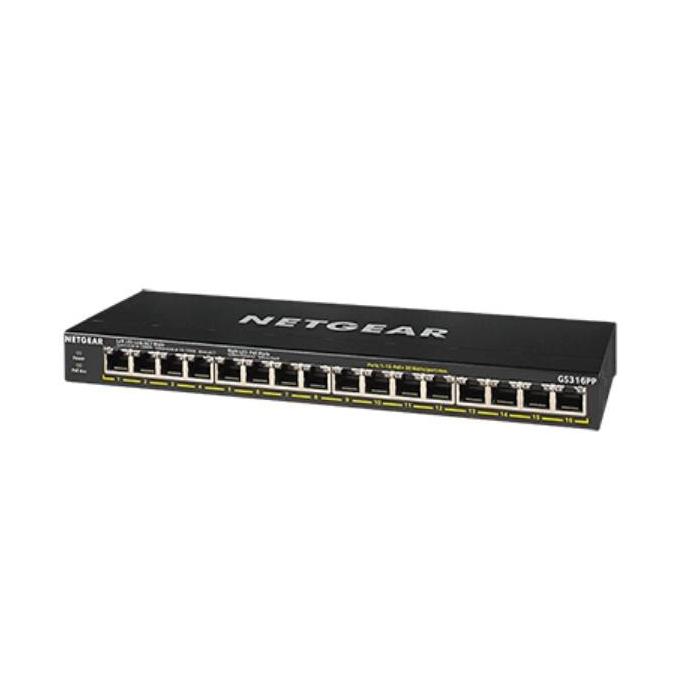

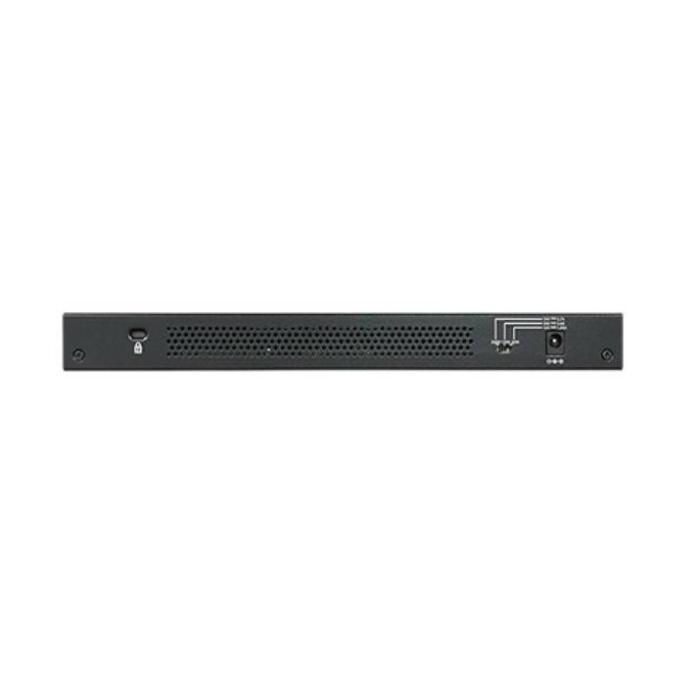

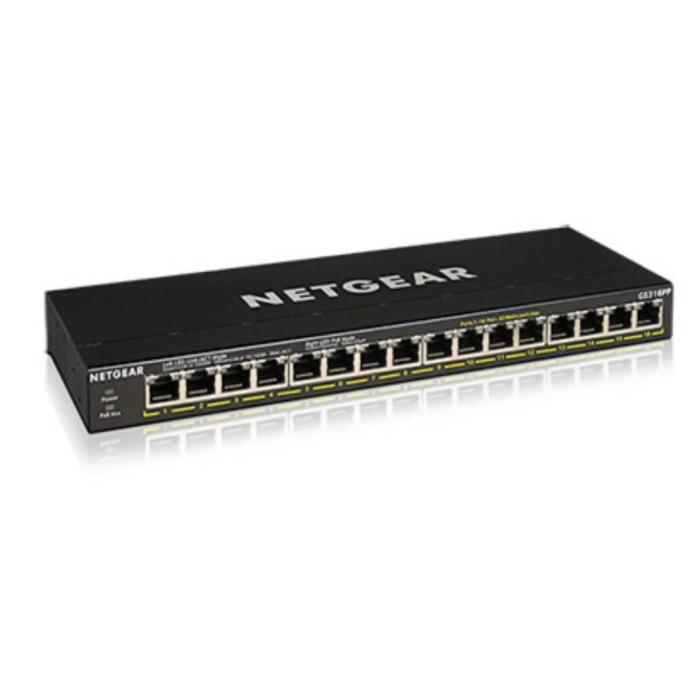

The NETGEAR GS316PP switch is an unmanaged black device that expands your local network with 16 Gigabit Ethernet (10/100/1000) RJ-45 ports. It incorporates PoE power supply in accordance with the IEEE 802.3af and IEEE 802.3at standards, so it can power access points, IP cameras or telephones through the network cable itself. Its switching reaches a capacity of 32 Gbit/s, with a latency of 3.7 µs at 1 Gbps and a packet forwarding rate of 1448000 pps. It features autosensing, autonegotiation and Auto MDI/MDI-X functions, as well as flow control, full duplex and QoS support to prioritise sensitive traffic. It supports 9216 Jumbo frames and has 1 MB of packet buffer memory. It is powered via a DC input jack and its dimensions are 286 x 27 x 102 mm (width x height x depth), with a weight of 880 g.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-sensing: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 32 Gbit/s
- MAC address table: 4000 entries
- Latency (1 Gbps): 3.7 µs
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet forwarding rate (1 Gbps): 1448000 pps
- Packet buffer memory: 1 MB
Security
- Queue scheduling algorithms: Weighted Round Robin (WRR)
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Activity, Link, PoE, Power, Speed
- Wall mountable: Yes
Performance
- Mean time between failures (MTBF): 2362192 h
Power
- DC input voltage: 54 V
- Input current: 3.7 A
- Power consumption (max): 195.9 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 16
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 183 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 669.9 BTU/h
Weight & dimensions
- Width: 286 mm
- Depth: 102 mm
- Height: 27 mm
- Weight: 880 g
Certificates
- Certification: CE, FCC Part A, IC A, RCM, VCCI, BSMI, KC, CB, CE LVD
Logistics data
- Harmonized System (HS) code: 85176990
