Description

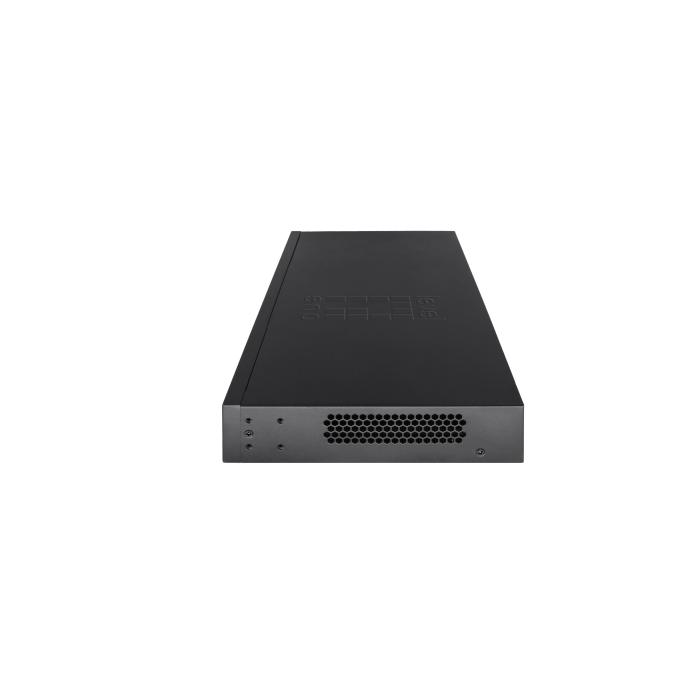

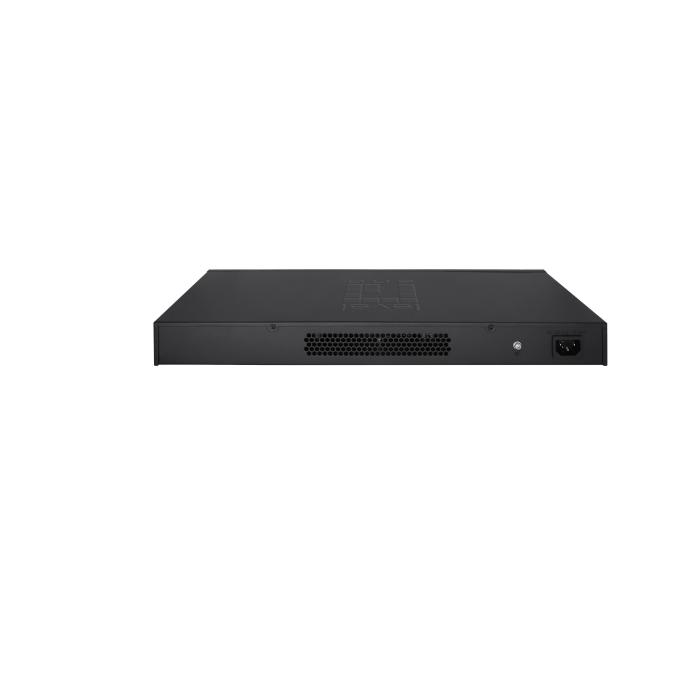

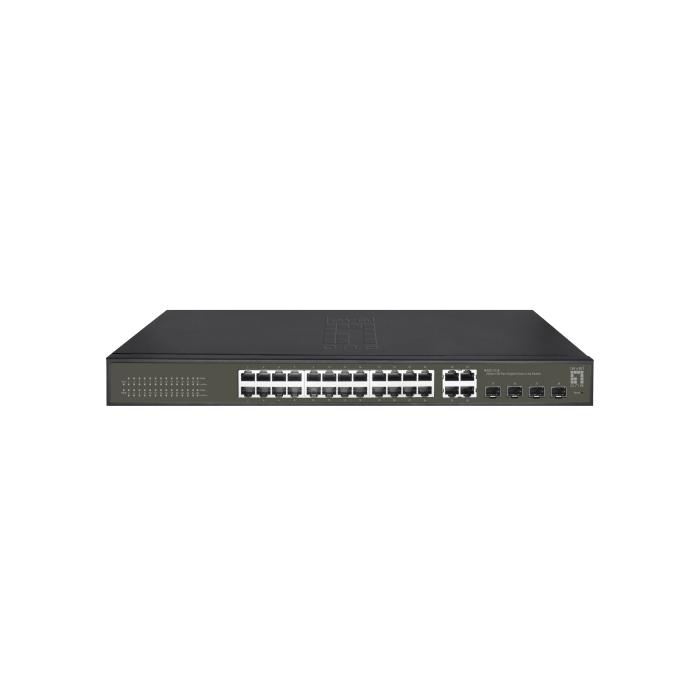

The LevelOne GES-2128 is a black L2 managed switch with 24 Gigabit Ethernet (10/100/1000) RJ-45 ports and 4 SFP combo ports, designed to expand and segment business networks. Its web-based administration allows the device to be configured conveniently, while QoS support helps prioritise critical traffic. It manages up to 32 VLANs with Tagged VLAN labelling and offers flow control, rate limiting and storm transmission control to keep the network stable. It includes MAC address auto-learning and auto-aging functions, as well as full duplex operation and 10BASE-T, 100BASE-TX and 1000BASE-T cabling technologies. With dimensions of 440 x 44.5 x 190 mm and a weight of 1.95 kg, it integrates well into communications cabinets.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
- Combo SFP ports quantity: 4
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN
- Number of VLANs: 32
Data transmission
- Switching capacity: 56 Gbit/s
- MAC address table: 8000 entries
- Number of queues: 4
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 4.1 MB
Security
- IGMP snooping: Yes
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Product colour: Black
- LED indicators: Activity, Link, Power, System
Performance
- Flash memory: 2 MB
- Noise level: 0 dB
- Fanless: Yes
- Mean time between failures (MTBF): 43800 h
Power
- Power source: AC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 20 W
- Surge protection: Yes
- Surge protection voltage: 8 kV
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 68.24 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 190 mm
- Height: 44.5 mm
- Weight: 1.95 kg
Packaging content
- Cables included: AC
- Quick start guide: Yes
- Rack mount kit: Yes
Packaging data
- Package type: Box
- Package width: 503 mm
- Package depth: 270 mm
- Package height: 85 mm
- Package weight: 2.55 kg
Sustainability
- Sustainability compliance: Yes
Technical details
- Master (outer) cases per pallet (air): 20 pc(s)
- Pallet gross length: 80 cm
- Pallet gross width: 120 cm
- Pallet height (air): 159.4 cm
Certificates
- Compliance certificates: CE, RoHS
- Certification: UKCA, FCC Class A
Logistics data
- Master (outer) case net weight: 750 g
- Country of origin: China
- Master (outer) case width: 515 mm
- Master (outer) case length: 360 mm
- Master (outer) case height: 290 mm
- Master (outer) case gross weight: 10.9 kg
- Products per master (outer) case: 4 pc(s)
