Description

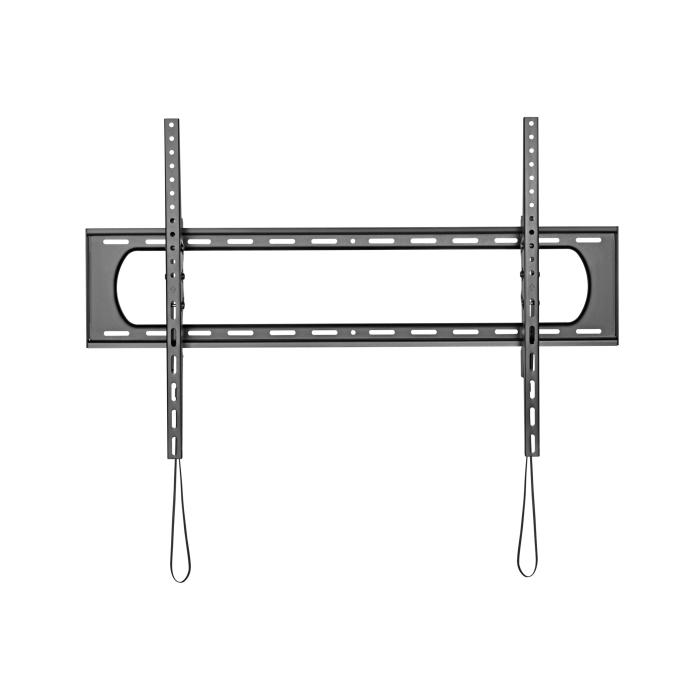

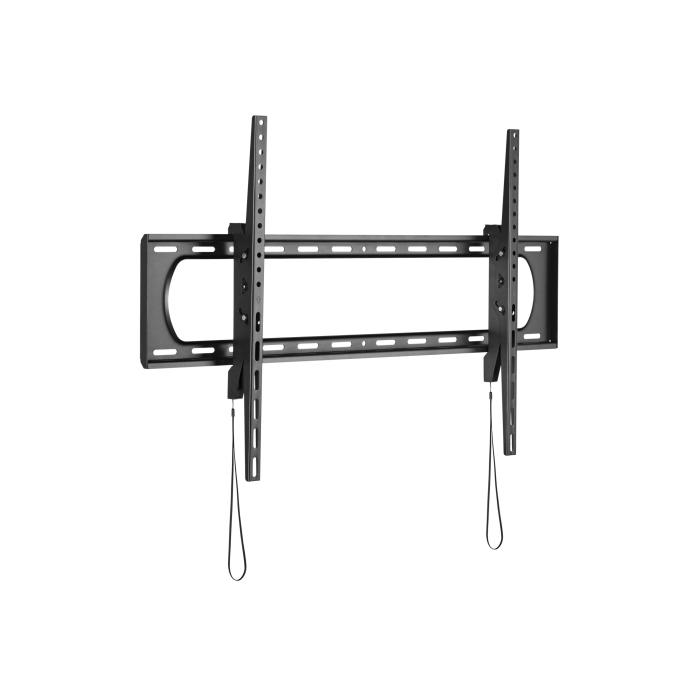

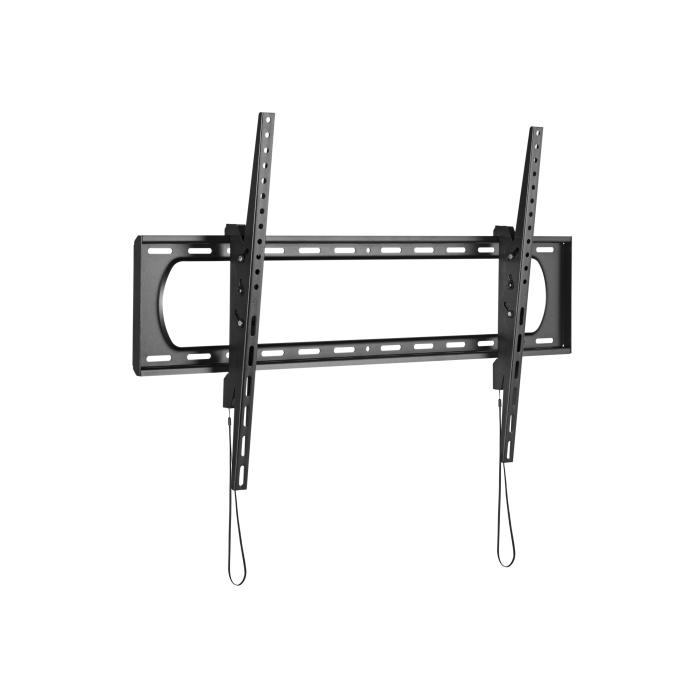

The EQUIP heavy-duty tilt TV mount bracket, in black, is designed for screens from 152.4 cm (60") to 3.05 m (120"). It is a wall mount intended for a single screen, with a maximum weight capacity of 120 kg. Its mounting interface compatibility ranges from 50 x 50 mm to 900 x 600 mm, so it adapts to a wide variety of televisions. The height of the unit is 625 mm and its weight is 4.29 kg. The tilt adjustment allows the screen to be angled from -10 to 10°, and the minimum distance from the wall is 8 cm. The housing is made of steel, a material that provides robustness to the unit. It includes screws for mounting and complies with REACH and RoHS conformity certificates.
Specifications
Mounting

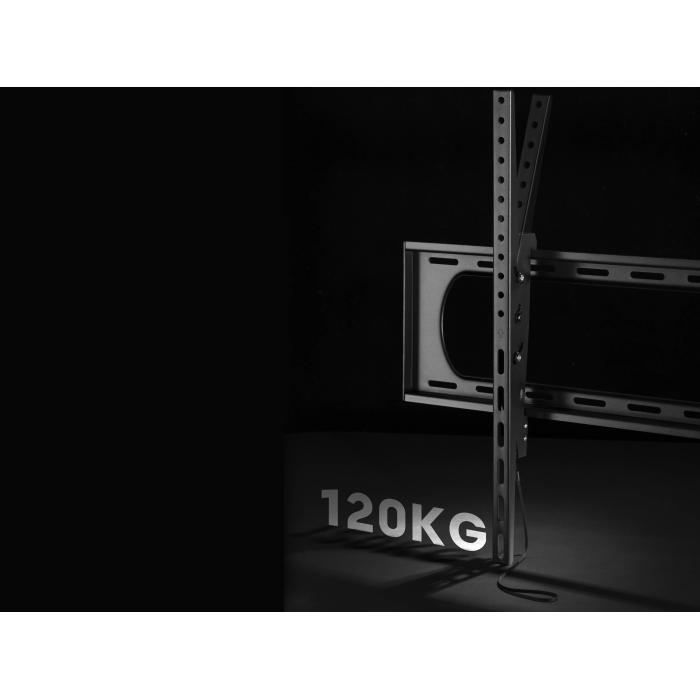

- Maximum weight capacity: 120 kg
- Minimum screen size: 152.4 cm (60")
- Number of displays supported: 1
- Maximum screen size: 3.05 m (120")
- Minimum VESA mount: 50 x 50 mm
- Maximum VESA mount: 900 x 600 mm
- Panel mounting interface: 50 x 50, 75 x 75, 100 x 100, 100 x 150, 100 x 200, 150 x 100, 150 x 150, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 200,
- Mounting type: Wall
Ergonomics

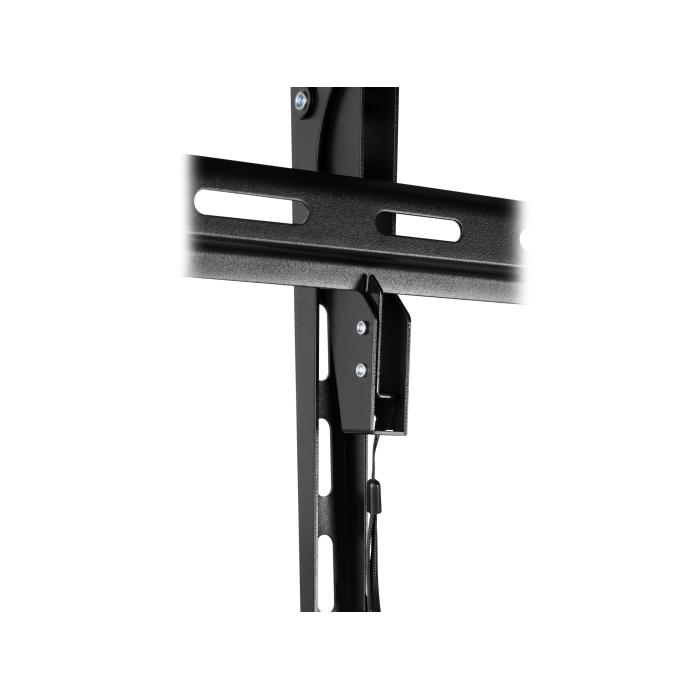

- Tilt adjustment: Yes
- Tilt angle range: -10 - 10°
- Cable management: No

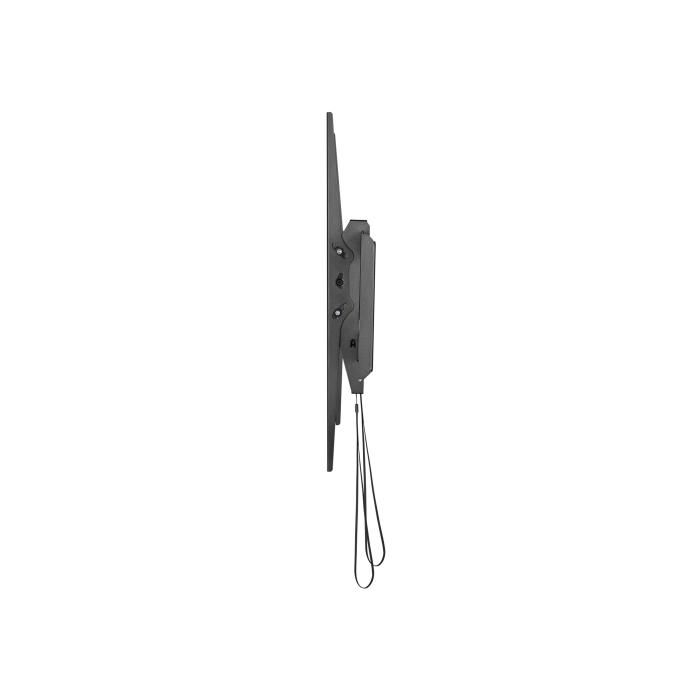

- Distance to the wall (min): 8 cm
Design
- Product colour: Black
- Housing material: Steel
Technical details
- Country of origin: China
- Sustainability compliance: Yes
- Compliance certificates: REACH, RoHS
Packaging content
- Screws included: Yes
Weight & dimensions
- Width: 1005 mm
- Depth (max): 8 cm
- Height: 625 mm
- Weight: 4.29 kg
Packaging data
- Package width: 232 mm
- Package depth: 46 mm
- Package height: 1030 mm
- Package weight: 4.86 kg
- Package type: Box
Logistics data
- Master (outer) case width: 250 mm
- Master (outer) case length: 205 mm
- Master (outer) case height: 1040 mm
- Master (outer) case gross weight: 20 kg
- Products per master (outer) case: 4 pc(s)
