Description

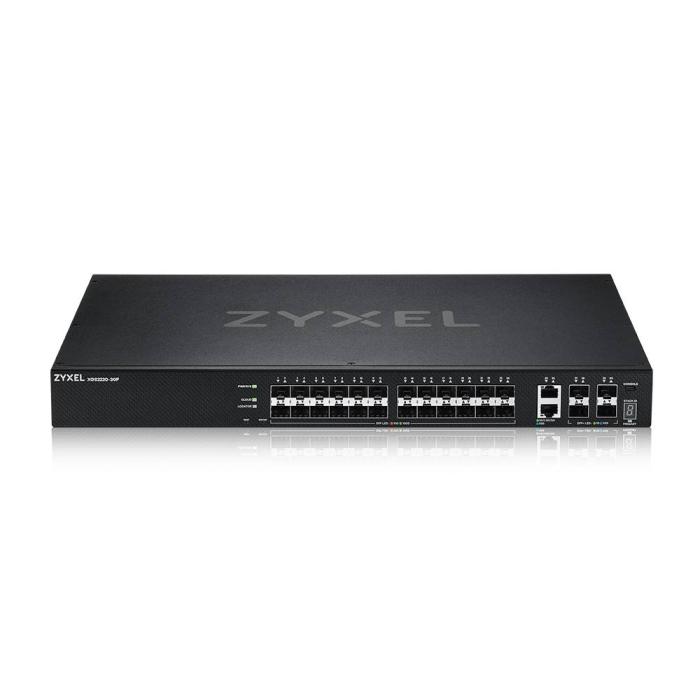

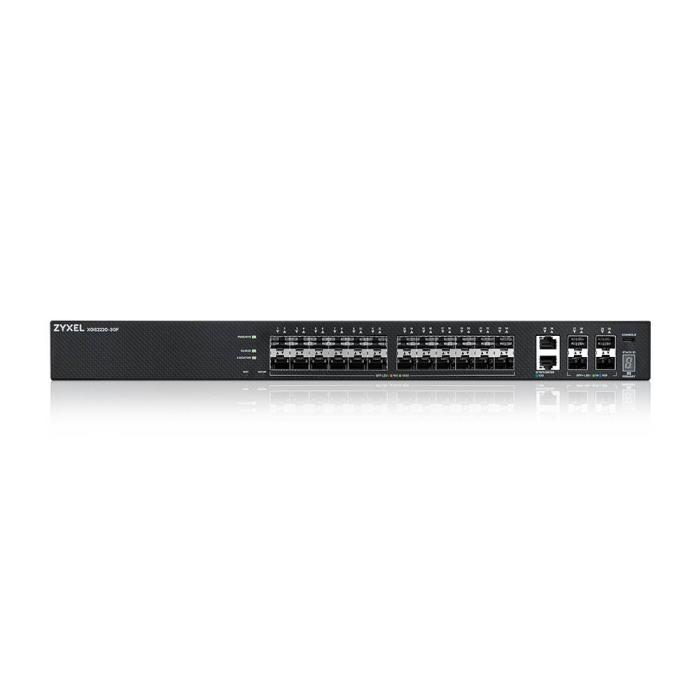

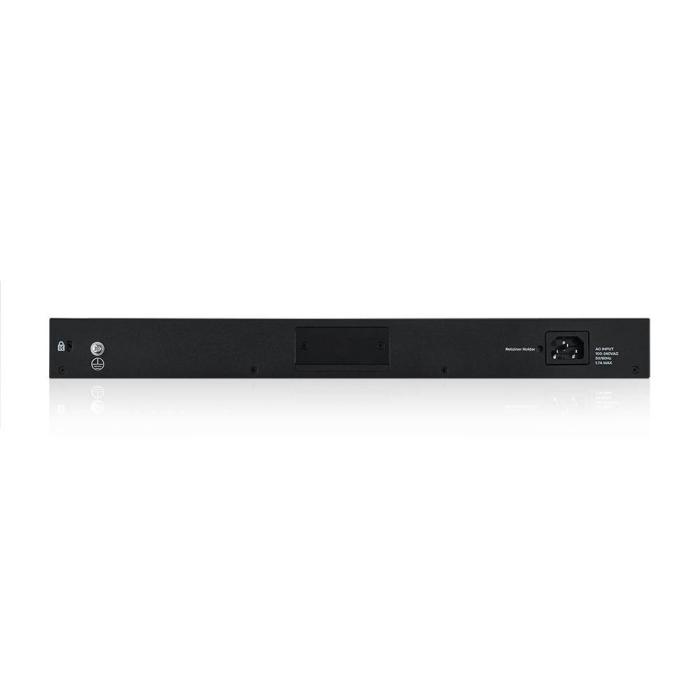

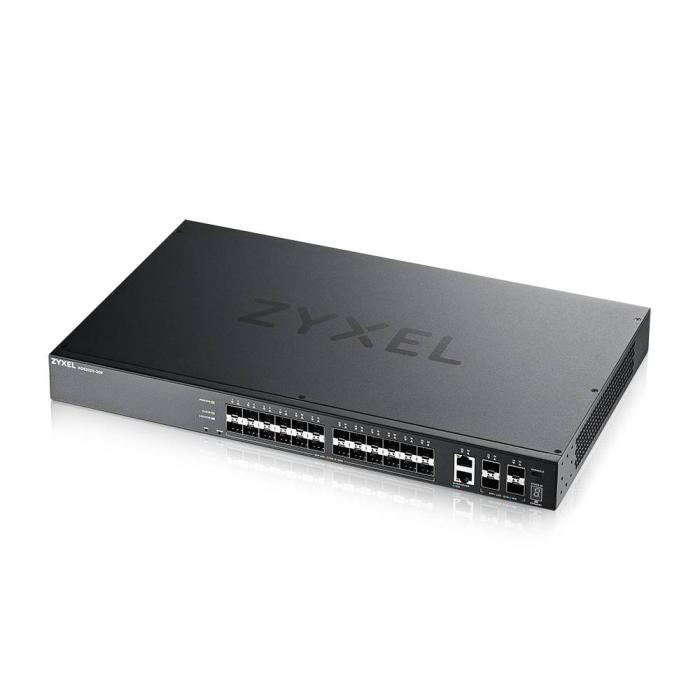

Zyxel XGS2220-30F, Managed, L3, Rack mounting
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- ARP inspection: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports type: No
- 10G Ethernet (copper) ports quantity: 2
- Installed SFP modules quantity: 24
- Installed SFP+ modules quantity: 4
Network
- Networking standards: IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.1p, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3az, IEEE 8
- 10G support: Yes
- Routing entries: 64
Data transmission
- Switching capacity: 168 Gbit/s
- Forwarding rate: 125 Mpps
- MAC address table: 32000 entries
- Static route: Yes
- Jumbo frames support: Yes
- Packet buffer memory: 2 MB
Security
- DHCP features: DHCP relay, DHCP server
- IGMP snooping: Yes
- IGMP proxy: Yes
- Security algorithms: SNMP, SNMPv2, SNMPv3
- BPDU filtering/protection: Yes
- Authentication type: IEEE 802.1x, RADIUS, TACACS+
Multicast features
- Multicast support: Yes
- Multicast Listener Discovery (MLD) snooping: MLD v1/v2
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
Design
- Rack mounting: Yes
- Product colour: Black
- LED indicators: Yes
Performance
- Internal memory: 1024 MB
- Flash memory: 64 MB
- Mean time between failures (MTBF): 352.923 h
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 66 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 225.06 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 270 mm
- Height: 44 mm
- Weight: 3.5 kg
Packaging data
- Package width: 616 mm
- Package depth: 355 mm
- Package height: 107 mm
- Package weight: 4.83 kg
Certificates
- Compliance certificates: RoHS, Federal Communications Commission (FCC), Low Voltage Directive (LVD), CE
