Tripp Lite B040-016-19 NetController 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD
More info
Brand: TRIPP LITE
1,700.30 €
1,405.21 €
without VAT
incl. 21 % VAT · Shipping to Czechia
Stock available: 1 ud.
Get it
on the
October 19
/
October 20
SKU:
94820
PRC:
386325
EAN:
37332140319
PN:
B040-016-19
Description

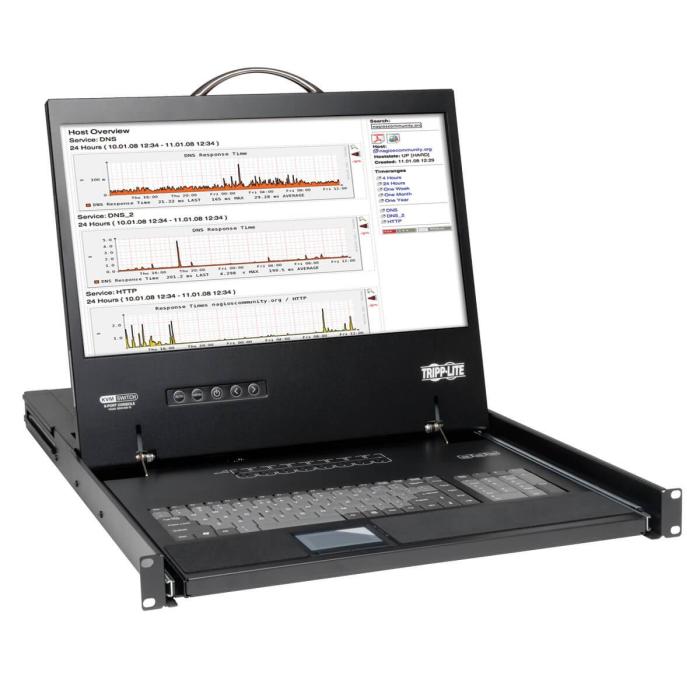

The Tripp Lite B040-016-19 KVM console integrates a 19-inch LCD screen with a resolution of 1366 x 768 pixels, with an on-screen display (OSD) function for managing the equipment. It incorporates a 16-port KVM switch and offers PS/2, USB and VGA interfaces for connecting equipment. Its 1U form factor allows it to be rack-mounted, with dimensions of 449.3 x 43.4 x 722.4 mm and a weight of 14.5 kg. The housing is made of galvanised steel. As for power consumption, it operates at 30 W in operation and 5 W in standby, with an input current of 1.4/0.8 A and an adapter frequency of 50/60 Hz. It has UL 60950-1, CAN/CSA, FCC Part 15 Class A, CE and IEC 60950-1 certifications, among others.
Specifications
Display
- Display diagonal: 48.3 cm (19")
- Display resolution: 1366 x 768 pixels
- Display: LCD
- On Screen Display (OSD): Yes
Technical details
- Material: Galvanized steel
- Form factor: 1U
- Built-in KVM switch: Yes
- KVM switch ports quantity: 16
- Compliance certificates: RoHS
- Country of origin: Taiwan

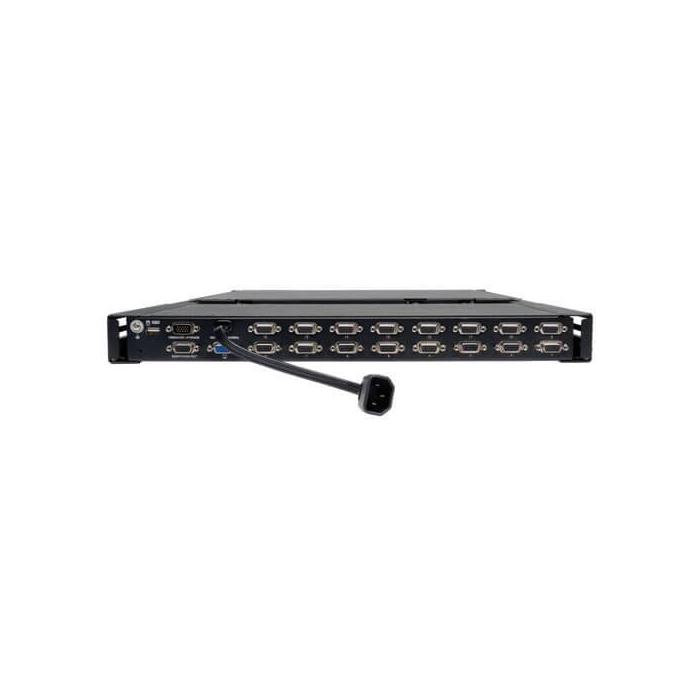

Ports & interfaces
- I/O ports: 16 x HD15F USB
- Interface: PS/2; USB; VGA
- Video port type: VGA
Certificates
- Certification: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, TUV (UL), CTUV, CE, FCC, NOM
Power
- Power consumption (typical): 30 W
- Power consumption (standby): 5 W
- AC adapter input voltage: 120/230 V
- AC adapter frequency: 50/60 Hz
- Input current: 1.4/0.8 A
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
- Width: 449.3 mm
- Height: 43.4 mm
- Depth: 722.4 mm
- Weight: 14.5 kg
Packaging data
- Package weight: 18.5 kg
- Package width: 591.8 mm
- Package depth: 825 mm
- Package height: 154.9 mm
Logistics data
- Master (outer) case width: 591.8 mm
- Master (outer) case length: 825 mm
- Master (outer) case height: 154.9 mm
- Master (outer) case gross weight: 18.5 kg
- Products per master (outer) case: 1 pc(s)
