Description

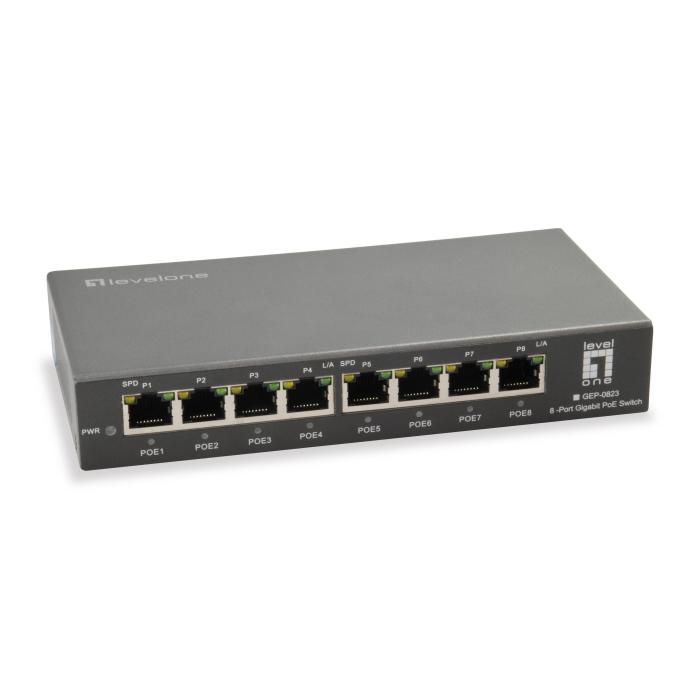

The LevelOne GEP-0823 is a Gigabit Ethernet switch with 8 RJ-45 ports operating at 10/100/1000, designed to expand your office or installation network with stable wired connections. It incorporates Power over Ethernet support compliant with IEEE 802.3af and IEEE 802.3at, which allows compatible devices to be powered through the network patch cable itself. Its cabling technology covers 10BASE-T, 100BASE-TX and 1000BASE-T, and it also complies with IEEE 802.3, IEEE 802.3ab, IEEE 802.3u and IEEE 802.3x. It reaches a switching capacity of 16 Gbit/s, handles Jumbo frames of up to 9126 bytes, supports full duplex and stores up to 8000 entries in its MAC address table. The casing is metal in black, with dimensions of 86 x 176 x 30 mm and a weight of 450 g, and includes LED indicators for activity, LAN and power. Its mean time between failures is 30000 hours and it has 1 MB of internal memory.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

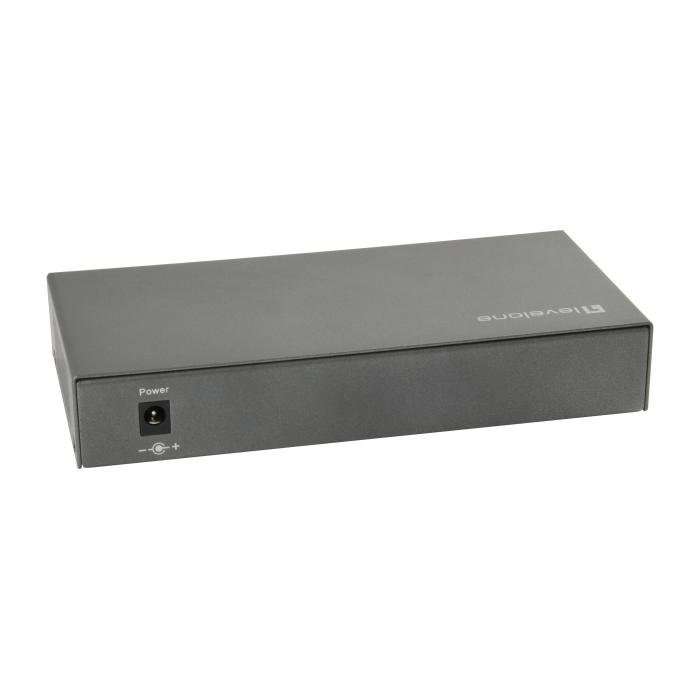

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9126
Design
- Stackable: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Activity, LAN, Power
Performance
- Internal memory: 1 MB
- Buffer size: 8 KB
- Mean time between failures (MTBF): 30000 h
Power
- Input current: 2.5 A
- Input voltage: 52 V
- Power consumption (typical): 10 W
- Power protection features: Over current, Short circuit
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 8
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 120 W
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 86 mm
- Depth: 30 mm
- Height: 176 mm
- Weight: 450 g
Packaging content
- Quick start guide: Yes
Packaging data
- AC adapter included: Yes
- Package width: 230 mm
- Package depth: 60 mm
- Package height: 290 mm
- Package weight: 950 g
Certificates
- Certification: CE,FCC
Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
