Description

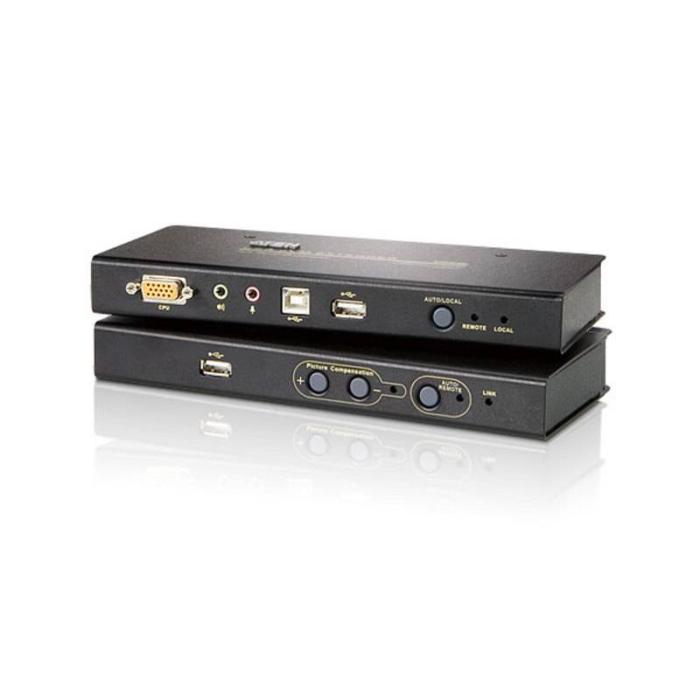

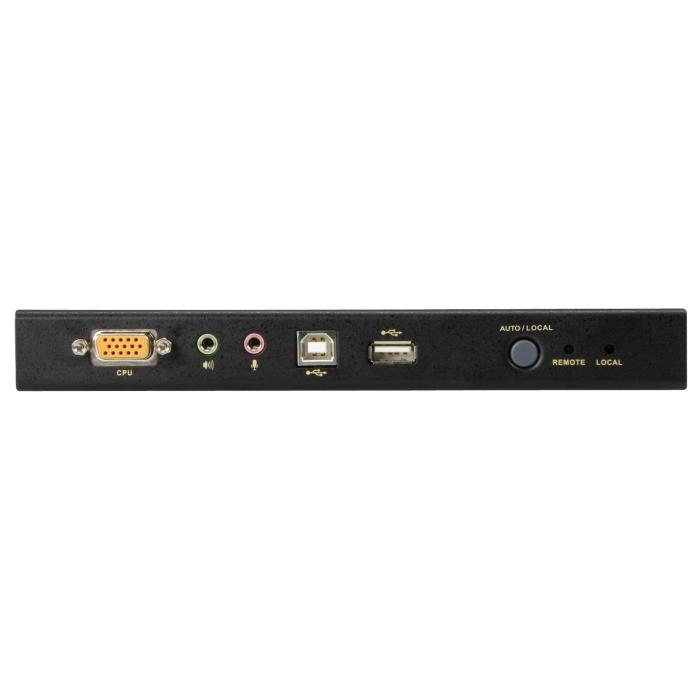

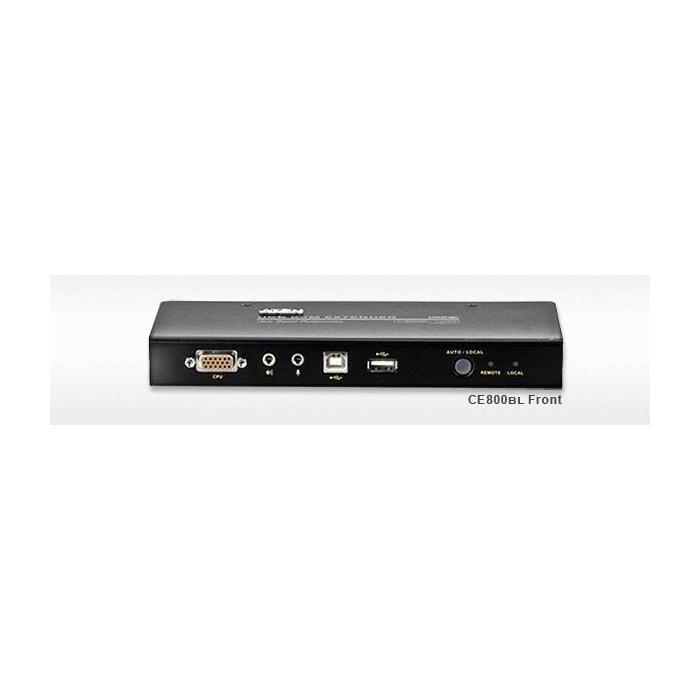

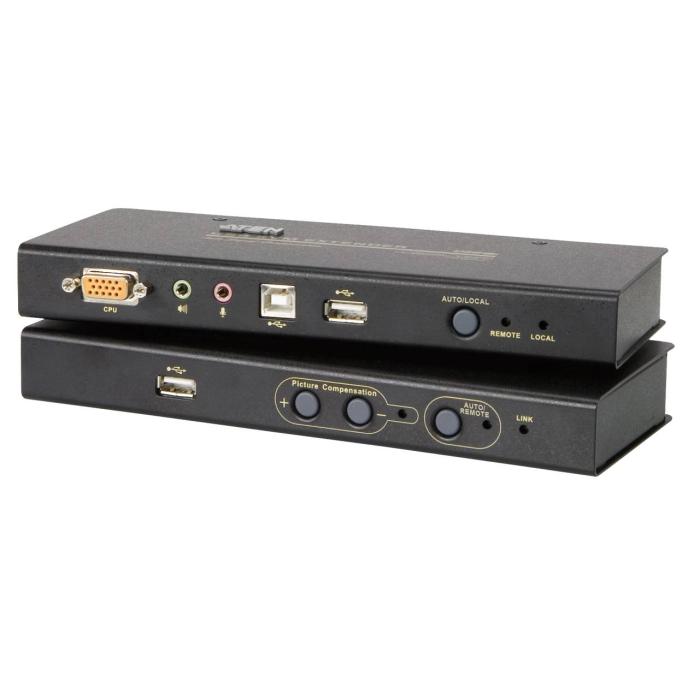

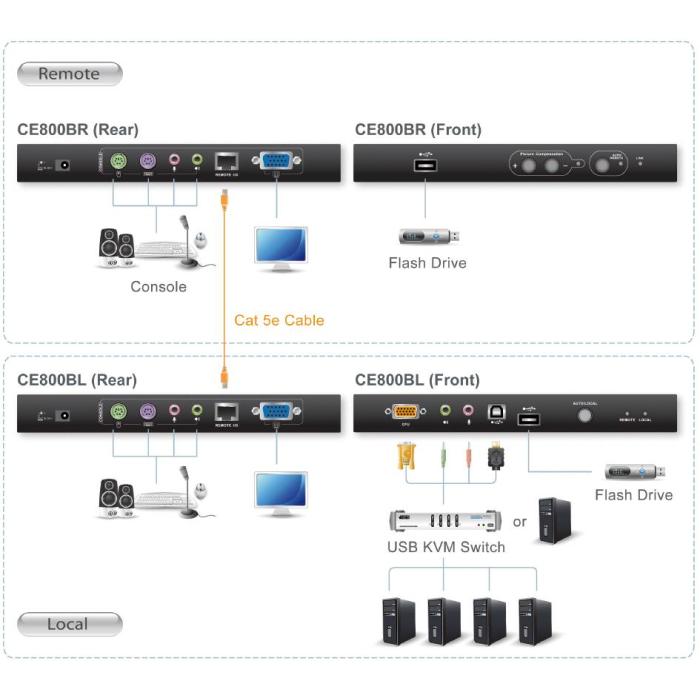

USB VGA/Audio Cat 5 KVM Extender with USB Flash Storage (1024 x 768@250m)
Specifications
Features
- Type: Transmitter & receiver
- Connectivity technology: Wired
- Maximum transfer distance: 250 m
- Cable types supported: Cat5e
- Maximum digital resolution: 1920 x 1200 pixels
- Maximum analog resolution: 1920 x 1200 pixels
- KVM port selection: Push-buttons
- Product colour: Black
- Material: Metal
- LED indicators: Yes

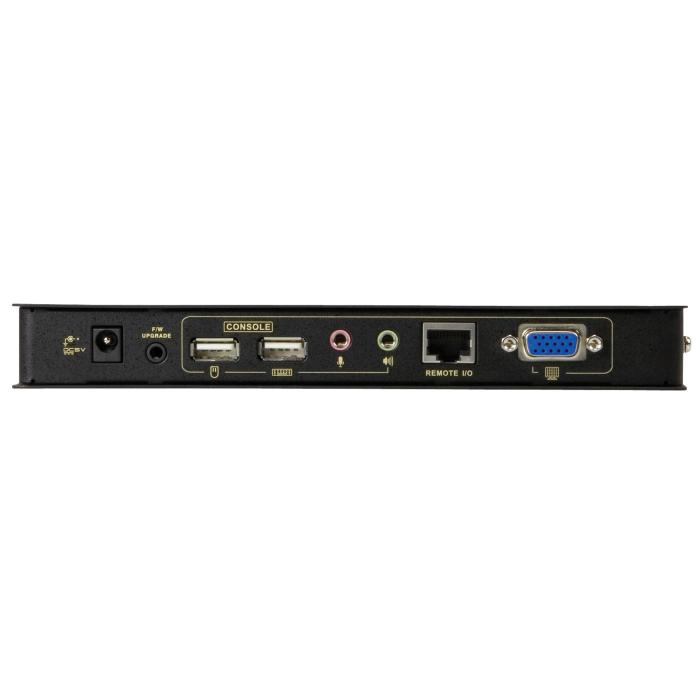

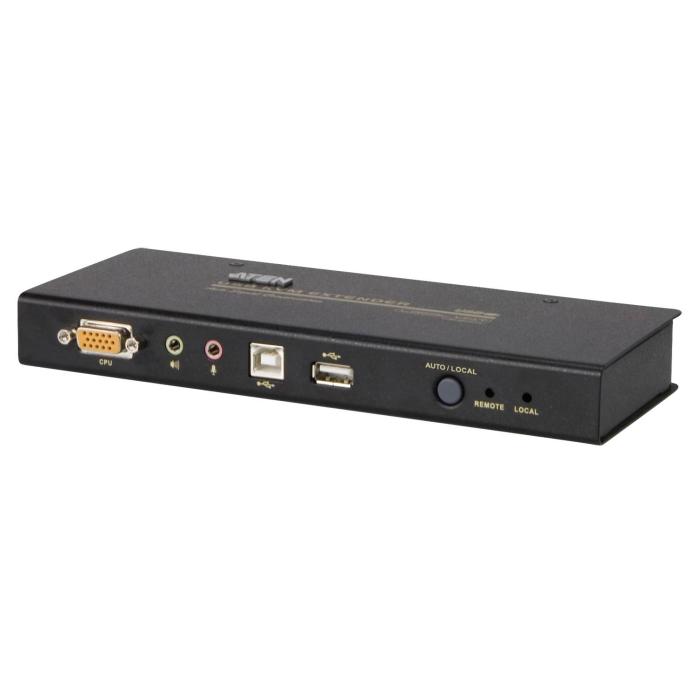

Transmitter
- Transmitter video port type: VGA
- Transmitter local video port: Yes
- Transmitter local video port type: VGA
- Number of displays supported: 1
- Transmitter local keyboard/mouse port type: USB
- RJ-45 ports quantity (transmitter): 1

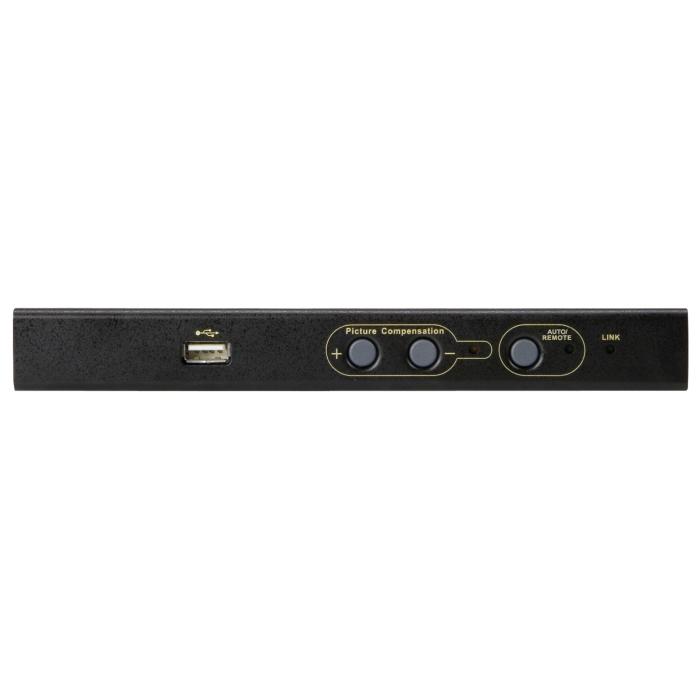

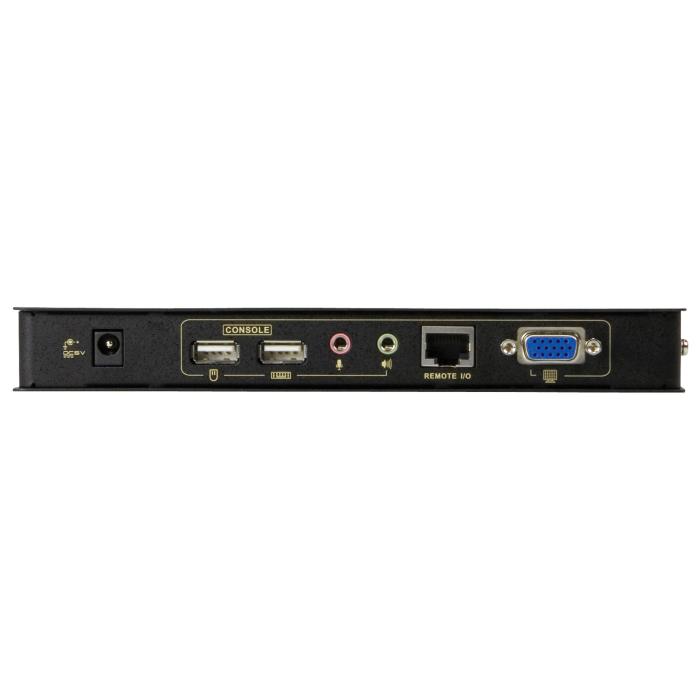

Receiver
- Receiver local video port type: VGA
- Receiver local keyboard/mouse port type: USB
Ports & interfaces
- USB port type: USB Type-A/USB Type-B
- RJ-45 ports quantity: 1
- PC Audio in: Yes
- PC Audio out: Yes
Power
- Power consumption (transmitter) (max): 6 W
- Power consumption (receiver) (max): 6 W
Weight & dimensions
- Transmitter width: 20.2 cm
- Transmitter depth: 8.16 cm
- Transmitter height: 2.63 cm
- Transmitter weight: 490 g
- Receiver width: 20.2 cm
- Receiver depth: 8.63 cm
- Receiver height: 2.63 cm
- Receiver weight: 510 g
Packaging data
- Package width: 98 mm
- Package depth: 325 mm
- Package height: 210 mm
- Package weight: 2.03 kg
Packaging content
- AC adapter included: Yes
- Cables included: KVM, USB
- Manual: Yes
- Quick installation guide: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Other features
- Firmware upgradeable: Yes
- Compliance certificates: RoHS, WEEE
Logistics data
- Master (outer) case net weight: 8.6 kg
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 342 mm
- Master (outer) case length: 512 mm
- Master (outer) case height: 232 mm
- Master (outer) case gross weight: 10.9 kg
- Products per master (outer) case: 5 pc(s)
