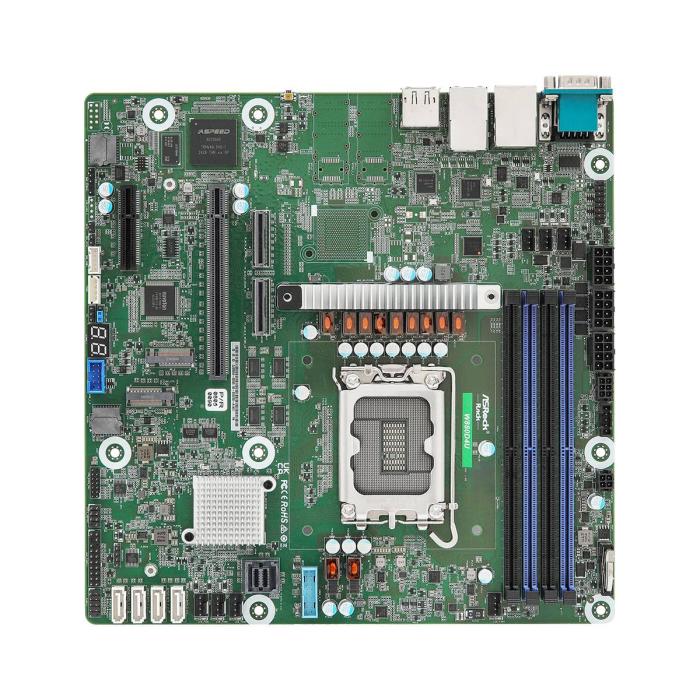

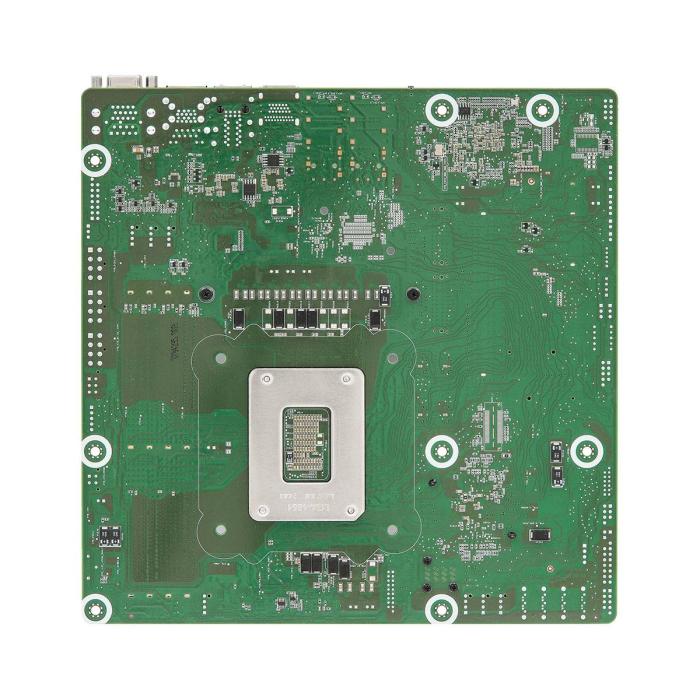

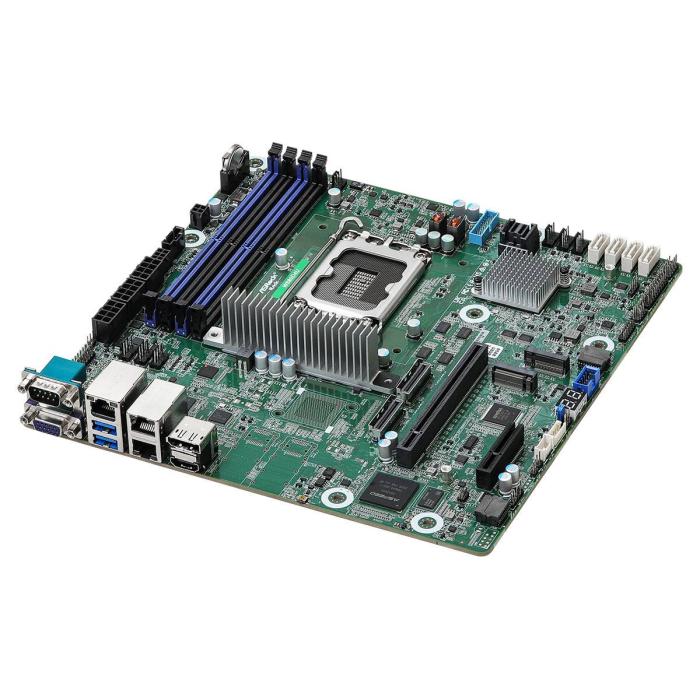

Asrock W880D4U motherboard Intel W880 LGA 1851 (Socket V1) micro ATX

More info

Brand: ASROCK

Not avaliable

SKU: 125859 PRC: 633001 EAN: 4711430525006 PN: w880d4u

Description

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor socket: LGA 1851 (Socket V1)
  • Compatible processor series: Intel Core Ultra (Series 2)

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory slot pin count: 288
  • Memory voltage: 1.1 V
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 4400, 4800, 5600 MHz
  • Maximum internal memory: 64 GB

Storage controllers

  • Supported storage drive interfaces: SATA III
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10

Graphics

  • On-board graphics card: Yes
  • Graphics card family: ASPEED
  • Graphics card: AST2600

Internal I/O

  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • Number of SATA III connectors: 8
  • TPM connector: Yes

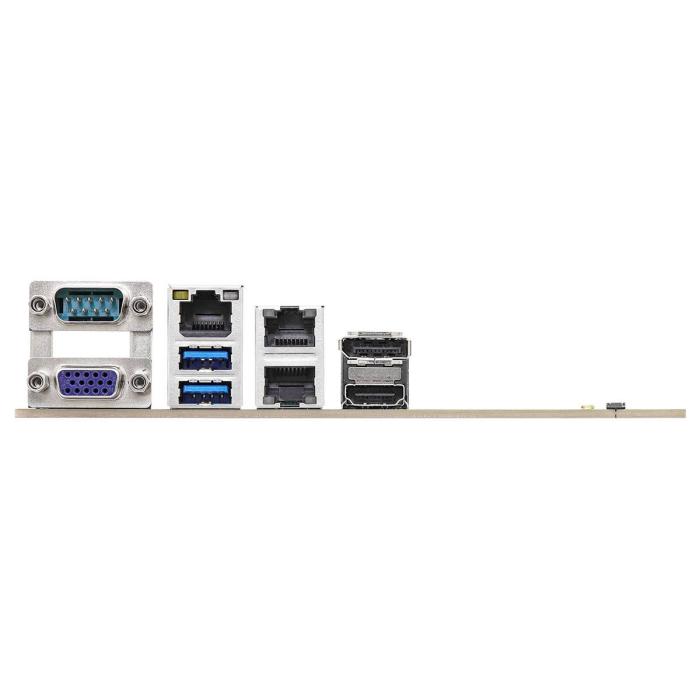

Rear panel I/O ports

  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • Ethernet LAN (RJ-45) ports: 2
  • IPMI LAN (RJ-45) port: Yes
  • VGA (D-Sub) ports quantity: 1
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 1
  • Serial ports quantity: 1

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • LAN controller: Intel I210
  • Wi-Fi: No

Features

  • Motherboard chipset: Intel W880
  • Component for: Server
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: Intel

Expansion slots

  • PCI Express x16 (Gen 5.x) slots: 1

BIOS

  • BIOS type: AMI
  • ACPI version: 6.4
  • System management BIOS (SMBIOS) version: 2.3

Operational conditions

  • Storage temperature (T-T): -40 - 70 °C
  • Operating temperature (T-T): 10 - 35 °C
  • Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

  • Width: 243.8 mm
  • Depth: 243.8 mm
