Description

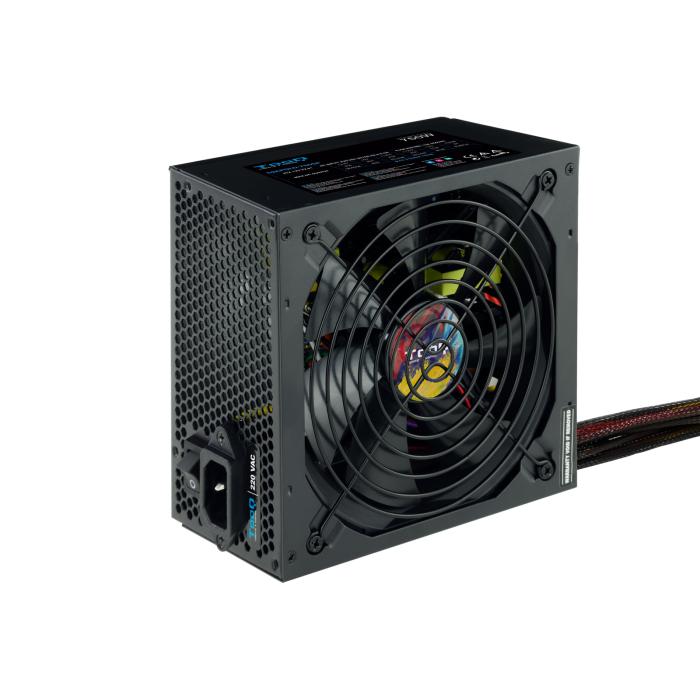

TooQ TQAPOLO-750SP, 750 W, 220 V, 50 - 60 Hz, 2.5 - 9 A, Active, 30 A
Specifications
Power
- Total power: 750 W
- AC input voltage: 220 V
- AC input frequency: 50 - 60 Hz
- Input current: 2.5 - 9 A
- Power Factor Correction (PFC) type: Active
- Max output current (+3.3V): 30 A
- Max output current (+12V1): 25 A
- Max output current (+12V2): 25 A
- Max output current (+5V): 30 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage

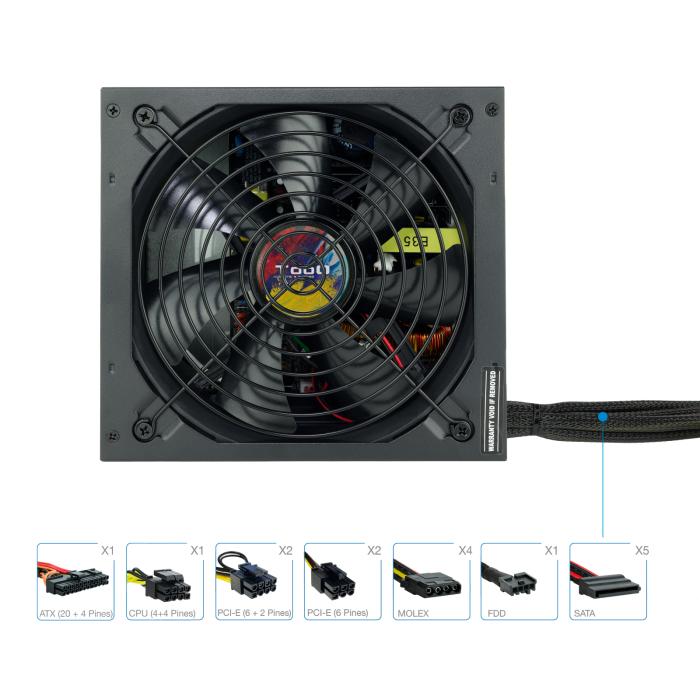

Ports & interfaces

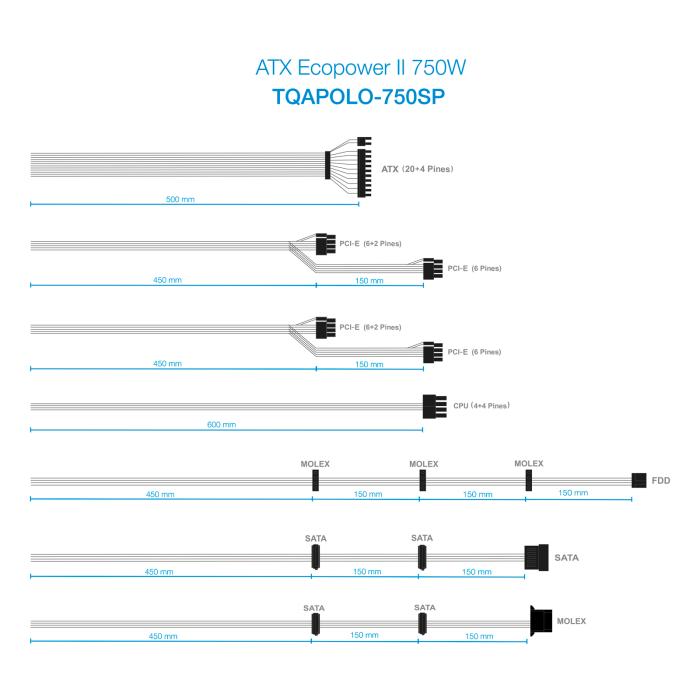

- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 40 cm
- Number of SATA power connectors: 5
- SATA power cable length: 700 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 700 mm
- PCI Express power connectors (6-pin): 1
- PCI Express power connectors (6+2 pin): 1
- PCI Express power cable length: 40 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 40 cm
- ATX power connector (20+4 pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 70 cm
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: No
- Supported motherboard form factors: ATX
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.31
Design
- Product colour: Black

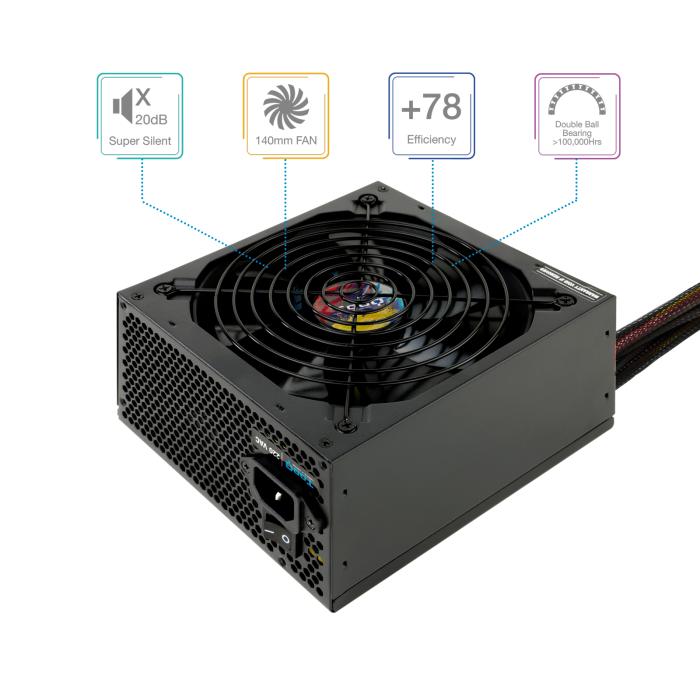

- Cooling type: Active
- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Packaging content

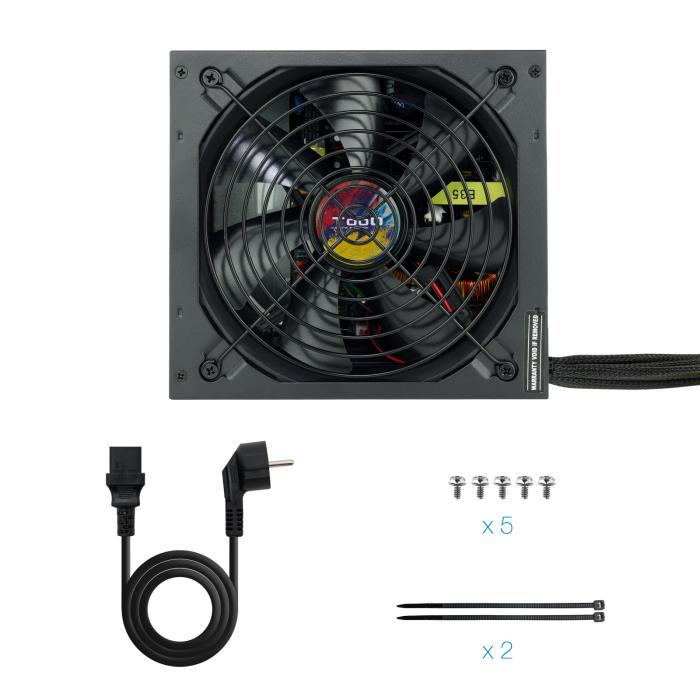

- Cables included: AC
Certificates
- Compliance certificates: CE, RoHS
Safety regulation & standards
- Safety: OCP, OVP, UVP, SCP, OPP, OTP

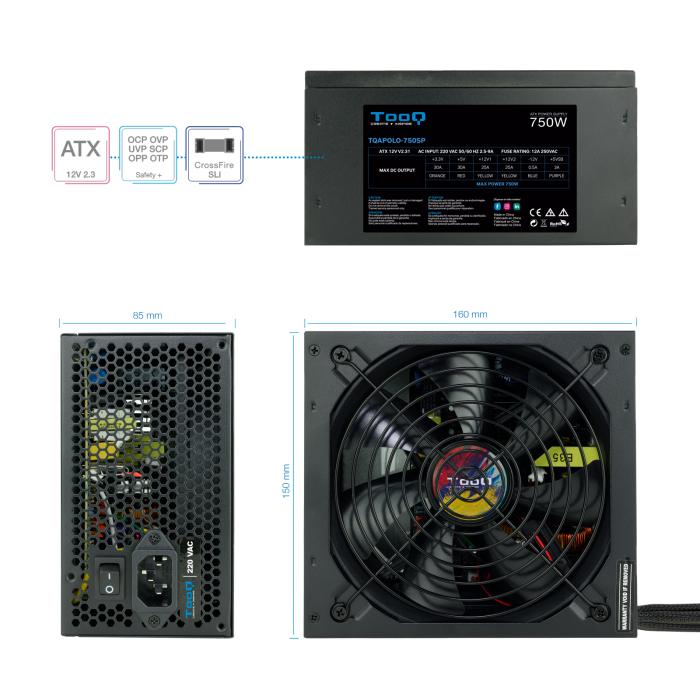

Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 85 mm
Packaging data
- Package width: 256 mm
- Package depth: 172 mm
- Package height: 102 mm
- Package type: Box
