Description

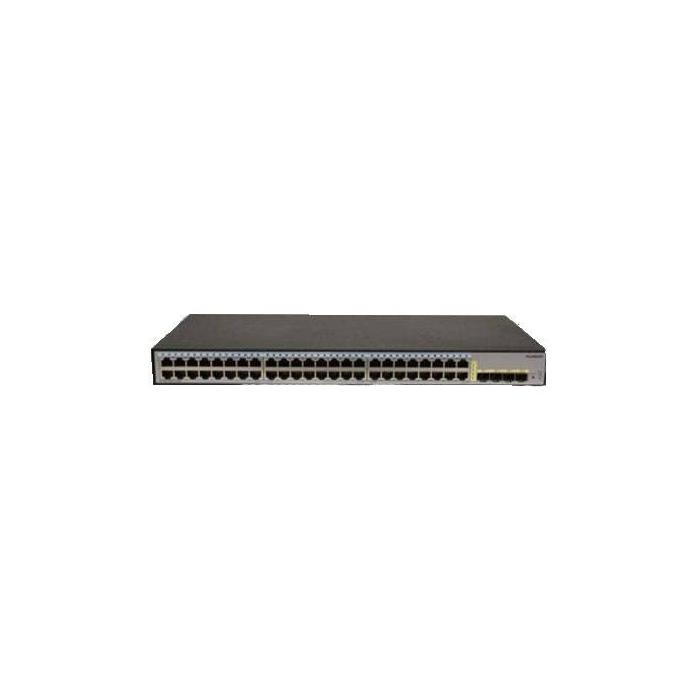

S1700-52GFR-4P-AC Mainframe(48 GE RJ45,4 GE SFP,AC 110/220V)
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Gigabit Ethernet (copper) ports quantity: 48
- SFP/SFP+ slots quantity: 4
- SFP module slots quantity: 4
Network
- Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
- 10G support: No
- Port mirroring: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- VLAN support: Yes
- Number of VLANs: 4000
Data transmission
- Supported data transfer rates: 10/100/1000Mbps
- Switching capacity: 104 Gbit/s
- MAC address table: 8000 entries
- Number of queues: 8
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- MAC address filtering: Yes
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: SNMP, RMON, VCT, LLDP, EEE
Design
- Stackable: No
- Number of fans: 1 fan(s)
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 45 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Other features
- Connectivity technology: Wired
- Packet transfer speed: 78 Mpps
- Ethernet LAN: Yes
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 20 - 85%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 442 mm
- Depth: 220 mm
- Height: 43.6 mm
