Description

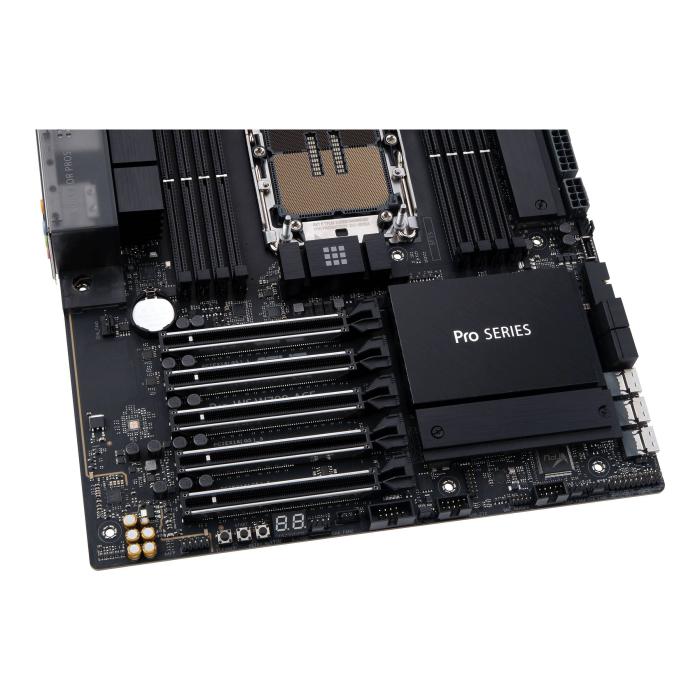

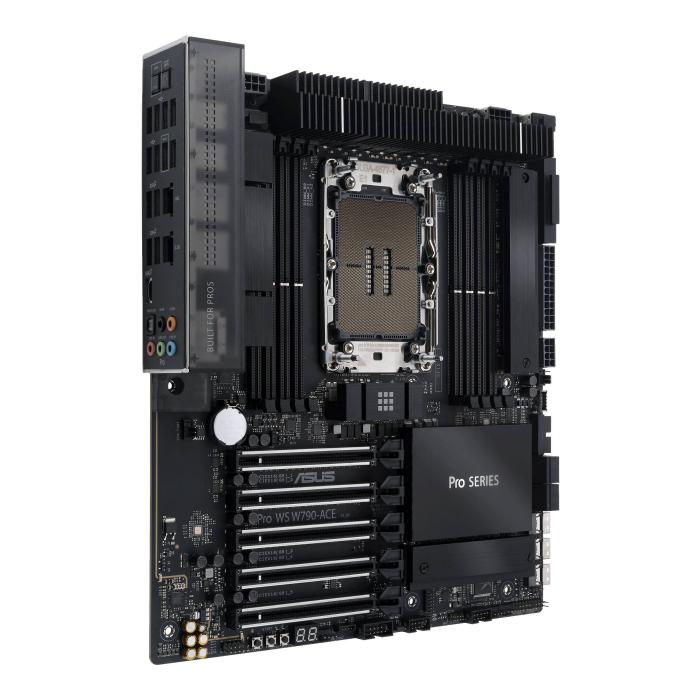

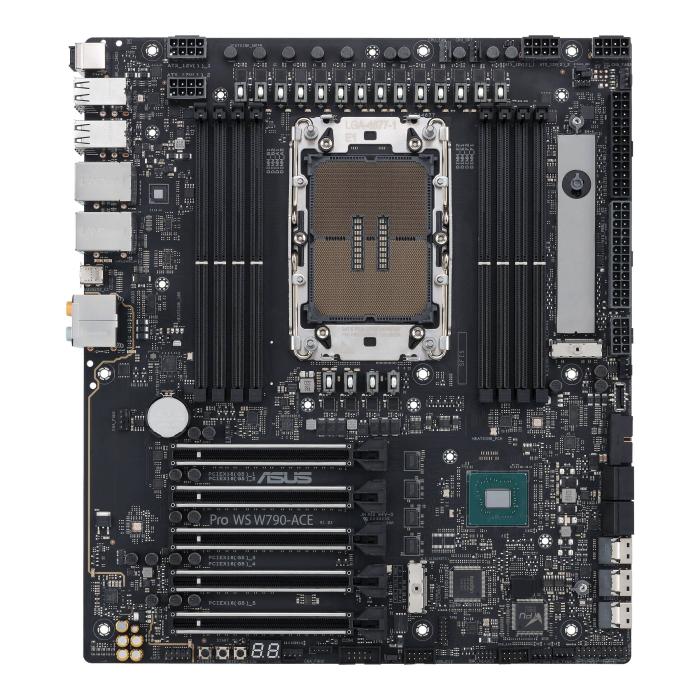

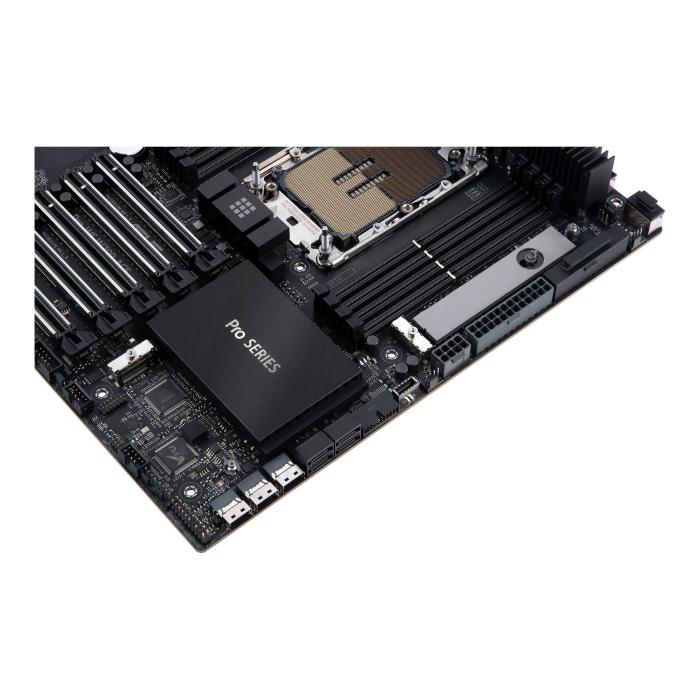

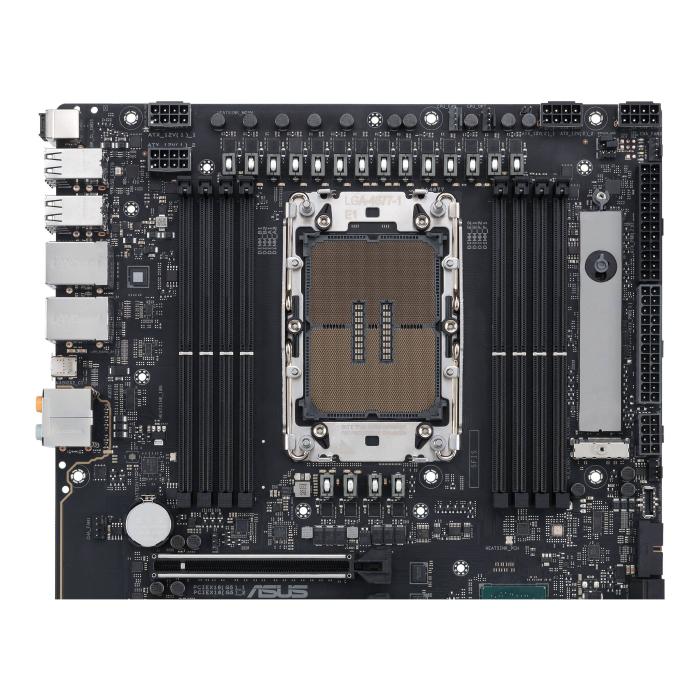

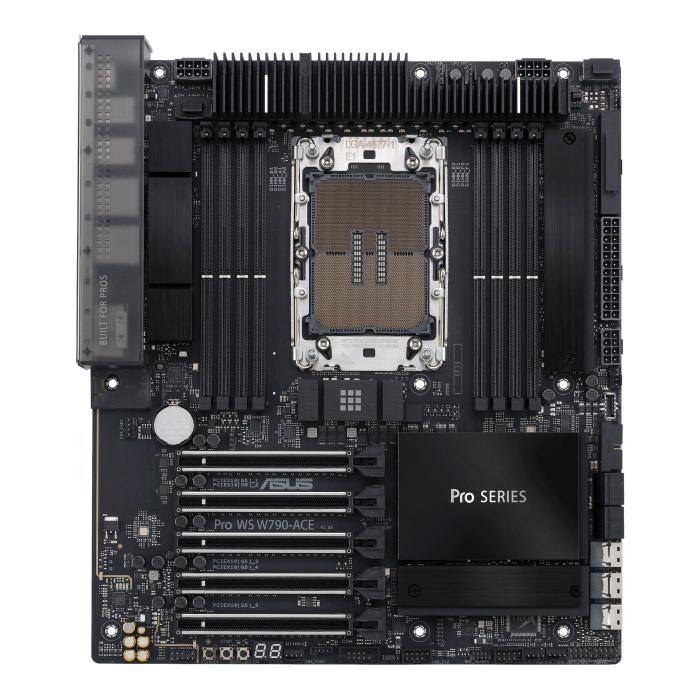

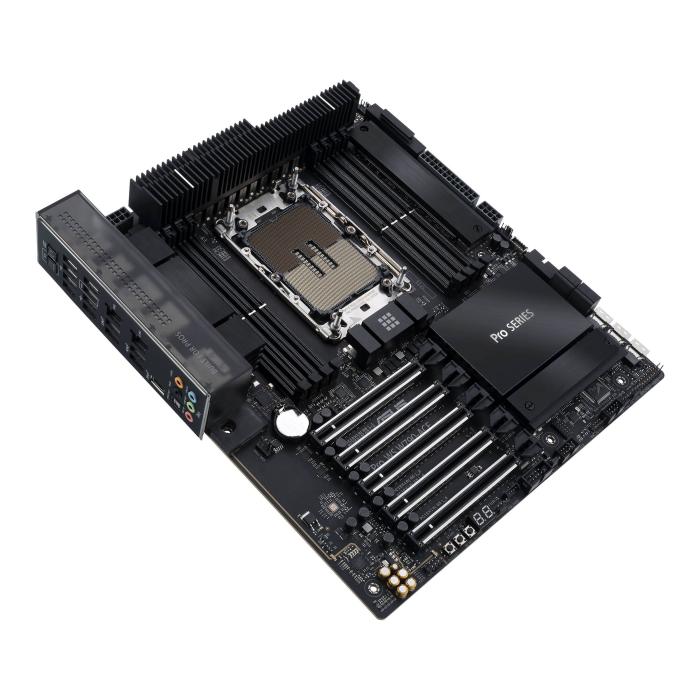

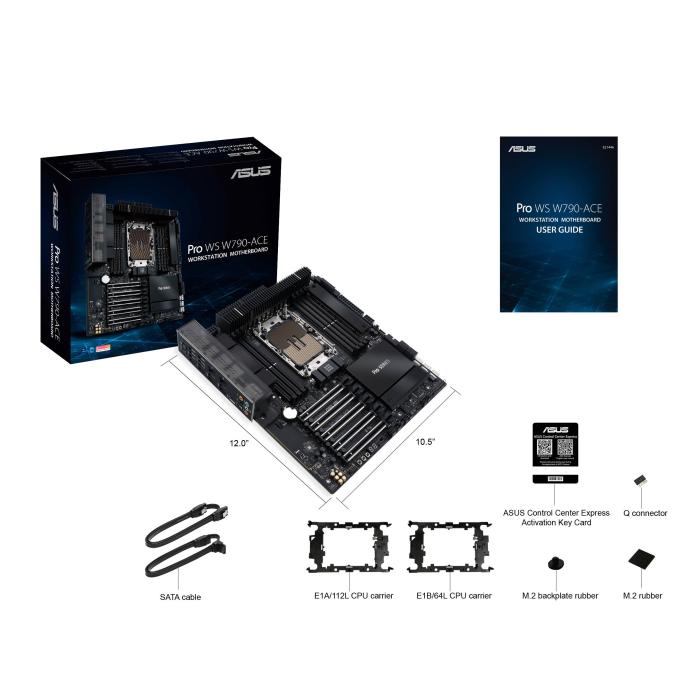

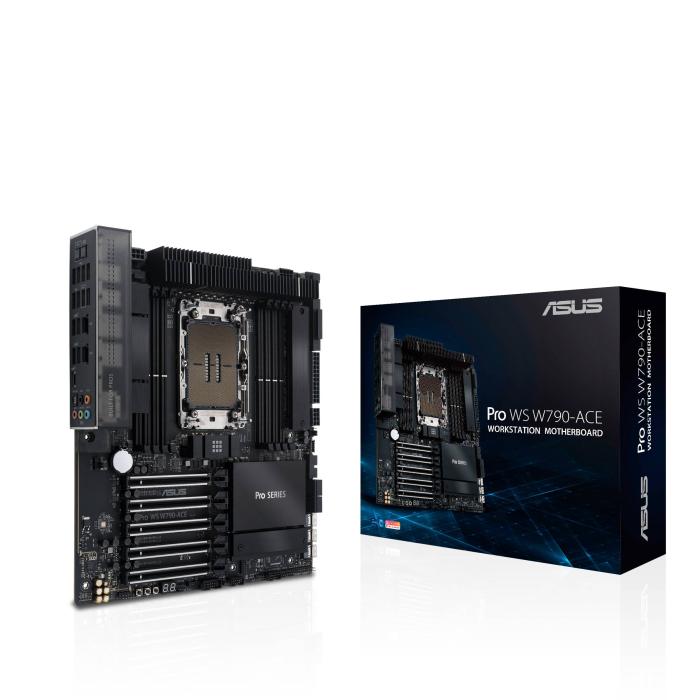

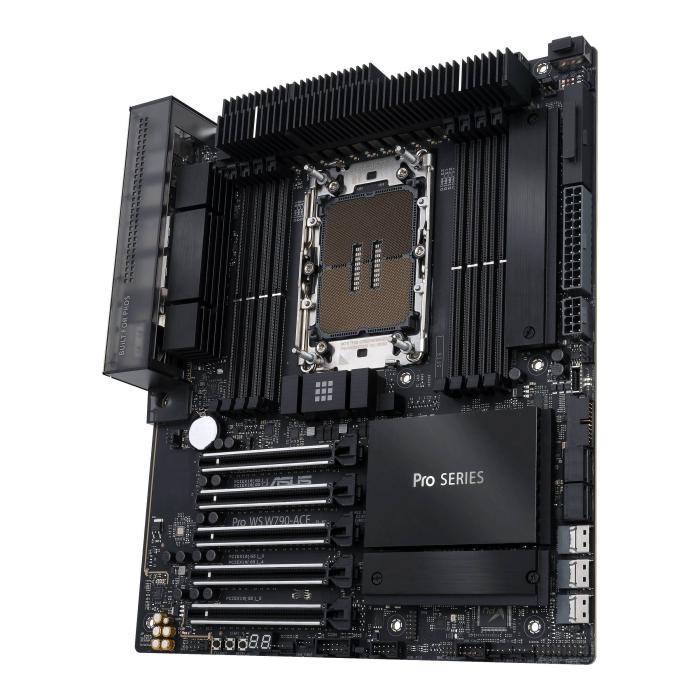

ASUS Pro WS W790-ACE motherboard with LGA 4677 (Socket E) socket and SSI CEB form factor, designed for Intel Xeon W processors of the W-3400 and W-2400 series. It features eight DIMM slots for DDR5-SDRAM memory with ECC support, configured in four channels and capable of reaching up to 2 TB total capacity. For storage, it offers four SATA III connectors and six M.2 slots compatible with HDD and SSD drives, as well as support for RAID levels 0, 1, 5, and 10. It includes a 12 V power connector to ensure power supply to the board.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 4677 (Socket E)
- Compatible processor series: Intel Xeon W
- Intel Xeon series: W-3400, W-2400
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 8
- Memory slots type: DIMM
- Memory channels: Quad-channel
- ECC сompatibility: ECC
- Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MHz
- Maximum internal memory: 2 TB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 5
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- TPM connector: Yes
- 12V power connector: Yes

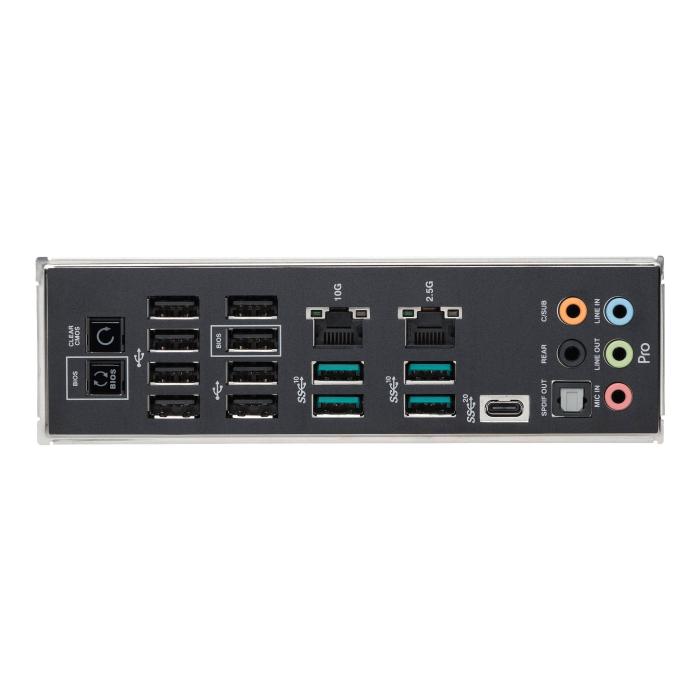

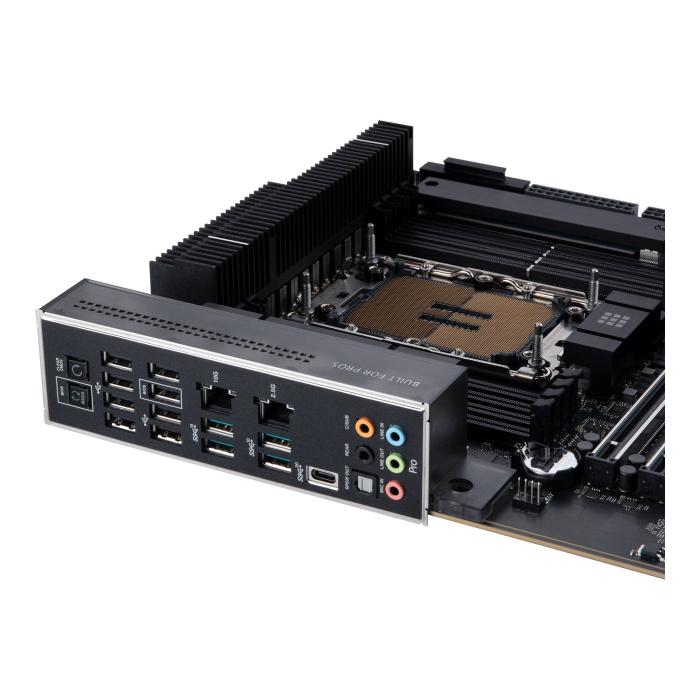

Rear panel I/O ports
- USB 2.0 ports quantity: 8
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 2
- Headphone outputs: 1
- Microphone in: Yes
- S/PDIF out port: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: Intel W790
- Audio chip: Realtek S1220A
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: Workstation
- Motherboard form factor: SSI CEB
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 x64, Windows 11

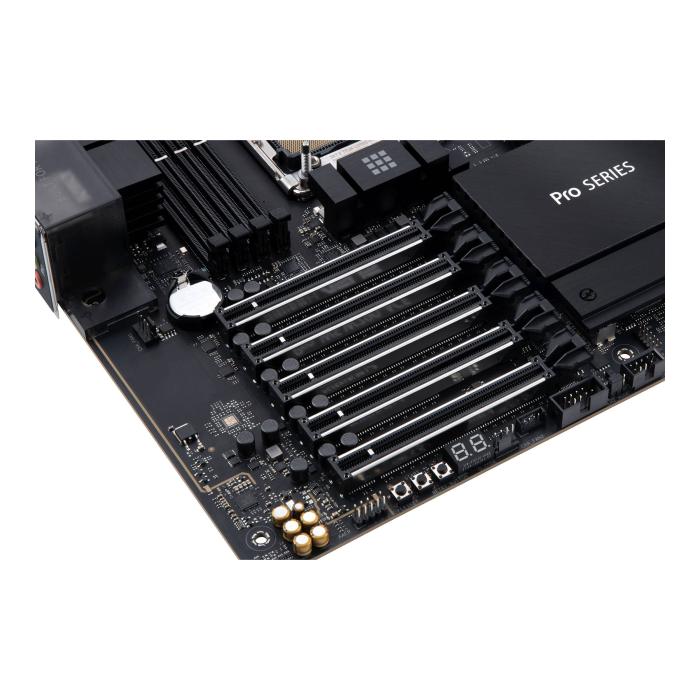

Expansion slots
- PCI Express x16 (Gen 5.x) slots: 5
- Number of M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 512 Mbit
- Clear CMOS button: Yes
Packaging data
- Package width: 370 mm
- Package depth: 312 mm
- Package height: 108 mm
- Package weight: 3.52 kg
Weight & dimensions
- Width: 305 mm
- Depth: 277 mm
- Height: 50 mm
Other features
- Weight: 1.81 kg
