Description

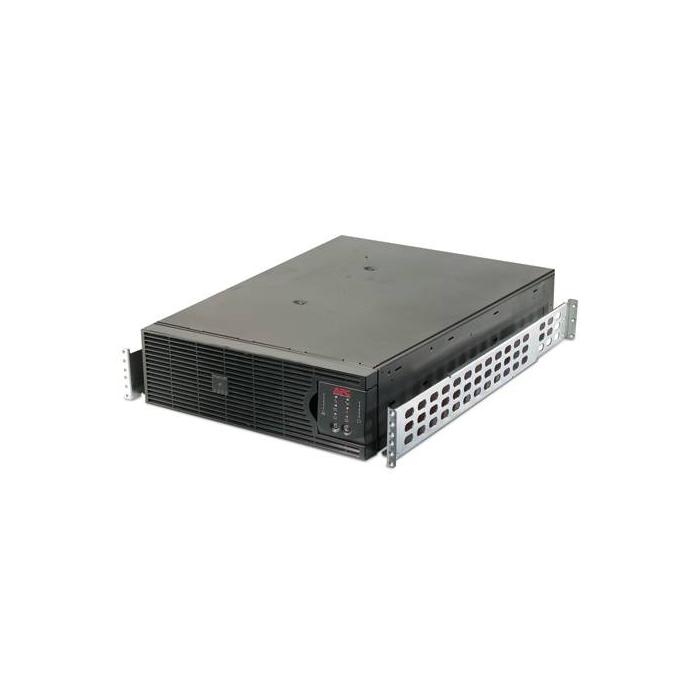

Smart-UPS RT 2200VA 230V - Marine
Specifications
Features
- Output power: 1540 W
- Input operation voltage (min): 100 V
- Input operation voltage (max): 280 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Surge energy rating: 480 J
- Efficiency: 92%
- Crest factor: 3:1
- Emergency Power Off (EPO): Yes
- Output voltage Total Harmonic Distortion (THD): 3%
- Noise level: 55 dB
- Audible alarm(s): Yes
- Output power capacity: 2.2 kVA
Ports & interfaces

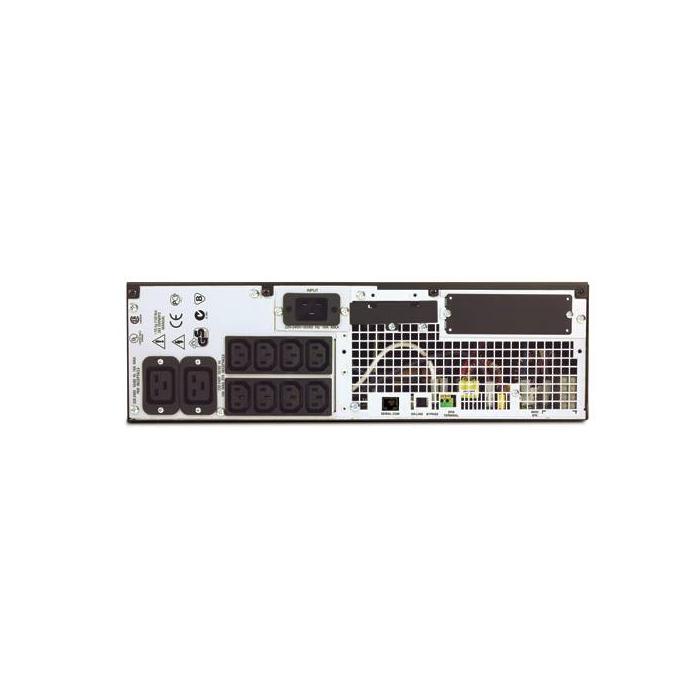

- AC outlet types: C13 coupler, C19 coupler
- AC outlets quantity: 10 AC outlet(s)
- Number of output IEC jumpers: 2
- Ethernet LAN (RJ-45) ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery recharge time: 2.5 h
Design
- Form factor: Rackmount
- Rack capacity: 3U
- Cable length: 2.5 m
- Product colour: Black
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Certificates
- Compliance certificates: RoHS
- Certification: CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2.
Weight & dimensions
- Width: 130 mm
- Depth: 660 mm
- Height: 432 mm
- Weight: 54.5 kg
Packaging data
- Package weight: 63.6 kg
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Dimensions (WxDxH): 130 x 660 x 432 mm
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
- Package dimensions (WxDxH): 603 x 980 x 347 mm
