Description

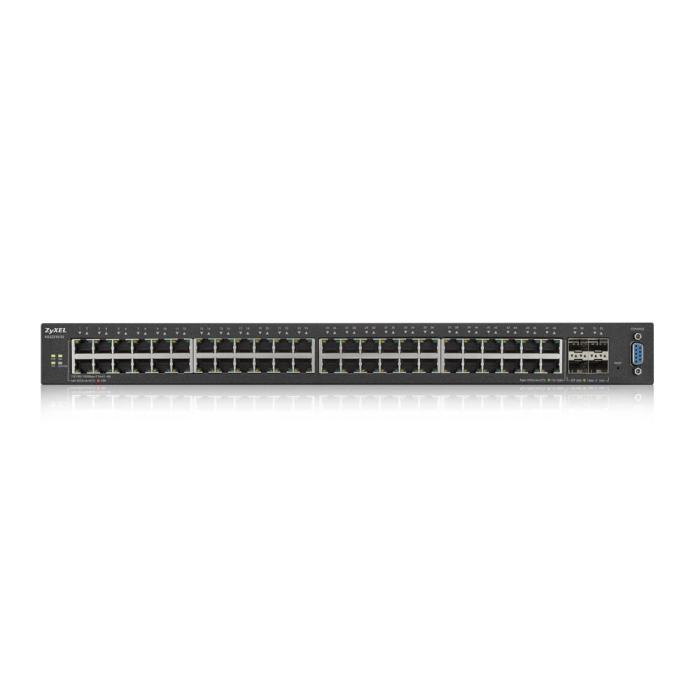

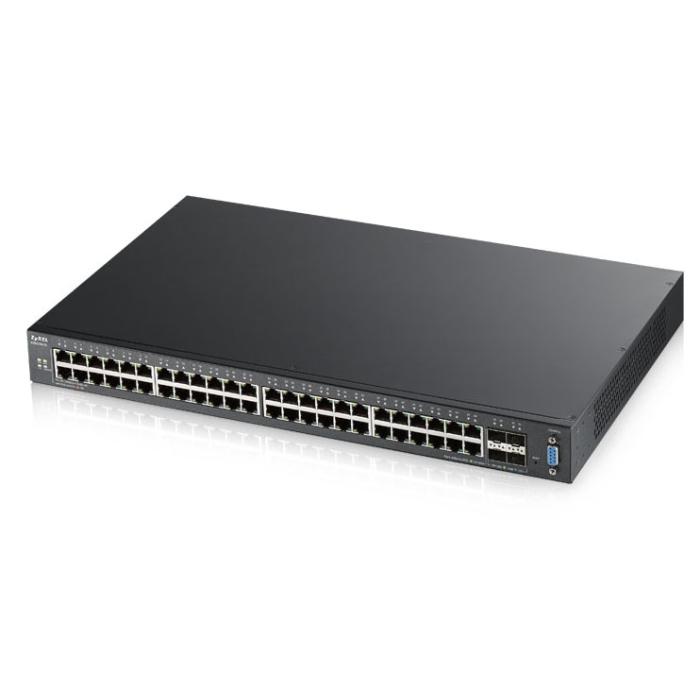

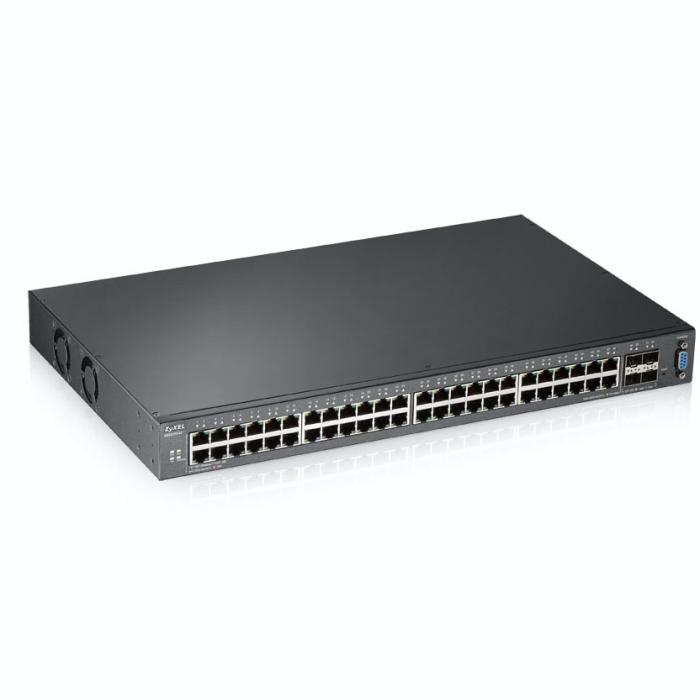

The Zyxel XGS2210-52 managed switch is an L2 layer device with 48 Gigabit Ethernet (10/100/1000) RJ-45 ports and 4 slots for SFP+ modules, which also supports 10G to link with the rest of the network. Its management is carried out via web, with system event logging, traffic categorisation and quality of service (QoS) to prioritise critical applications. It incorporates VLAN functions such as Private VLAN, Protocol-based VLAN and Port-based VLAN, ARP inspection, port mirroring, rate limiting and broadcast storm control, along with flow control and IP routing to segment traffic. It is mounted in a 1U chassis in black, with dimensions of 441 x 45 x 270 mm and a weight of 3.86 kg. It is an option designed to centralise the switching of an office network or a communications cabinet.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Traffic shaping: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 2925, RFC 3621, RFC 4022
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3
- 10G support: Yes
- Port mirroring: Yes
- IP routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- MAC address auto-learning supported: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Protocol-based VLAN, Port-based VLAN
Data transmission
- Switching capacity: 176 Gbit/s
- Throughput: 130.9 Mpps
- MAC address table: 16000 entries
- Number of queues: 8
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 1.5 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS, SNMP, SSH, SSH-2
- MAC address filtering: Yes
- SSH/SSL support: Yes
- BPDU filtering/protection: Yes
- Authentication: MAC-based authentication
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
- Safety: LVD, BSMI
- Electromagnetic compatibility: FCC 15 (A), CE (A), BSMI
Performance
- Noise level: 44.15 dB
- Plug and Play: Yes
- Mean time between failures (MTBF): 970594 h
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 45 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 153.3 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 270 mm
- Height: 45 mm
- Weight: 3.86 kg
Packaging content
- Cables included: AC
- Rack mount kit: Yes
Packaging data
- Package width: 622 mm
- Package depth: 358 mm
- Package height: 108 mm
- Package weight: 4.92 kg
Certificates
- Certification: RoHS
Logistics data
- Harmonized System (HS) code: 85176990
