Description

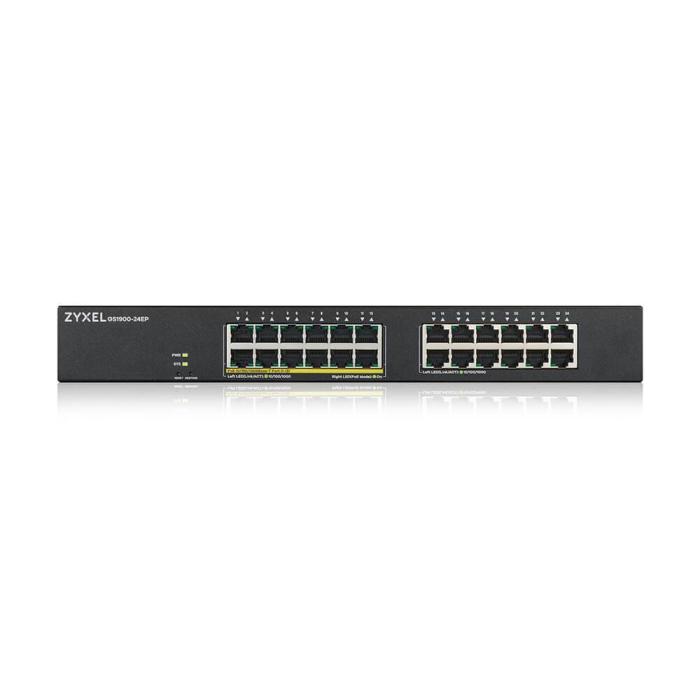

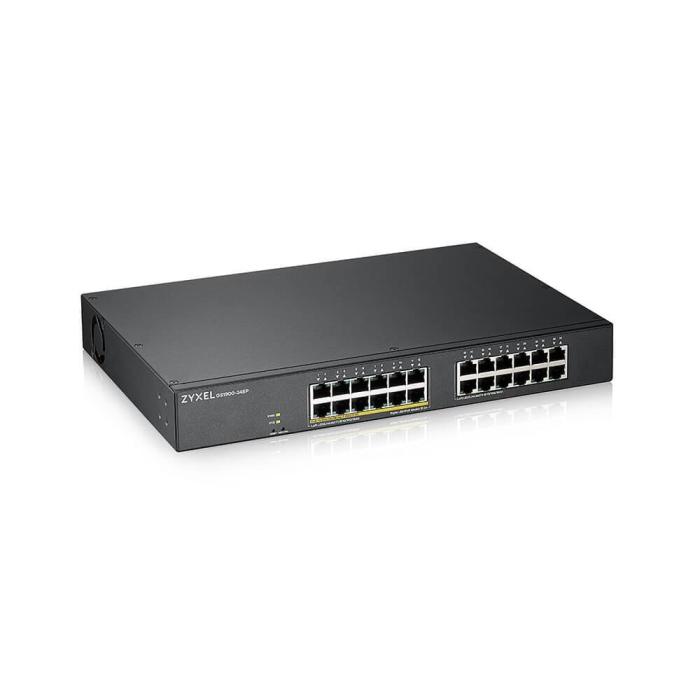

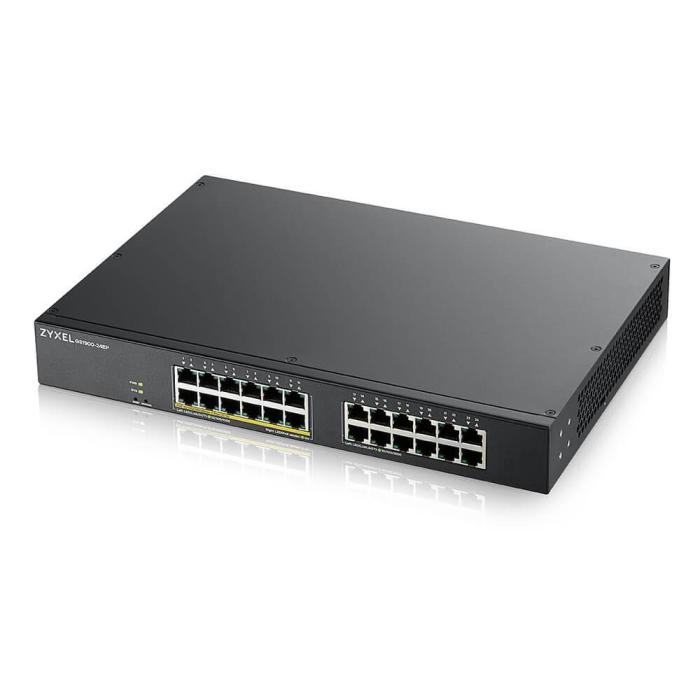

The Zyxel GS1900-24EP managed switch is an L2 layer network device with 24 Gigabit Ethernet (10/100/1000) RJ-45 ports, designed to centralise the wired connectivity of an office or installation. It incorporates management functions such as QoS support, flow control and MAC address auto-learning, as well as auto MDI/MDI-X and full duplex operation to adapt the link according to the connected device. It manages virtual LANs through Tagged VLAN, VLAN Identifier and Voice VLAN, which allows traffic to be segmented and voice over IP to be prioritised. Its power connector is AC-in and it supports Cat5 and Cat5e cables, with transfer speeds of 10, 100 and 1000 Mbit/s. The device comes in black, with a weight of 2.48 kg and dimensions of 330 x 44 x 330 mm (width x height x depth), a compact casing that fits into communications cabinets.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- MIB support: RFC 1213 MIB II RFC 2819 RMON (group 1, 2, 3, 9) RFC 1215 generic traps RFC 1493 bridge Zyxel private common MIB
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

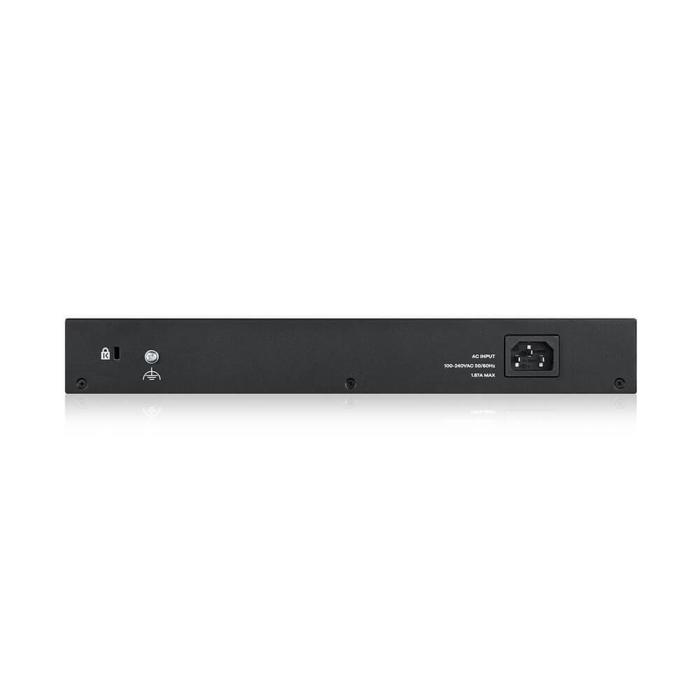

- Power connector: AC-in jack
Network
- Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 80
- 10G support: No
- Cable types supported: Cat5, Cat5e
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: No
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- MAC address auto-learning supported: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Data transmission
- Switching capacity: 48 Gbit/s
- Forwarding rate: 35.7 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 0.525 MB
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS
- MAC address filtering: Yes
- Static port security: Yes
- SSH/SSL support: Yes
- Password protection: Yes
- Authentication type: HWTACACS+, IEEE 802.1x, RADIUS
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Black
- Reset button: Yes
Performance
- Noise level: 26 dB
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 206.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
Weight & dimensions
- Width: 330 mm
- Depth: 330 mm
- Height: 44 mm
- Weight: 2.48 kg
Packaging content
- Cables included: AC
- Quick start guide: Yes
- User guide: Yes
- Manual: Yes
Packaging data
- Package type: Box
Logistics data
- Harmonized System (HS) code: 85176990
