Description

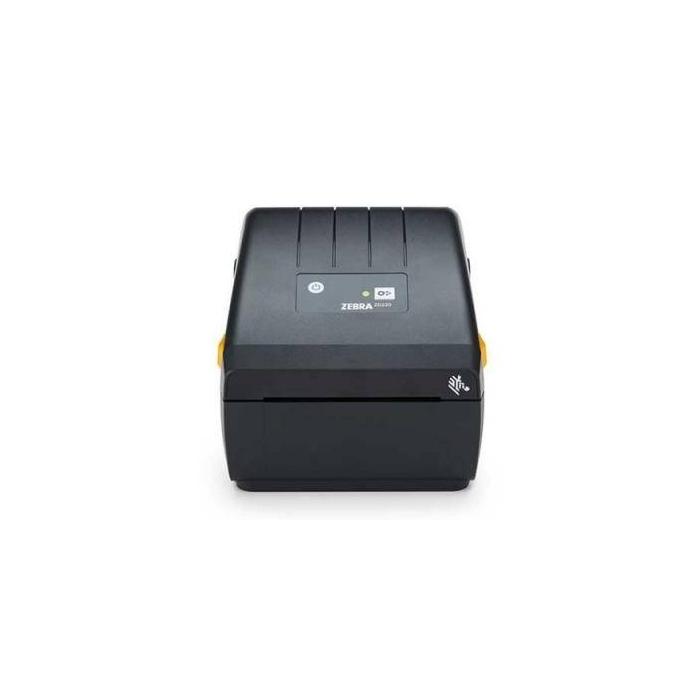

The Zebra ZD230 is a thermal transfer label printer with a maximum resolution of 203 x 203 DPI, presented in black and weighing 1.1 kg. Its dimensions of 197 x 191 x 267 mm (width x height x depth) make it a compact device for the workstation. It reaches a print speed of 152 mm/s and supports a maximum print width of 10.4 cm. It works with paper of a supported width of 25.4 to 112 mm and a media thickness of 0.08 to 0.1905 mm, with a core diameter of 1.27 cm. It includes 128 MB of internal memory and 256 MB of Flash memory to manage print jobs. Its connectivity is wired and it includes a USB 2.0 port, and it is compatible with the EZPL, XML and ZPL II languages. Connect the printer to the computer via that USB 2.0 port and send the jobs in any of the supported languages.
Specifications
Printing
- Print technology: Thermal transfer
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 152 mm/sec
- Maximum printing width: 10.4 cm
- Standard printer languages: EZPL,XML,ZPL II
Design
- Product colour: Black
- Display: No
Memory
- Internal memory: 128 MB
- Flash memory: 256 MB
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: No
- Wi-Fi: No
- Bluetooth: No
- USB 2.0 ports quantity: 1
Paper handling
- Maximum label width: 11.2 cm
- Maximum label length: 0.991 m
- Maximum roll diameter: 12.7 cm
- Media thickness: 0.08 - 0.1905 mm
- Supported paper width: 25.4 - 112 mm
- Core diameter: 1.27 cm
Performance
- Built-in barcodes: 1D,2D,AZTECCODE,CODABAR (NW-7),Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Data Matrix,EAN13,EAN8,Industrial 2/5,Interleave
- Number of fonts: 23
- Ribbon width: 10.9 cm
- Ribbon length: 300 m
- Certification: IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 30
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Operating temperature (T-T): 4.4 - 41 °C
- Storage temperature (T-T): -40 - 60 °C
Weight & dimensions
- Width: 197 mm
- Depth: 267 mm
- Height: 191 mm
- Weight: 1.1 kg
Packaging content
- Quantity per pack: 1 pc(s)
- Cables included: AC
