Description

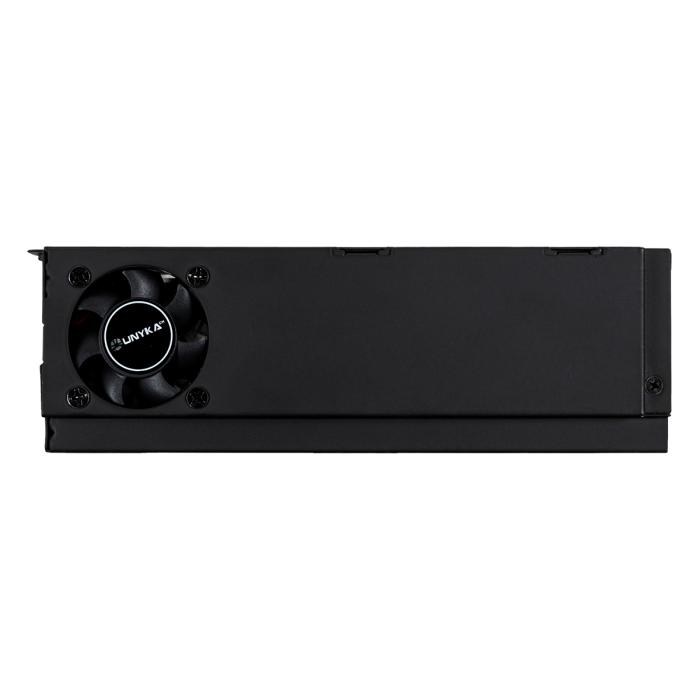

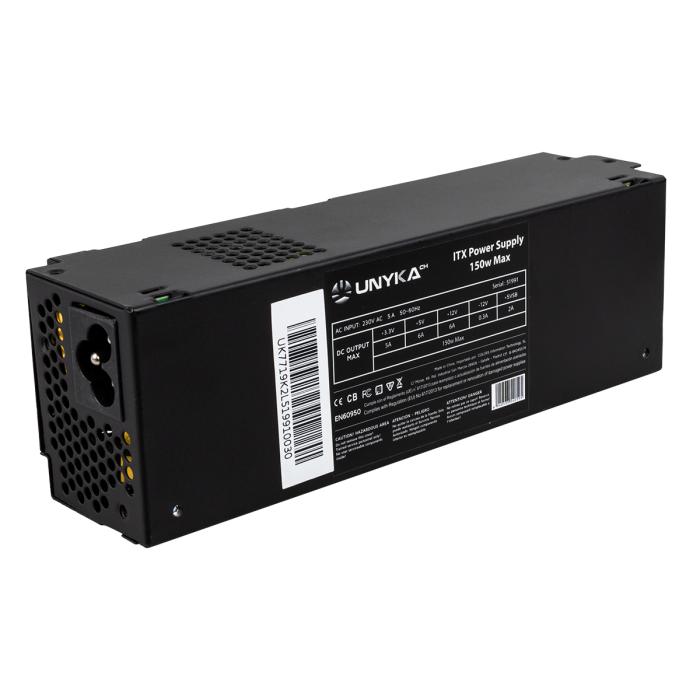

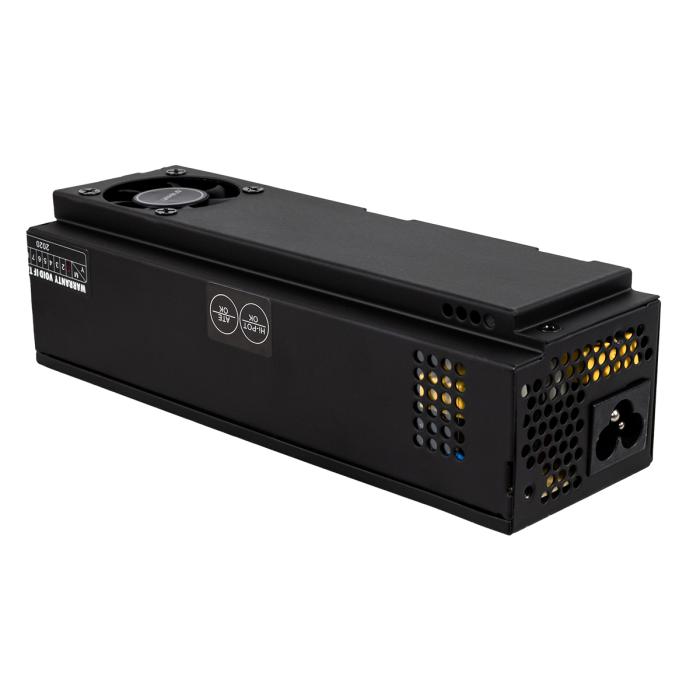

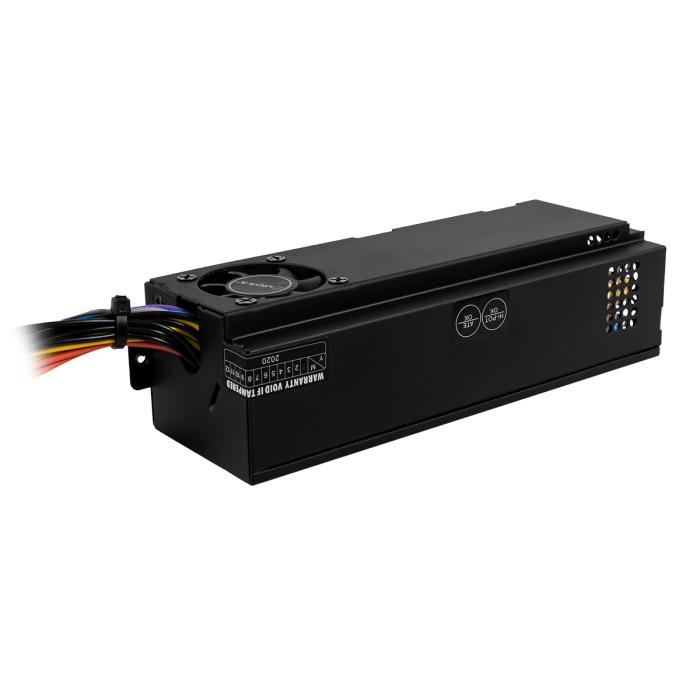

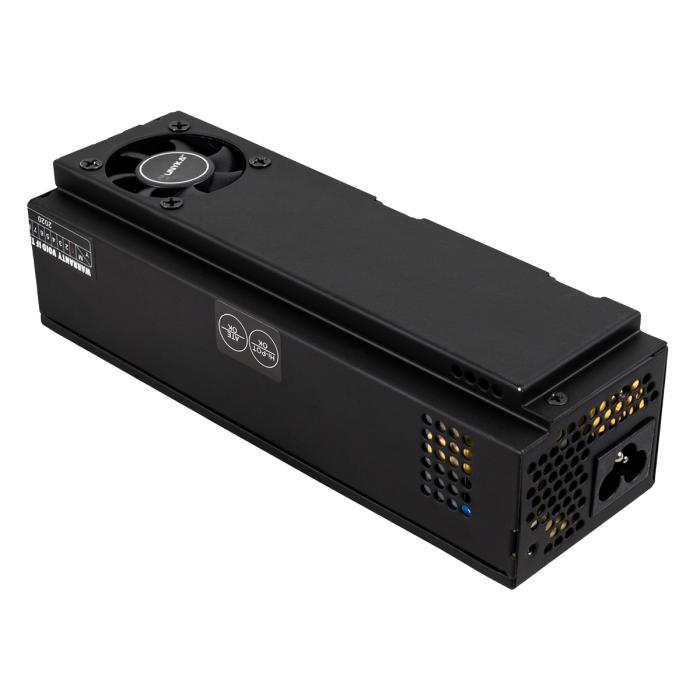

The UNYKAch ITX 150 by UNYKACH is a 150 W total power Flex ATX form factor power supply unit, with 20+4 pin connectors for ATX motherboards and in black. It measures 85 x 40 x 170 mm and weighs 530 g, so it fits easily into compact cases. It supports an alternating current input of 230 V with a frequency of 50 to 60 Hz, and offers a maximum output current of 6 A on the +12 V rail, as well as 5 A on the +3.3 V rail and 6 A on the +5 V rail. In terms of connectors, it includes one SATA power connector with a 480 mm long cable, one 4-pin Molex peripheral connector and one 4-pin CPU P4 connector. The power supply unit includes protection functions against overcurrent, overvoltage, overload, short circuit and undervoltage, which helps to safeguard the computer's components against electrical unforeseen events.
Specifications
Power
- Total power: 150 W
- AC input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Combined power (+3.3V): 16.5 W
- Combined power (+12V): 72 W
- Combined power (+5V): 30 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 10 W
- Max output current (+3.3V): 5 A
- Max output current (+12V1): 6 A
- Max output current (+5V): 6 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2 A
- Power protection features: Over current, Over power, Over voltage, Overload, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 28 cm
- Number of SATA power connectors: 1
- SATA power cable length: 480 mm
- Peripheral (Molex) power connectors (4-pin): 1
- Peripheral (Molex) power cable length: 570 mm
- CPU P4 connector (4-pin): 1
- Cabling type: Non-Modular
Performance
- Supported motherboard form factors: Mini-ITX
- Purpose: PC
- Power supply unit (PSU) form factor: Flex ATX
- ATX version: 2.31
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 4 cm
- Number of fans: 1 fan(s)
- Fan location: Top
Certificates
- Compliance certificates: RoHS
- Certification: EN60950, CE, TÜV
Weight & dimensions
- Width: 85 mm
- Depth: 170 mm
- Height: 40 mm
- Weight: 530 g
Packaging data
- Package width: 55 mm
- Package depth: 170 mm
- Package height: 50 mm
- Package weight: 533 g
- Package type: Box
