Description

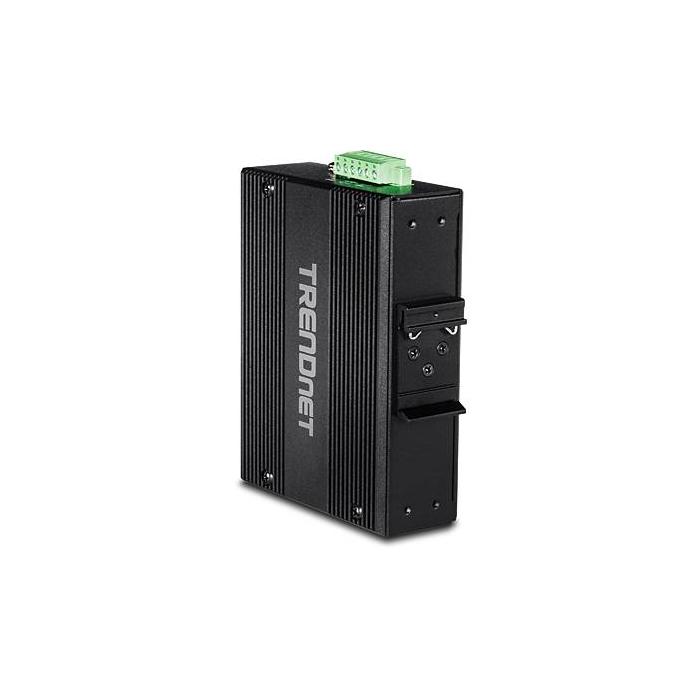

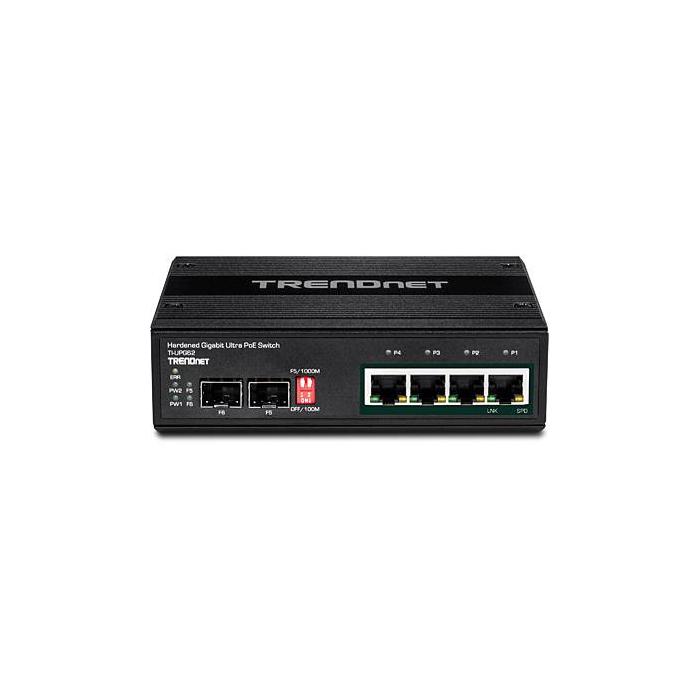

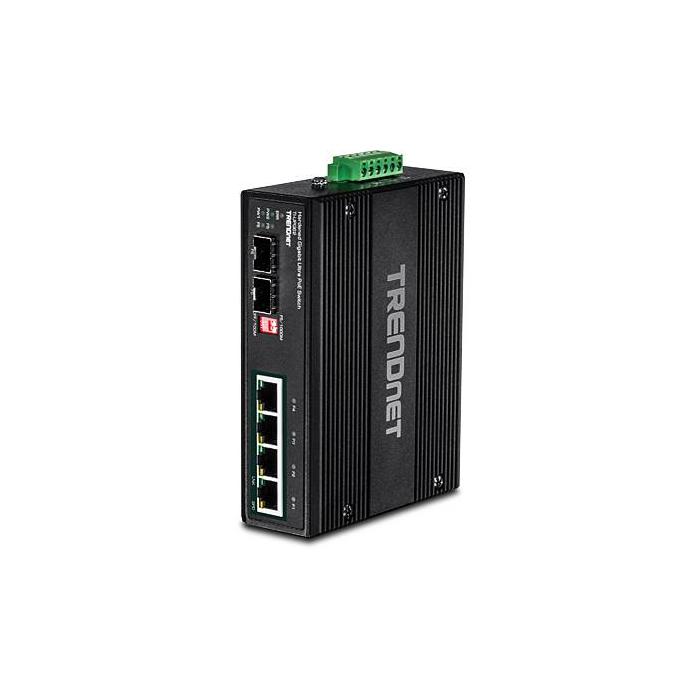

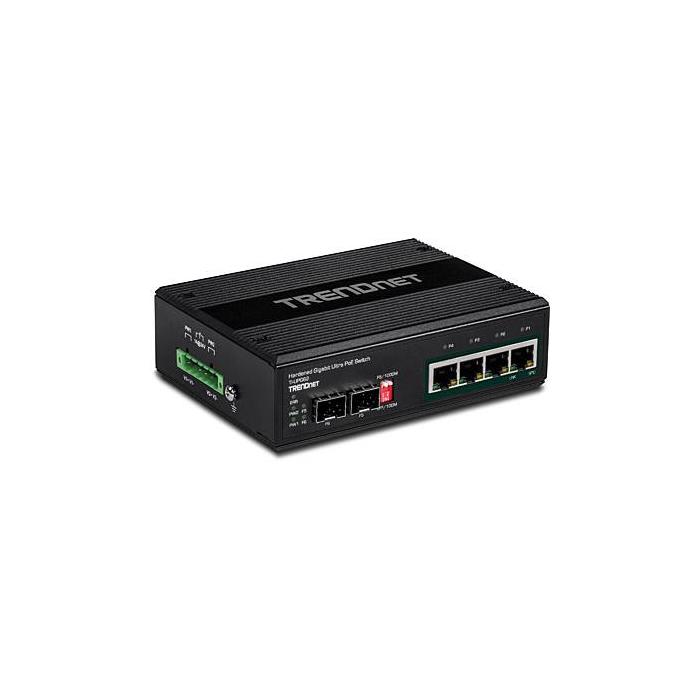

The Trendnet TI-UPG62 switch, an unmanaged Layer 2 model, offers four Gigabit Ethernet ports (10/100/1000) with PoE support and two SFP slots to expand the network via fibre. This black unit integrates auto-negotiation, flow control, full duplex, and MAC address auto-learning features, with a 1024-entry table and a throughput of 8.9 Mpps. It complies with IEEE 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, and 802.3x standards, and supports jumbo frames to optimise data transfer. Its plug-and-play operation facilitates the direct connection of devices without prior configuration, using store-and-forward to manage traffic efficiently.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 4
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 12 Gbit/s
- Throughput: 8.9 Mpps
- MAC address table: 1024 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- International Protection (IP) code: IP30
- Wall mountable: Yes

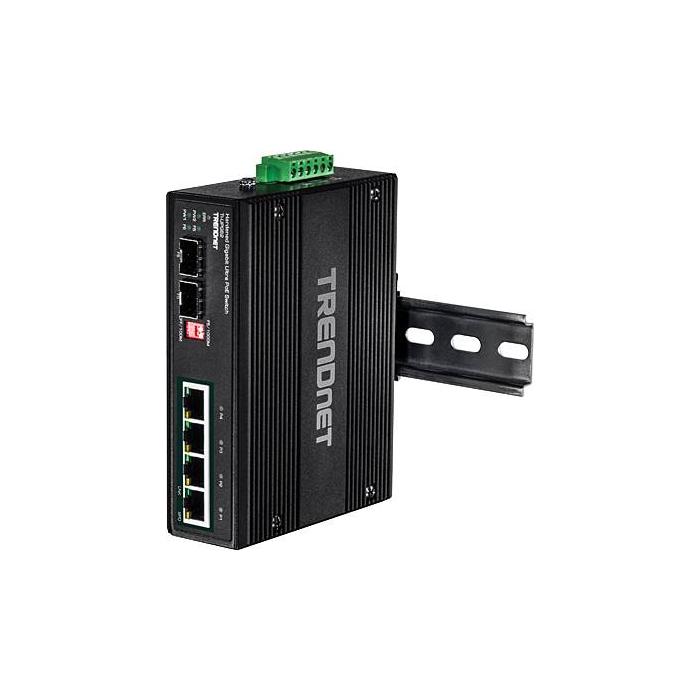

- DIN rail mounting: Yes
Power
- Redundant power supply (RPS) support: Yes
- Input voltage: 48 - 56 V
- Power consumption (max): 5.76 W
- Power protection features: Overload
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Total Power over Ethernet (PoE) budget: 240 W
Other features

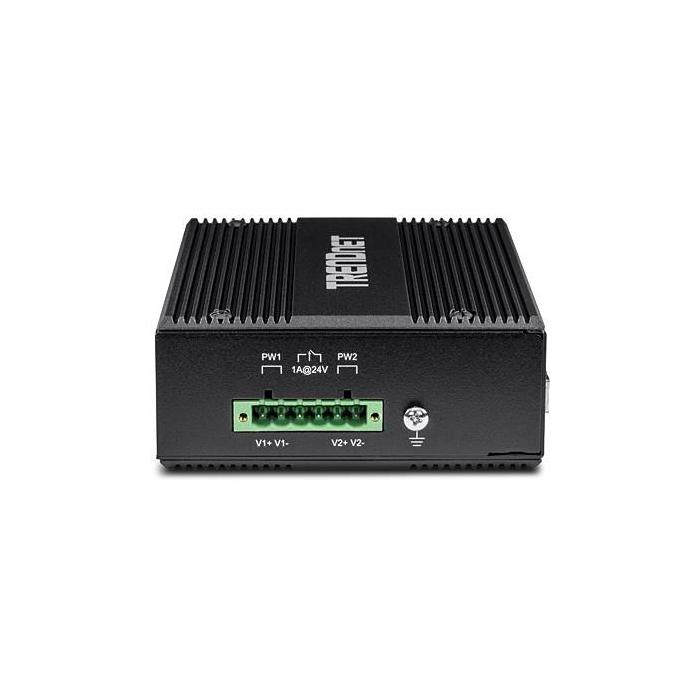

- Terminal block port: Yes
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 143 mm
- Depth: 105 mm
- Height: 36 mm
- Weight: 514 g
Packaging content
- Quick start guide: Yes
Packaging data

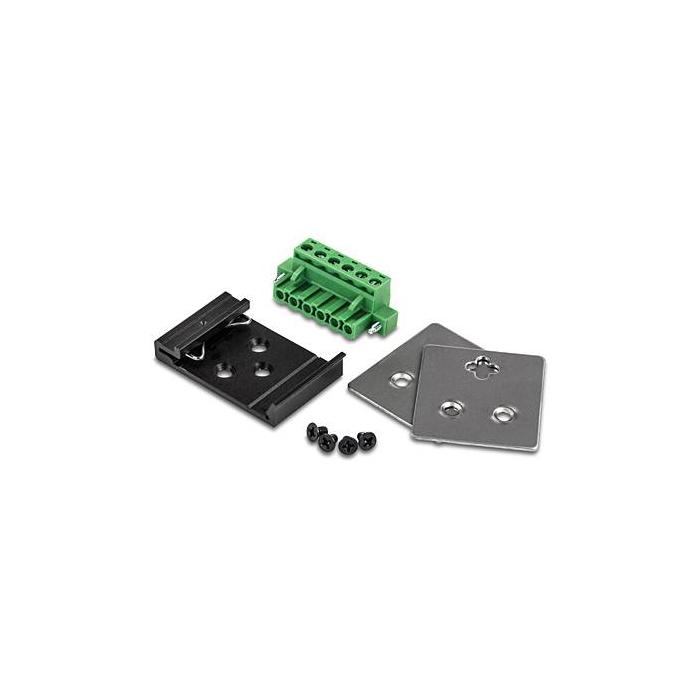

- Terminal block included: Yes
- Mounting brackets included: Yes
Certificates
- Certification: FCC, CE RoHS
Logistics data
- Harmonized System (HS) code: 85176990
