Description
Specifications
Network
- Converter input interface: 100Base-TX
- Converter output interface: 100Base-FX
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Ethernet interface type: Fast Ethernet
- Ethernet LAN data rates: 10, 100 Mbit/s
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
- Fiber ethernet cabling technology: 100BASE-FX
- Flow control support: Yes
- Auto-negotiation: Yes
- Duplex system: Full, Half
- Maximum data transfer rate: 200 Mbit/s
Performance
- Maximum transfer distance: 30000 m
- Wavelength: 1310 nm
- Fiber mode structure: Single-mode
- Fiber cable diameters supported (core/cladding): 9/125 µm
- Link budget: 7 dB
Features
- Internal: No
- LED indicators: Yes
- Product colour: Black
- Housing material: Metal
- International Protection (IP) code: IP40

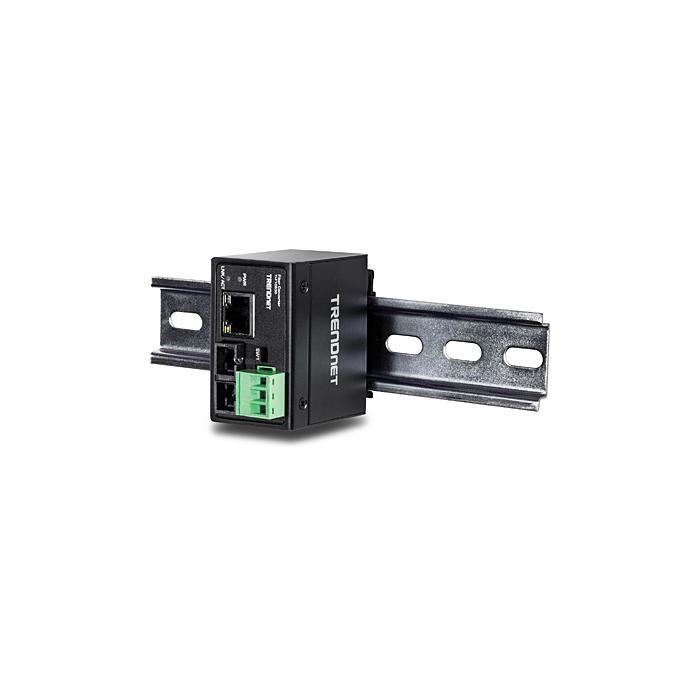

- DIN rail mounting: Yes
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
Power
- Input voltage: 12 - 60 V
- Power consumption (max): 1.92 W
Weight & dimensions
- Width: 60 mm
- Depth: 50 mm
- Height: 35 mm
- Weight: 90 g
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Packaging content
- Quick installation guide: Yes
Certificates
- Certification: FCC, CE
Logistics data
- Harmonized System (HS) code: 85176990
