Description

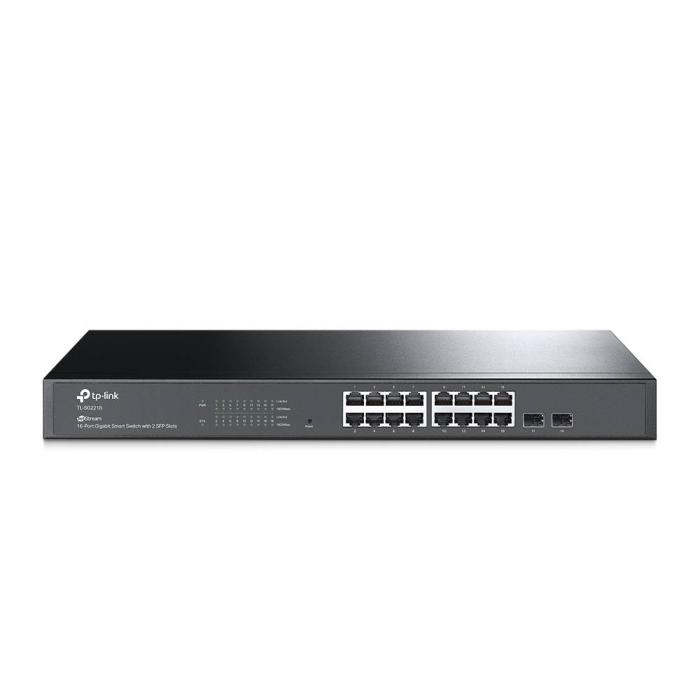

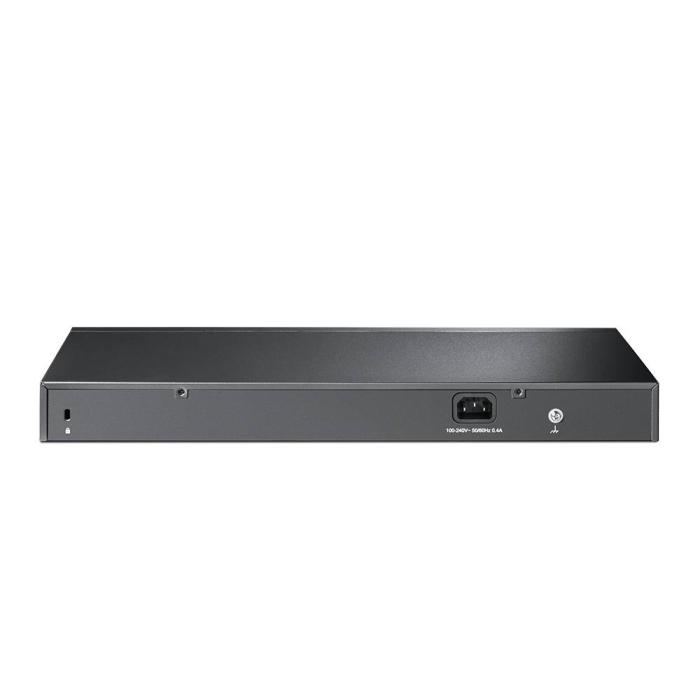

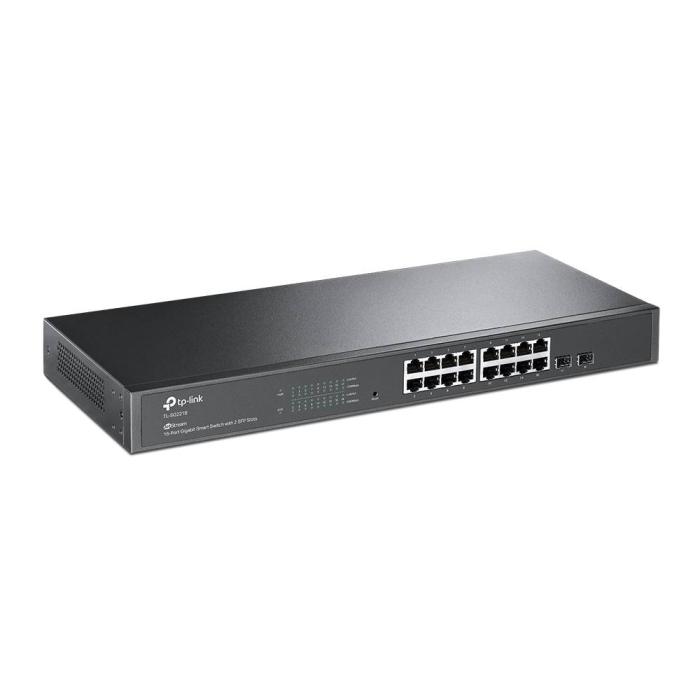

The TP-Link Omada SG2218 managed switch is an L2/L2+ device with 16 Gigabit Ethernet ports (10/100/1000) and 2 slots for SFP modules, presented in black and with dimensions of 440 x 44 x 180 mm (width x height x depth). Its management can be carried out via web or through the cloud, and it includes ARP inspection and system event logging to facilitate network control. It incorporates QoS support and up to 4000 VLANs, which allows traffic to be segmented and critical services to be prioritised. It also offers storm transmission control, link aggregation, spanning tree protocol and port mirroring to monitor traffic without interfering with it. Its 1U format and its 16 Gigabit copper ports make it suitable for installations that need to concentrate wired connections with advanced management.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L2+
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 16
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
- 10G support: No
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- VLAN support: Yes
- Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 4000
Data transmission
- Switching capacity: 36 Gbit/s
- Forwarding rate: 26.8 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Static route: Yes
- Number of static routes: 32
- Number of IP interfaces: 16
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 4.1 MB
Security
- DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
Multicast features
- Multicast support: Yes
- Multicast Listener Discovery (MLD) snooping: Yes
Protocols
- Management protocols: SNMPv1/v2c/v3, SNTP
- GARP VLAN Registration Protocol (GVRP): Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
Performance
- Fanless: Yes
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 12.3 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 41.97 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 180 mm
- Height: 44 mm
Packaging content
- Cables included: AC, LAN (RJ-45)
- Quick start guide: Yes
Certificates
- Certification: CE, FCC, RoHS
