Description

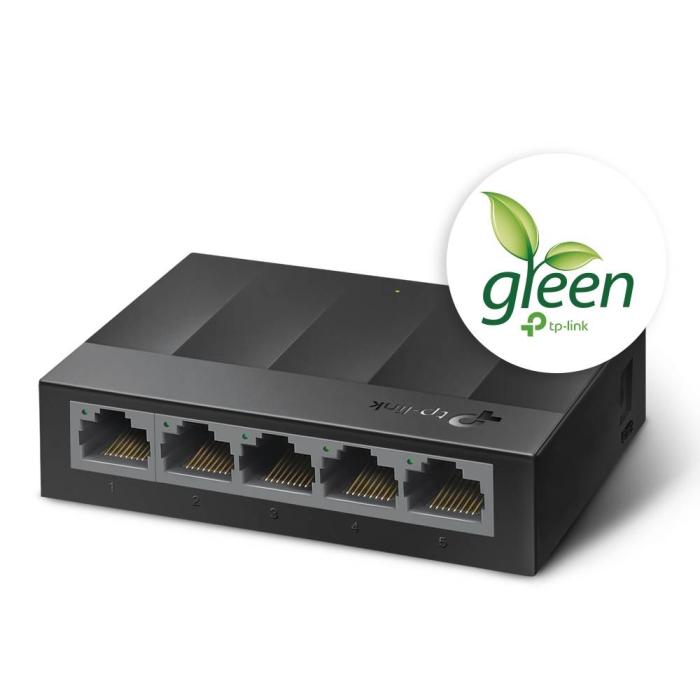

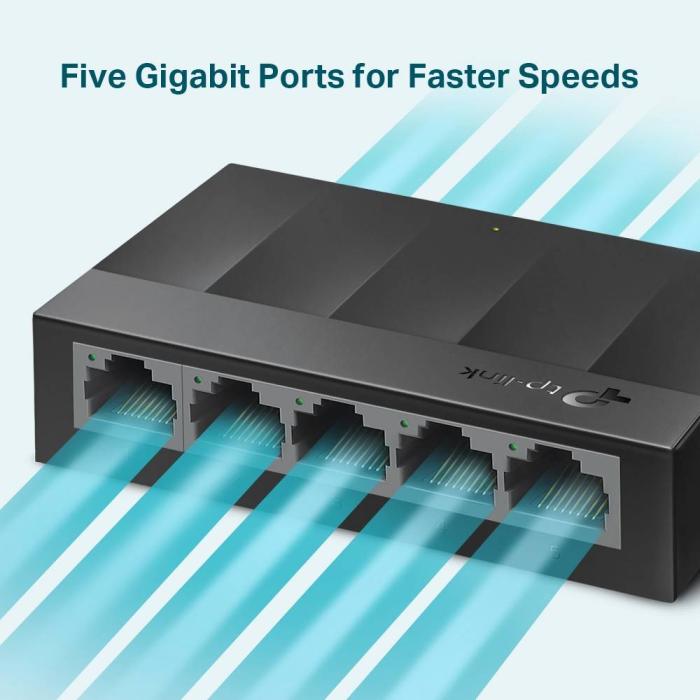

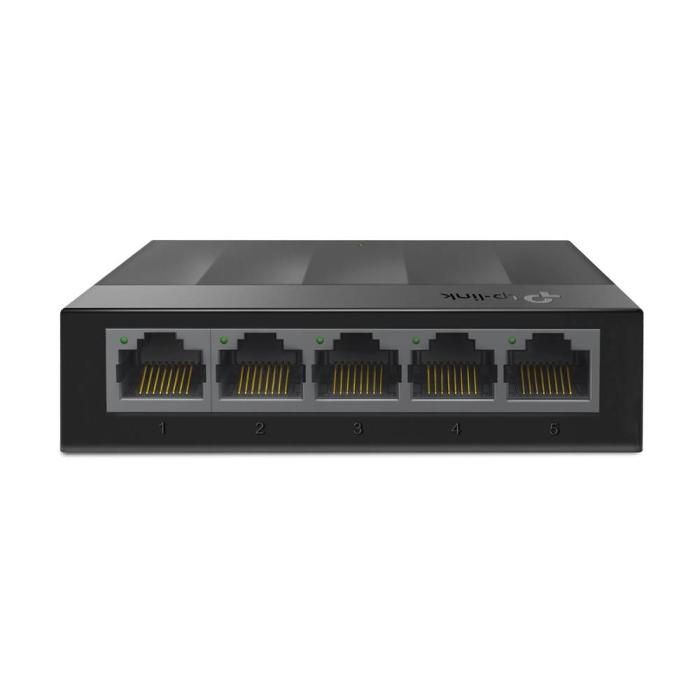

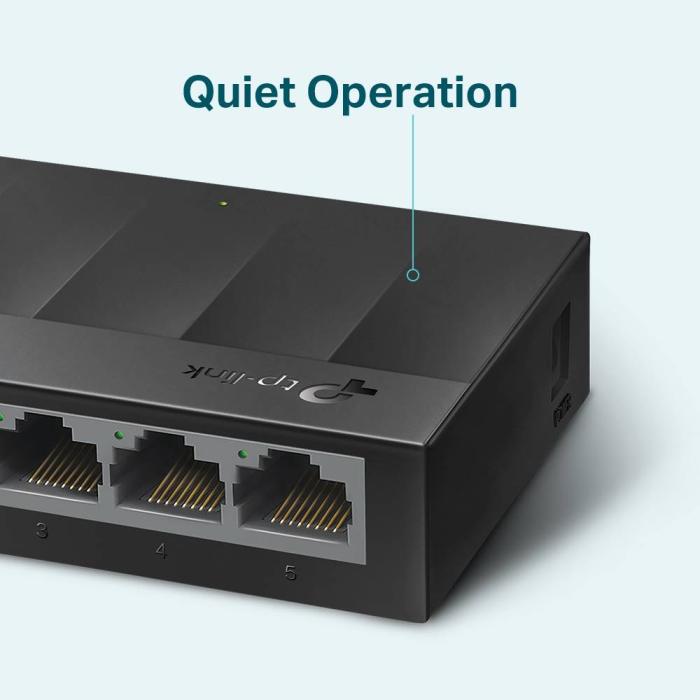

The TP-Link LS1005G switch is an unmanaged device in black, with a plastic casing, designed to expand network connectivity in home or small office environments. It features 5 Gigabit Ethernet RJ-45 ports (10/100/1000), so you can connect several devices and take advantage of gigabit network speeds. Its dimensions are 90 x 23 x 72 mm (width x height x depth), a compact format that makes it easy to place on a desk or shelf. It is compatible with the IEEE 802.3i, IEEE 802.3u and IEEE 802.3x standards, and includes auto-negotiation and auto MDI/MDI-X, so you do not need special cables or to configure the ports manually. It also supports flow control and Jumbo frames of up to 16000, with a packet buffer memory of 1.5 MB. Its switching capacity reaches 10 Gbit/s and the forwarding rate is 7.4 Mpps, with a MAC address table of 2000 entries.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 5
Network
- Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 10 Gbit/s
- Forwarding rate: 7.4 Mpps
- MAC address table: 2000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 16000
- Packet buffer memory: 1.5 MB
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Plastic
- LED indicators: Activity, Link, Power
- Wall mountable: Yes
Power
- Power source: DC
- Power supply included: Yes
- Input current: 0.6 A
- Input voltage: 5 V
- Power consumption (max): 3.7 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 12.617 BTU/h
Weight & dimensions
- Width: 90 mm
- Depth: 72 mm
- Height: 23 mm
Packaging content
- Quick start guide: Yes
Packaging data

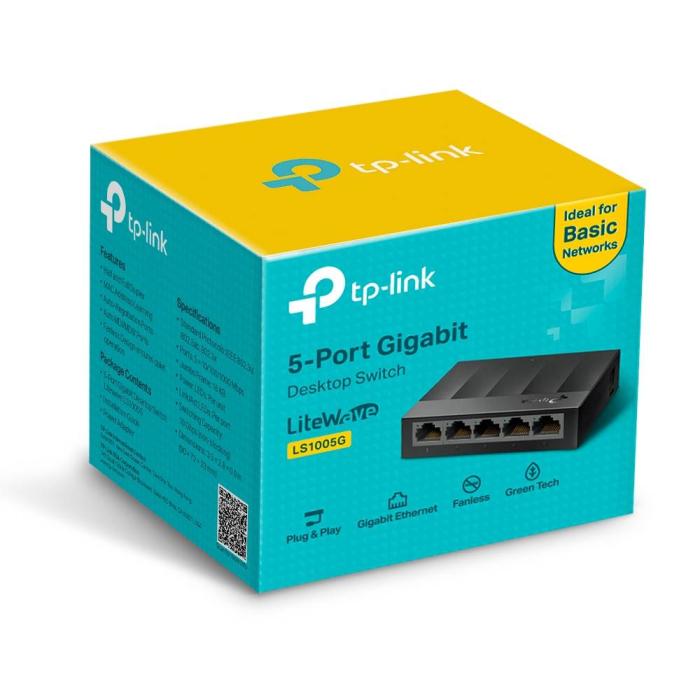

- Package type: Box
- Package width: 91 mm
- Package depth: 94 mm
- Package height: 84 mm
- Package weight: 180 g
Certificates
- Certification: CE, FCC, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
