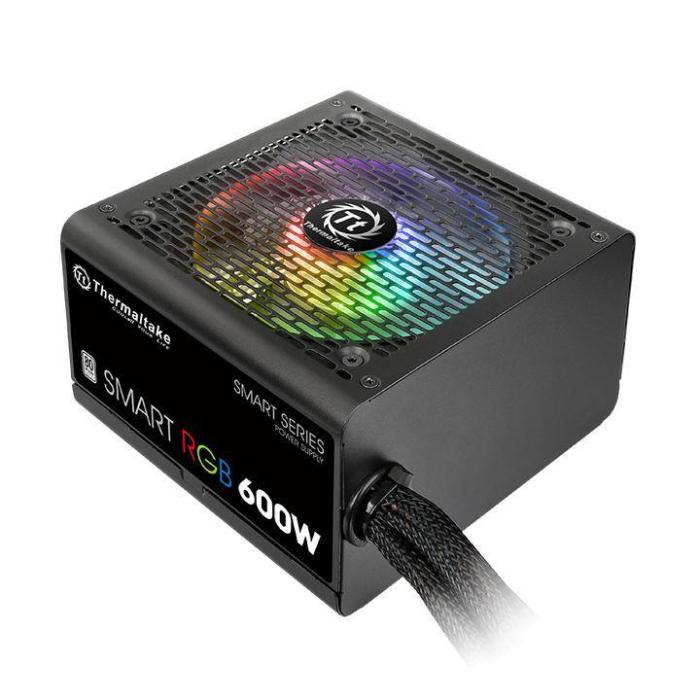

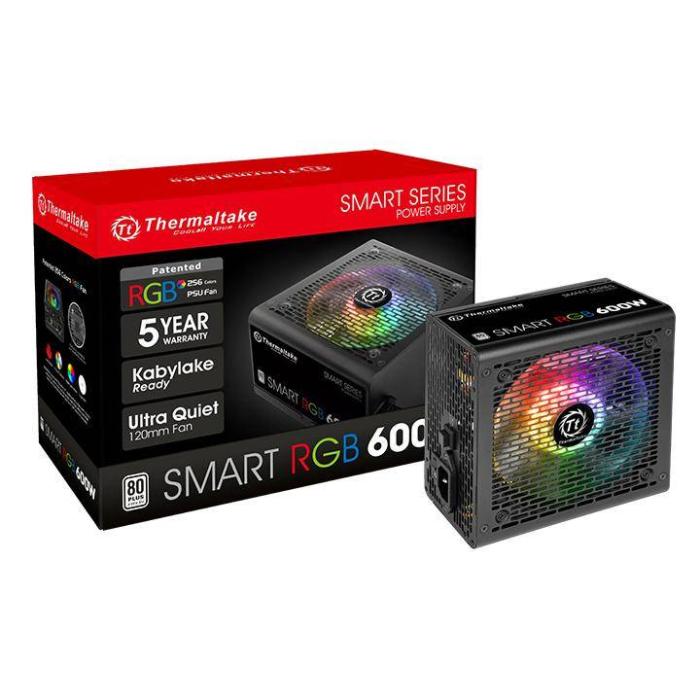

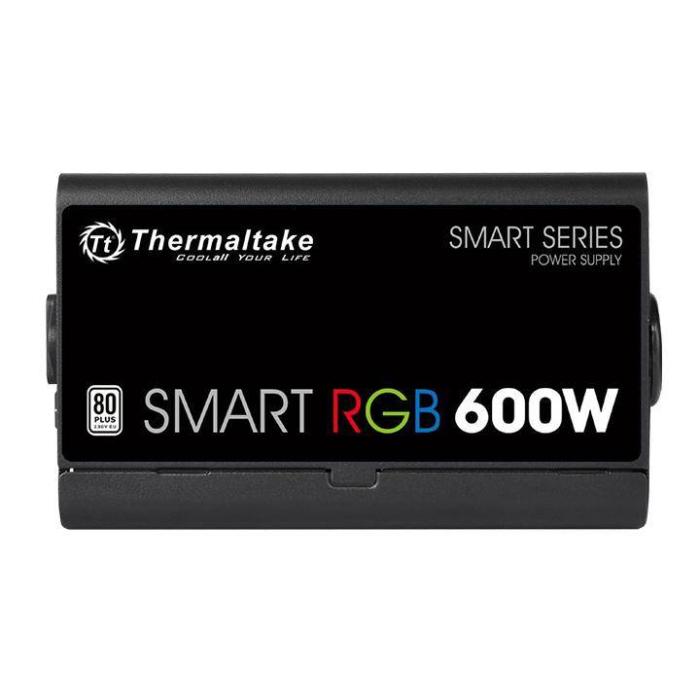

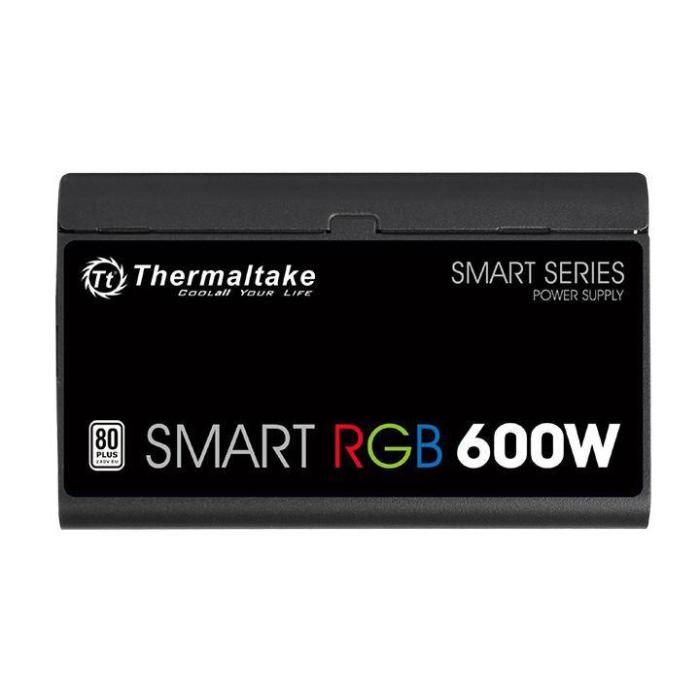

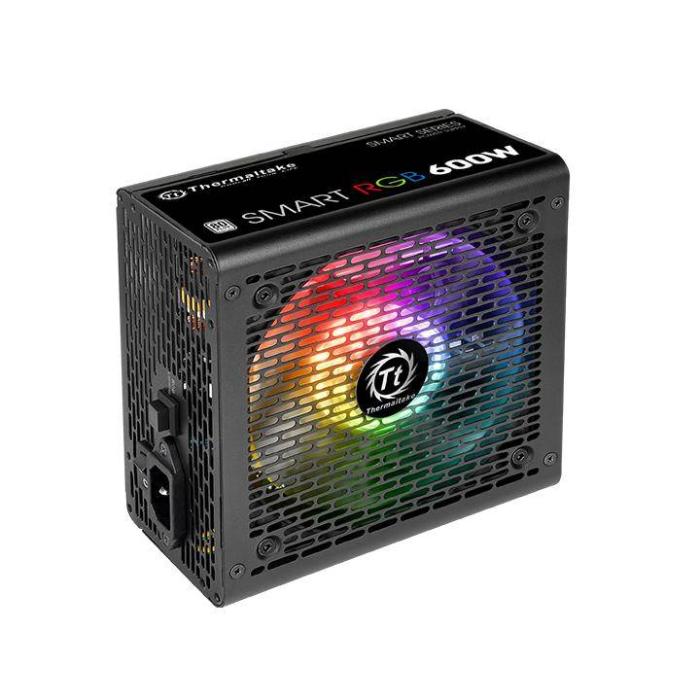

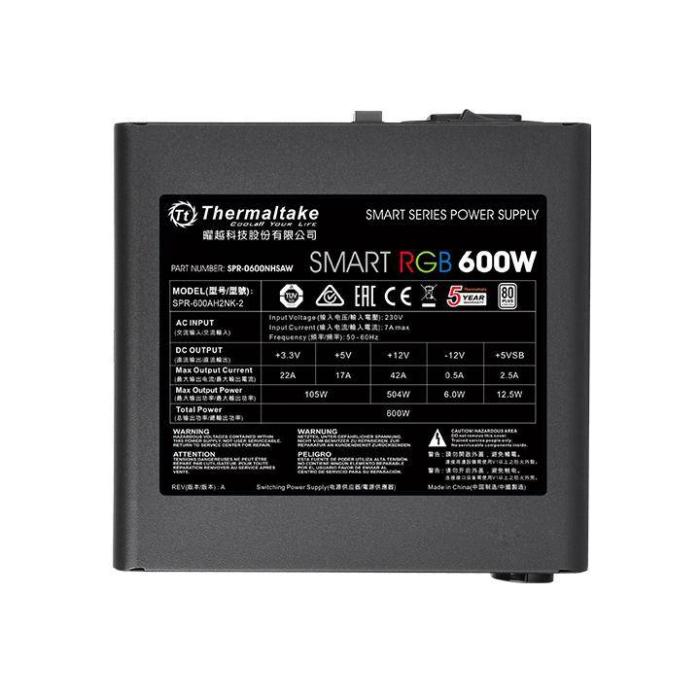

Thermaltake Smart RGB power supply unit 600 W 20+4 pin ATX ATX Black
More info
Brand: THERMALTAKE
78.35 €
SKU:
80475
PRC:
203876
EAN:
4711246870468
PN:
PS-SPR-0600NHSAW-1
Description
Specifications
Power
- Total power: 600 W
- AC input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Input current: 7 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 105 W
- Combined power (+12V): 504 W
- Combined power (+5V): 105 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 42 A
- Max output current (+5V): 17 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 2.5 A
- Hold time: 16 ms
- Efficiency: 86%
- Power Good signal delay range: 100 - 500 ms
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 50 cm
- Number of SATA power connectors: 5
- Peripheral (Molex) power connectors (4-pin): 4
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 55 cm
- ATX power connector (20+4 pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 10 cm
- PCI Express connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.3
- Noise level: 28.1 dB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- Illumination: Yes
Operational conditions
- Operating temperature (T-T): 5 - 40 °C
- Storage temperature (T-T): -40 - 55 °C
- Operating relative humidity (H-H): 20 - 85%
- Storage relative humidity (H-H): 10 - 95%
Safety regulation & standards
- Safety: CE/CB/TUV/ EAC
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Packaging data
- Package type: Box
Logistics data
- Harmonized System (HS) code: 84733020
Other features
- Illumination colour: Multi
