Description

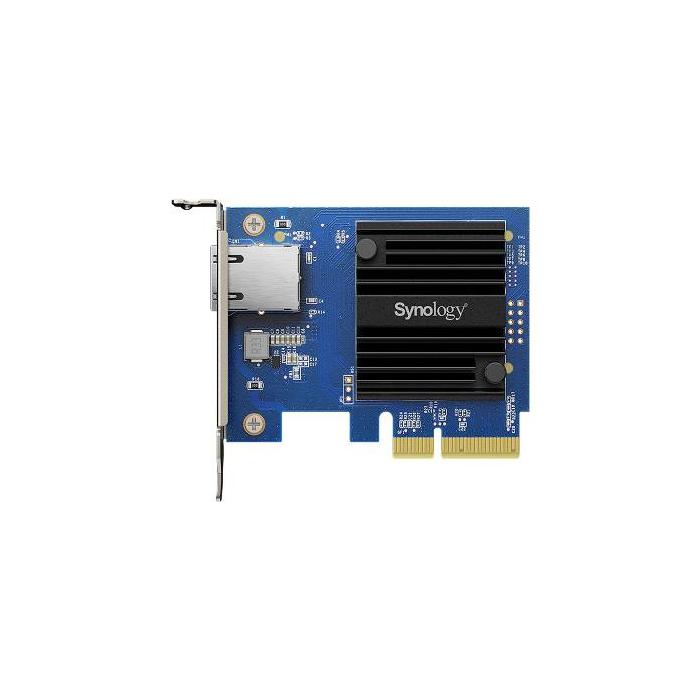

The internal network card Synology E10G30-T1 offers 10 Gbit/s Ethernet connectivity via an RJ-45 port, with support for jumbo frames of 9000 bytes. Its PCI Express 3.0 host interface and full-height format make it suitable for servers, and it is compatible with standards such as IEEE 802.3an and speeds of 100, 1000, 2500, 5000 and 10000 Mbit/s. Its blue and silver design integrates into professional equipment, operating in a relative humidity range of 5 to 95% and supporting storage temperatures from -20 to 60 °C. It is a wired solution to expand or upgrade your server's network with high transfer performance.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
- PCI version: 3.0
- PCI Card form factor: Full-height (low-profile)
Network
- Maximum data transfer rate: 10000 Mbit/s
- Networking standards: IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet
- Ethernet LAN data rates: 100, 1000, 2500, 5000, 10000 Mbit/s
- Jumbo frames support: Yes
- Jumbo frames: 9000
Design
- Component for: Server
- Product colour: Blue, Silver
- Internal: Yes
- Compatible products: FS6400, FS2500, HD6500, SA6400, RS2825RP+, DS1825+, RS2423RP+, RS2423+, DS1823xs+, RS822RP+, RS822+, DS2422+, RS2821RP+, RS2421R
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 82 mm
- Depth: 13 mm
- Height: 68.1 mm
