Description

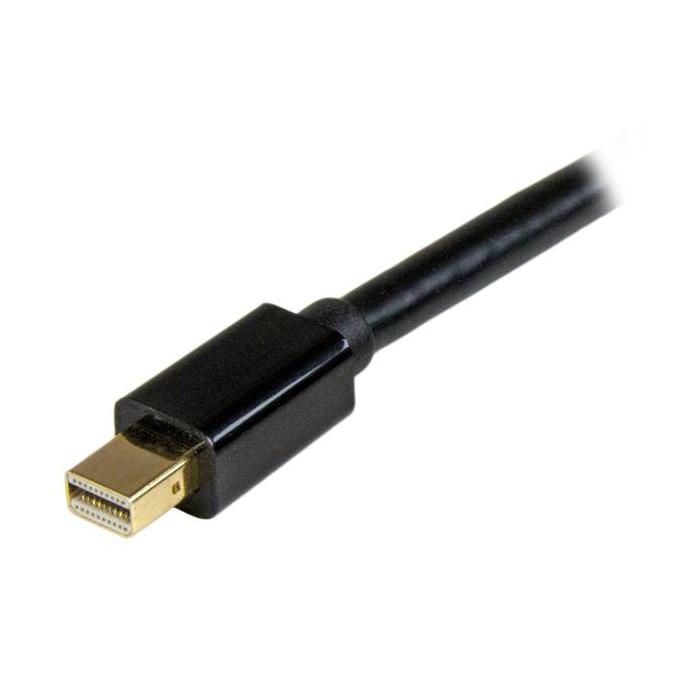

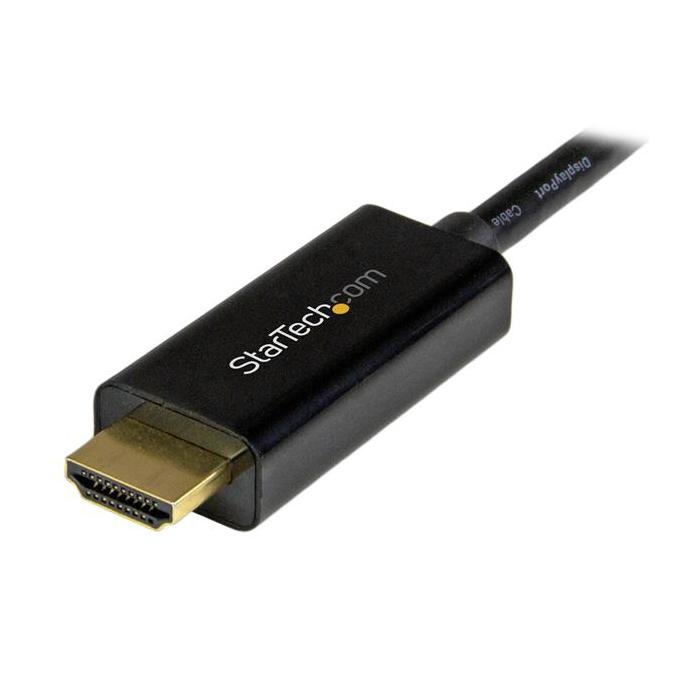

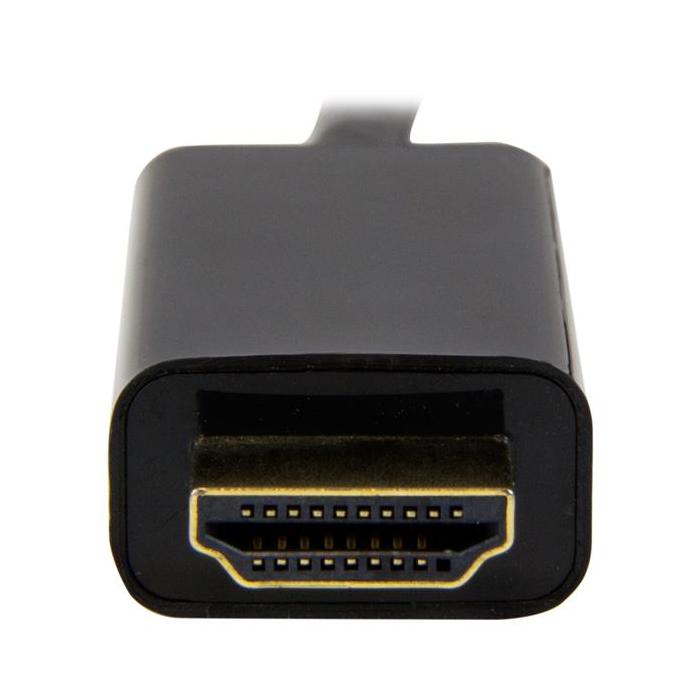

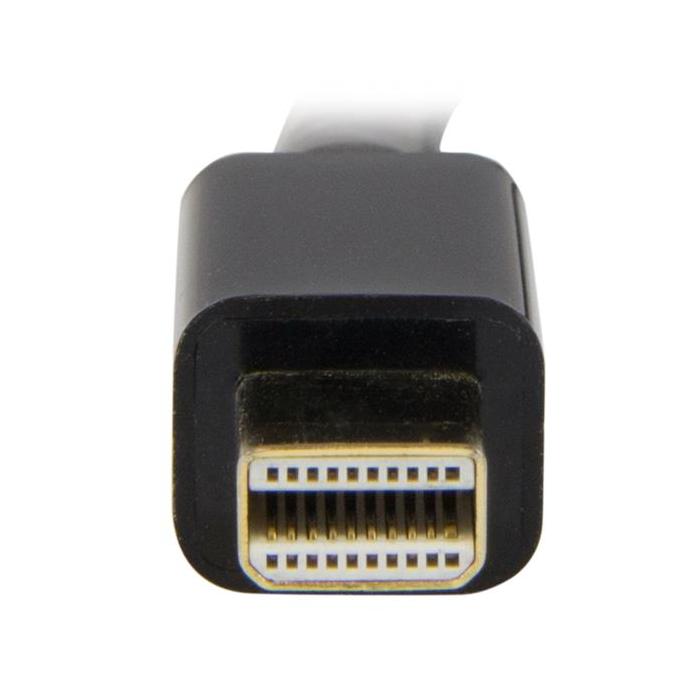

Connect a Mini DisplayPort output device to an HDMI type A input monitor or projector with this black 2 m StarTech.com converter cable. The male Mini DisplayPort connector and male HDMI type A connector, both straight, let you link the source and the monitor without additional adapters, with a weight of 75.2 g and dimensions of 41 x 15 x 2000 mm. As a passive video converter, the signal travels directly between both ports and supports a maximum resolution of 3840 x 2160 pixels at 30 Hz, plus 1080p and 720p modes and 1280 x 720, 1920 x 1080 and 1920 x 1200 resolutions. It is compatible with DisplayPort 1.2 and HDMI 1.4, and includes HDCP and DisplayPort content protection, so you can play protected content without issues. The plug and play function speeds up setup, as it requires no configuration or drivers.

Specifications

Features


  • Connector 1 form factor: Straight
  • Connector 2 form factor: Straight
  • Cable length: 2 m
  • Connector 1: Mini DisplayPort
  • Connector 2: HDMI Type A (Standard)
  • Connector 1 gender: Male
  • Connector 2 gender: Male
  • HDMI version: 1.4
  • HDCP: Yes
  • DisplayPort version: 1.2
  • DisplayPort Content Protection (DPCP): Yes
  • Maximum resolution: 3840 x 2160 pixels
  • Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
  • Supported video modes: 1080p, 720p
  • Maximum refresh rate: 30 Hz
  • Product colour: Black
  • Plug and Play: Yes
  • Converter type: Passive video converter

Operational conditions


  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -10 - 70 °C
  • Operating relative humidity (H-H): 10 - 85%

Certificates


  • Compliance certificates: RoHS
  • Certification: CE, FCC, REACH

Weight & dimensions


  • Weight: 75.2 g
  • Width: 41 mm
  • Depth: 2000 mm
  • Height: 15 mm

Packaging data


  • Package width: 41 mm
  • Package depth: 220 mm
  • Package height: 15 mm
  • Package weight: 120 g

Packaging content


  • Quantity per pack: 1 pc(s)

Logistics data


  • Harmonized System (HS) code: 84733080
  • Master (outer) case width: 420 mm
  • Master (outer) case length: 415 mm
  • Master (outer) case height: 435 mm
  • Products per master (outer) case: 180 pc(s)

Other features


  • Supported resolutions: 4000 x 2000 1920 x 1200 1920 x 1080 1280 x 720
