Description

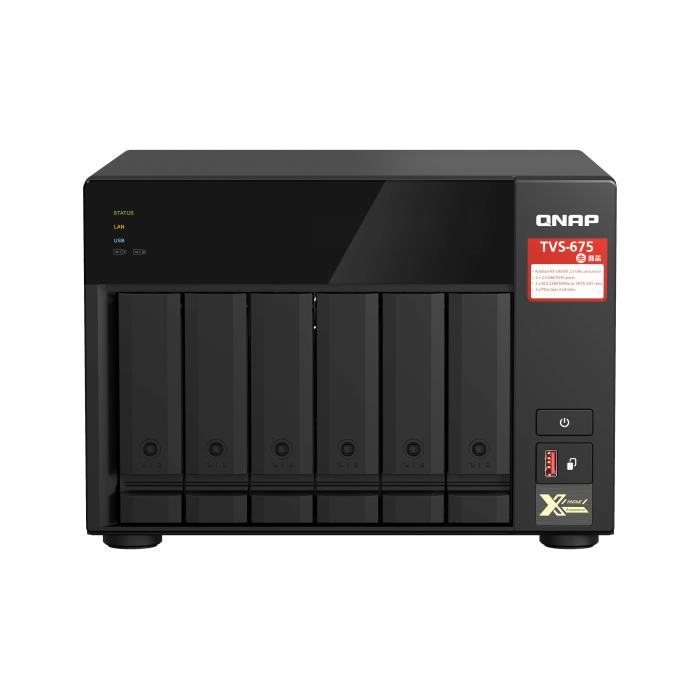

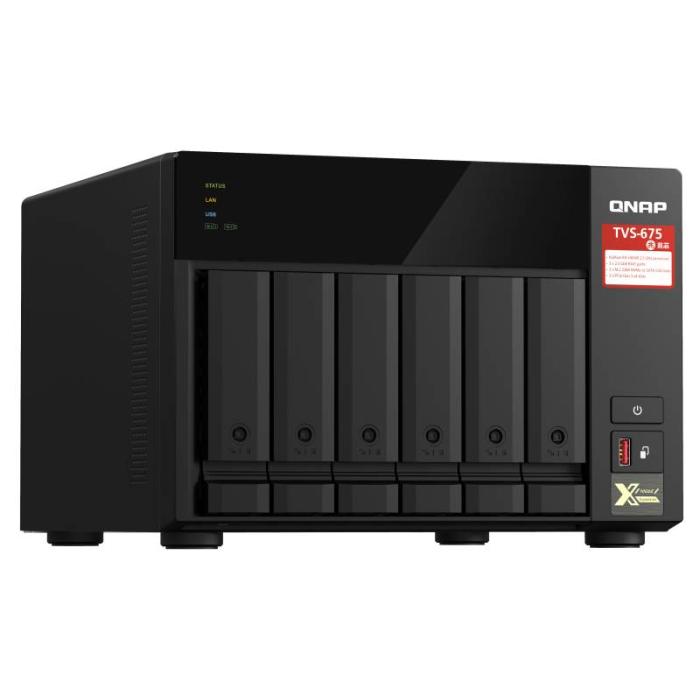

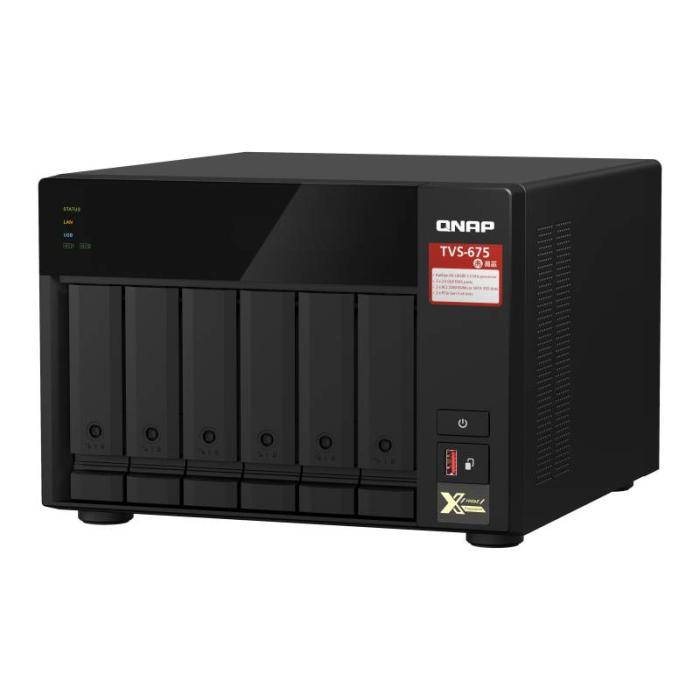

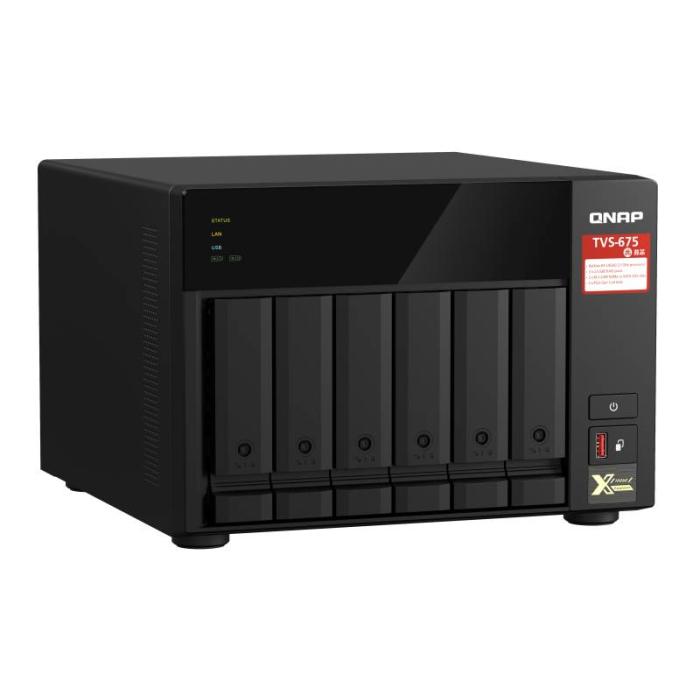

The QNAP TVS-675 is a black tower NAS with 8 GB of DDR4 memory, designed to centralise storage and manage data over the network. Its ZhaoXin KaiXian KX-6000 platform, with a KX-U6580 processor, runs the QuTS hero system and allows working with six compatible drives, both HDD and SSD. It supports 2.5 and 3.5 inch drives, plus two M.2 slots, with Serial ATA II, Serial ATA III and M.2 interfaces. It offers RAID 0, 1, 5, 6, 10, 50, 60 and JBOD, and includes functions such as RAID rebuild, online RAID expansion, online RAID level migration, disk roaming and bad sector detection. The hot-swap trays make it easy to change drives without shutting down the device, and the system recognises the FAT32, HFS+, NTFS, exFAT, ext3 and ext4 file systems. With dimensions of 263.9 x 188.2 x 280.8 mm (width x height x depth) and a weight of 6.2 kg, it fits into desktops and desktop racks.
Specifications
Storage
- Storage drive capacity: 0 GB
- Supported storage drive interfaces: M.2, Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5, M.2
- Number of M.2 (M & B) slots: 2
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, 50, 60, JBOD
- Online RAID migration: Yes
- Online RAID expansion: Yes
- RAID rebuild: Yes
- Hot-swap drive bays: Yes
- Supported file systems: FAT32, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 6
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
- Bad block scan: Yes
- Disk roaming: Yes
Processor
- Processor manufacturer: ZhaoXin
- Processor family: ZhaoXin KaiXian KX-6000
- Processor model: KX-U6580
- Processor frequency: 2.5 GHz
- Processor cores: 8
- On-board graphics card model: ZhaoXin C960
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4
- Maximum RAM supported: 64 GB
- Memory slots: 2
- Memory form factor: SO-DIMM
- Flash memory: 5000 MB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 100, 1000, 2500 Mbit/s
- DHCP client: Yes
- DHCP server: Yes
- Jumbo frames support: Yes
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: IPv4, IPv6
- Link aggregation: Yes
- Load balancing system: Yes
- Dynamic DNS (DDNS): Yes

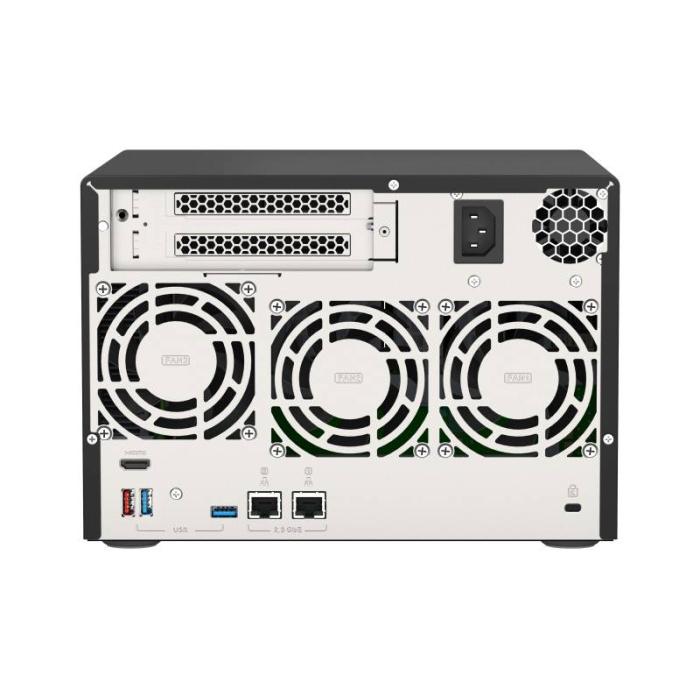

Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.0
- Ethernet LAN (RJ-45) ports: 2
- Concurrent connections: 2000
- PCI Express x4 (Gen 3.x) slots: 2
Design
- Chassis type: Tower
- Cooling type: Active
- Product colour: Black
- Number of fans: 3 fan(s)
- Fan diameter: 8 cm
- LED indicators: HDD, LAN, SSD, Status, USB
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Performance
- Type: NAS
- Device class: Small & Medium Business
- Backup function: Yes
- Backup features: Cloud, USB drive, iSCSI LUN
- Buzzer: Yes
- Multilingual support: Yes
- Number of users: 2000 user(s)
- Noise level: 20.2 dB
- Third-party support: Yes
- Snapshot: Yes
- Share folder access right management: Yes
- Security algorithms: 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSL/TLS
- Access Control List (ACL): Yes
- Reset button: Yes
- On/off switch: Yes
- Built-in FTP server: Yes
- Browser supported: Apple Safari, Google Chrome, Mozilla Firefox, Microsoft Edge
- System log: Yes
- Hot spare: Yes
- Password authentication: Yes
- Disk scan: Yes
- S.M.A.R.T. support: Yes
- Share folder: AFP, CIFS/SMB, FTP, WebDAV
- USB copy function: Yes
Software
- Operating system installed: QuTS hero
- Operating system version: h5.0.0
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.0
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 20
- Other operating systems supported: IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11
Power
- Power supply location: Built-in
- Power supply unit (PSU) capacity: 250 W
- Number of power supply units: 1
- Power consumption (typical): 60.794 W
- Power consumption (HDD standby): 41.897 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Fan voltage: 12 V
Weight & dimensions
- Width: 263.9 mm
- Depth: 280.8 mm
- Height: 188.2 mm
- Weight: 6.2 kg
- Package weight: 7.67 kg
Packaging content
- Cables included: AC, LAN (RJ-45)
- Power cables quantity: 1
- Quick installation guide: Yes
- Number of screws: 36
- Drive tray key included: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 70 °C
- Storage relative humidity (H-H): 5 - 95%
Logistics data
- Harmonized System (HS) code: 84714100
Other features
- Fibre Channel: Yes
