Description

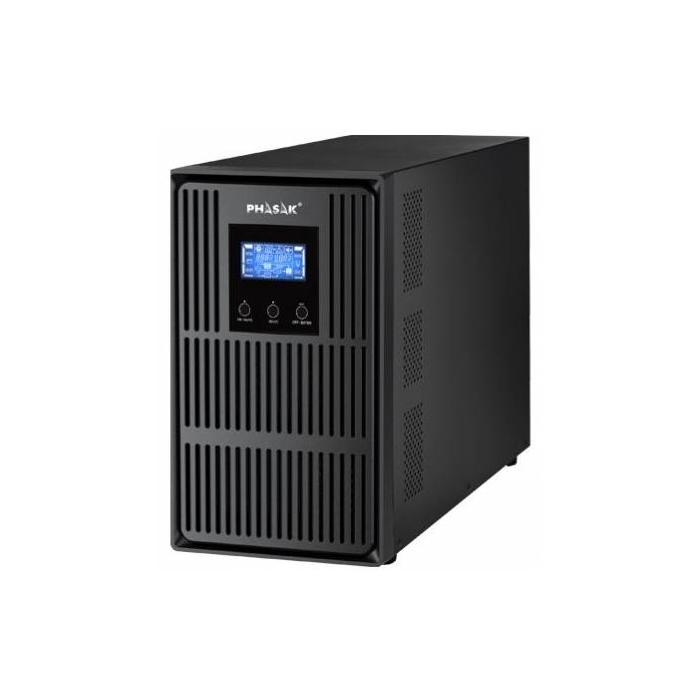

The Phasak UPS Conqueror Pro Online PH 8030 offers an output power of 3000 VA with double online conversion and pure sine wave, ideal for protecting servers and critical equipment. Its 0.9 output power factor and automatic voltage regulation (AVR) keep alternating current stable, with an output voltage regulation of 1%. It incorporates ECO mode to optimise consumption and protections against overvoltage, overload, overheating and battery discharge. Audible alarms warn of faults, low battery, overload or the need to replace the battery. Its noise level is 45 dB and it accepts an input frequency of 40/70 Hz, adjusting the output to 50/60 Hz.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 3 kVA
- Output power: 2700 W
- Waveform: Pure sine
- Input operation voltage (min): 110 V
- Input operation voltage (max): 290 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 230 V
- Output operation voltage (max): 230 V
- Output frequency regulation: 50/60 Hz
- Output voltage regulation: 1%
- Automatic Voltage Regulation (AVR): Yes
- Response time: 4 ms
- Number of input phases: 1
- Number of output phases: 1
- Efficiency (On-line mode): 0.9%
- Power factor: 0.9
- Input power factor: 1
- Output power factor: 0.9
- Crest factor: 3:1
- ECO mode: Yes
- Emergency Power Off (EPO): No
- Output voltage Total Harmonic Distortion (THD): 3%
- Input current Total Harmonic Distortion (THD): 3%
- Noise level: 45 dB
- Surge protection: No
- Power protection features: Battery discharge, Over power, Over voltage, Overcharge, Overheating, Overload
- Carrying handle(s): No
- Audible alarm(s): Yes
- Audible alarm modes: Battery replacement, Fault, Low battery alarm, Overload alarm
- Potential-free output: No
- Auto-restart: Yes
- Auto shut-off: Yes
- Power source type: AC
- Detachable power cord: Yes

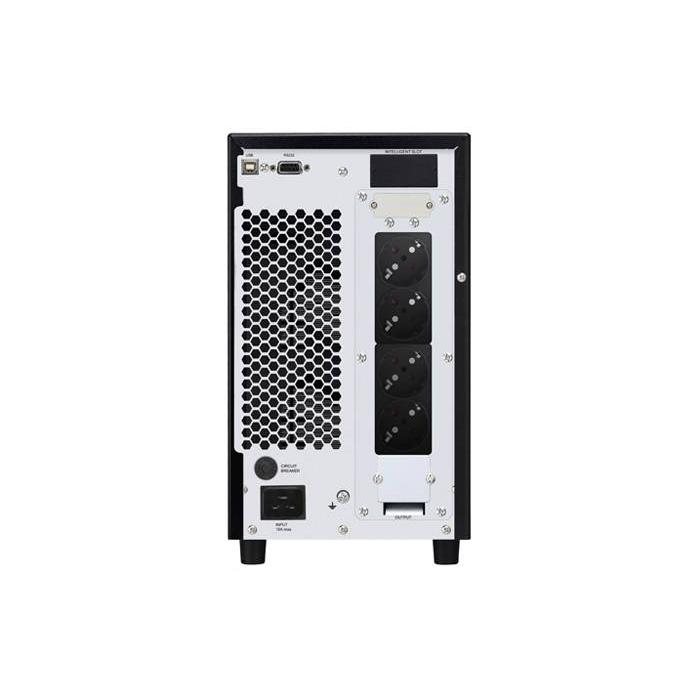

Ports & interfaces
- AC outlet types: Type F
- Power plug: Type F
- AC outlets quantity: 3 AC outlet(s)
- Number of type F outputs: 3
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB port type: USB Type-B
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 2
- RS-232 ports: 1
- Ethernet LAN (RJ-45) ports: 2
- Emergency Power Off (EPO) connector: No
- SmartSlot: Yes
Battery
- Battery technology: Lead-Calcium (Pb-Ca)
- Battery capacity: 9 Ah
- Battery voltage: 12 V
- Number of batteries supported: 2
- Typical backup time at full load: 15 min
- Typical backup time at half load: 8 min
- Battery recharge time: 4 h
- Automatic battery test: No
- Cold start: Yes
Design
- Form factor: Mini Tower
- Cable length: 1 m
- Modular: No
- Cooling type: Active
- Built-in fan: Yes
- Product colour: Beige
- Control type: Buttons
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 95%
- Storage relative humidity (H-H): 20 - 95%
Certificates
- Compliance certificates: CE
Packaging content
- Rack mount kit: No
- Cables included: Power load cable
- Manual: Yes
- Quick installation guide: Yes
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 190 mm
- Depth: 421 mm
- Height: 318 mm
- Weight: 27.6 kg
- Battery width: 15.1 cm
- Battery depth: 6.5 cm
- Battery height: 9.5 cm
- Battery weight: 2.2 kg
Packaging data
- Software CD: No
- Manual languages: English, Spanish, Portuguese
- Package width: 320 mm
- Package depth: 560 mm
- Package height: 460 mm
- Package weight: 27.8 kg
- Package type: Box
Logistics data
- Serialized: No
- Quantity per pack: 1 pc(s)
