Description

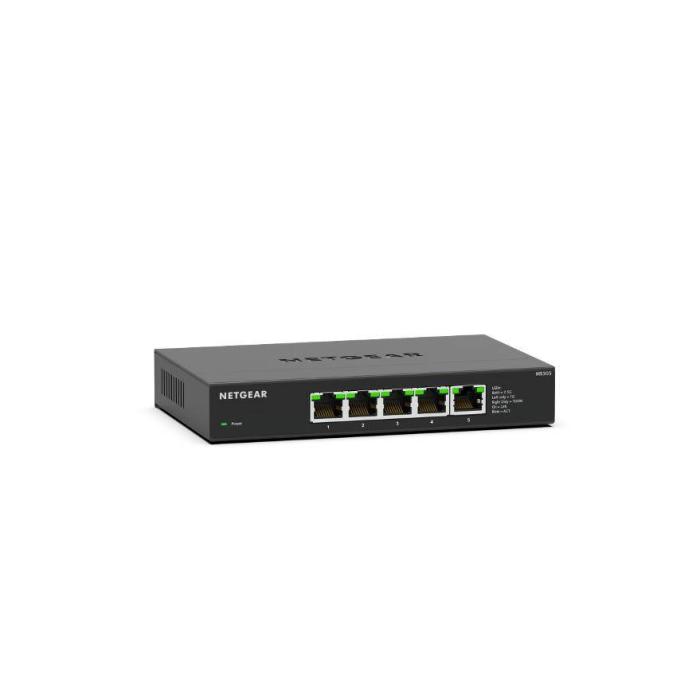

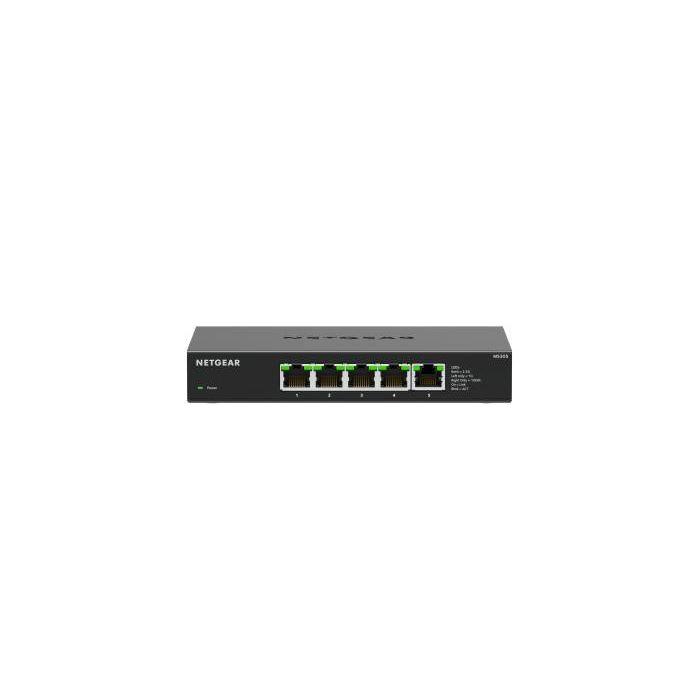

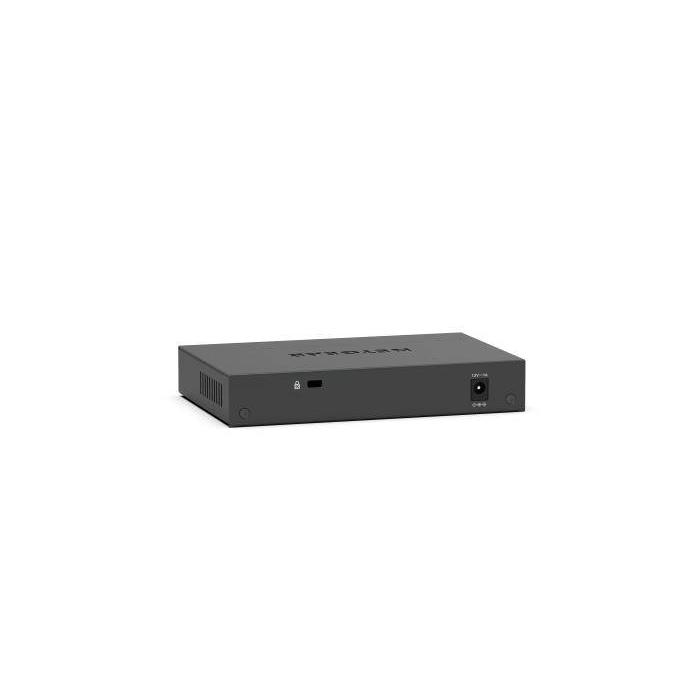

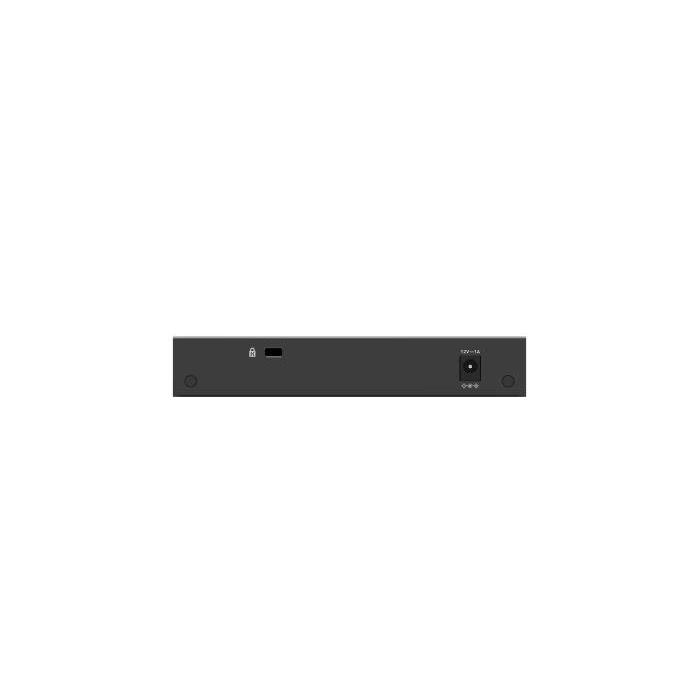

The NETGEAR MS305-100EUS switch is an unmanaged device in black with a metal casing and five RJ-45 ports with support for 2.5G Ethernet (100/1000/2500). It reaches data transfer speeds of 100, 1000 and 2500 Mbit/s, with a forwarding rate of 3.72 Mpps and a latency of 2458 µs at 1 Gbps. It incorporates a packet buffer memory of 1 MB and supports Jumbo frames of up to 9720, as well as functions such as QoS, cable length detection, Auto MDI/MDI-X, full duplex, half-duplex transmission and head-of-line blocking. It complies with the IEEE 802.1p, 802.3, 802.3ab, 802.3az, 802.3bz, 802.3u and 802.3x standards. Its dimensions are 158 x 29 x 101 mm (width x height x depth) and it weighs 480 g, making it compact and easy to place in any installation.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- Full duplex: Yes
- Half duplex: Yes
- Auto MDI/MDI-X: Yes
- Head-of-line (HOL) blocking: Yes
- Ethernet LAN data rates: 100,1000,2500 Mbit/s
- Cable length detection: Yes
Data transmission
- Forwarding rate: 3.72 Mpps
- Latency (1 Gbps): 2458 µs
- Jumbo frames support: Yes
- Jumbo frames: 9720
- Packet buffer memory: 1 MB
Design
- Rack mounting: No
- Stackable: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Wall mountable: Yes
- Number of fans: 0 fan(s)
Performance
- Noise level: 0 dB
- Fanless: Yes
- Mean time between failures (MTBF): 1401743 h
Power
- Power source: DC
- Power supply included: Yes
- DC input voltage: 12 V
- Input current: 1 A
- Input voltage: 12 V
- Power consumption (typical): 4.6 W
- Power consumption (max): 9.24 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
Weight & dimensions
- Width: 158 mm
- Depth: 101 mm
- Height: 29 mm
- Weight: 480 g
Certificates
- Compliance certificates: CCC, Low Voltage Directive (LVD)
