Description

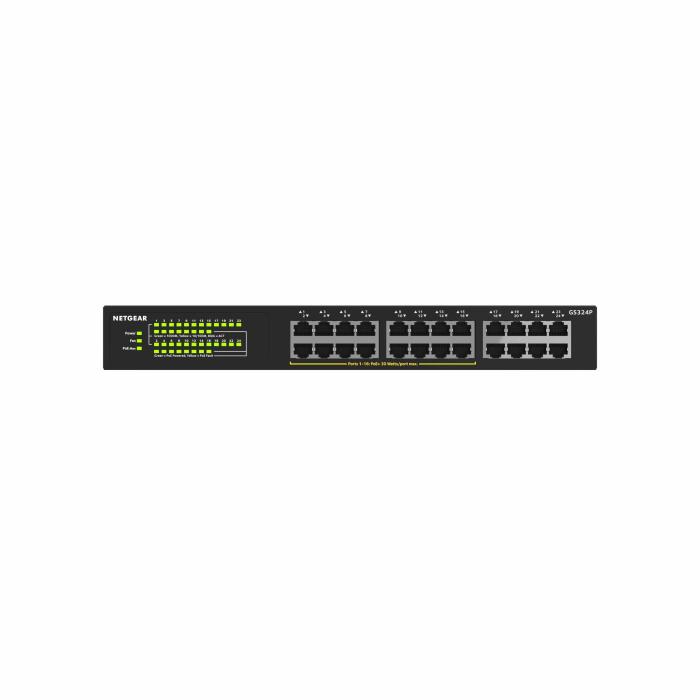

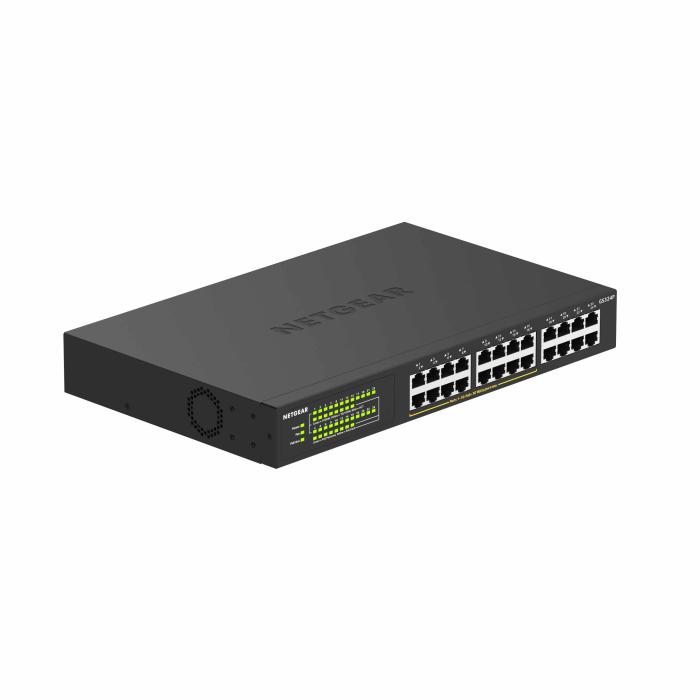

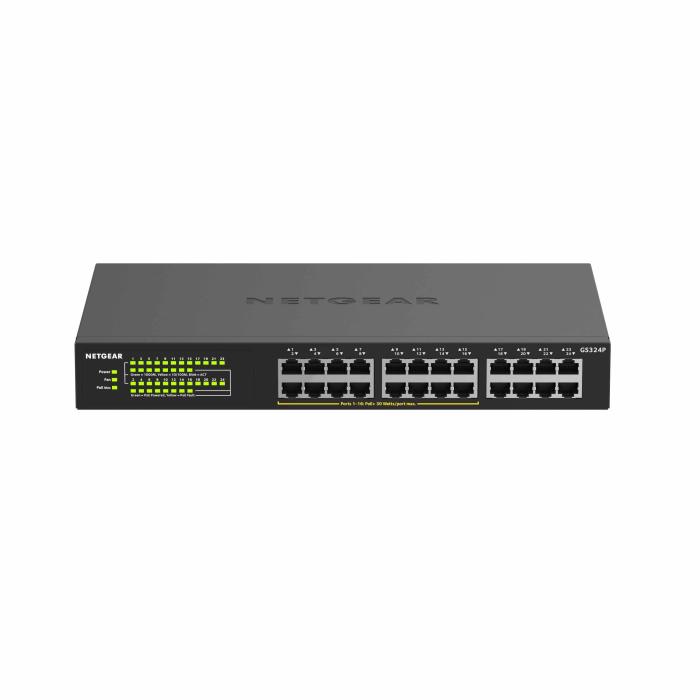

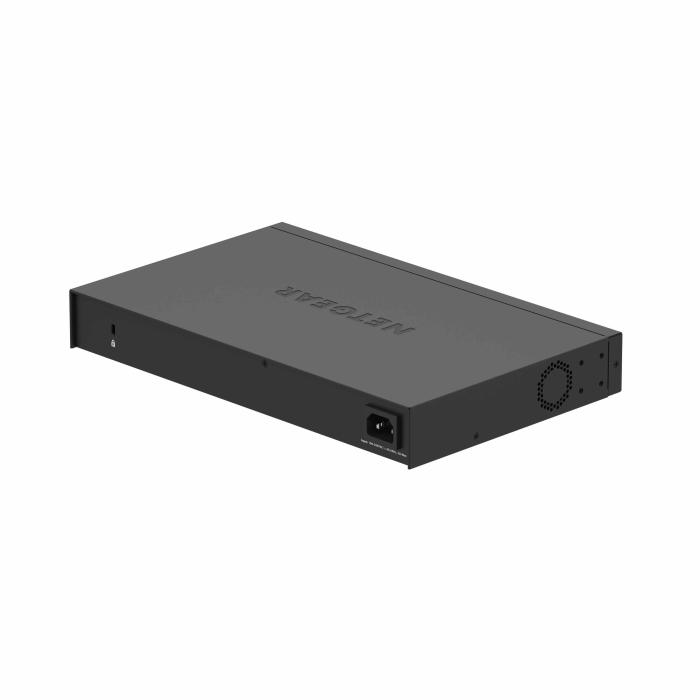

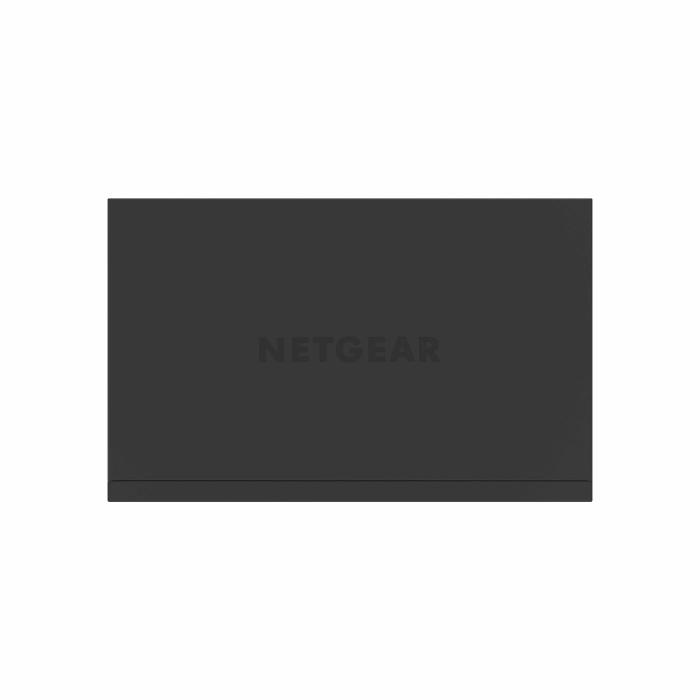

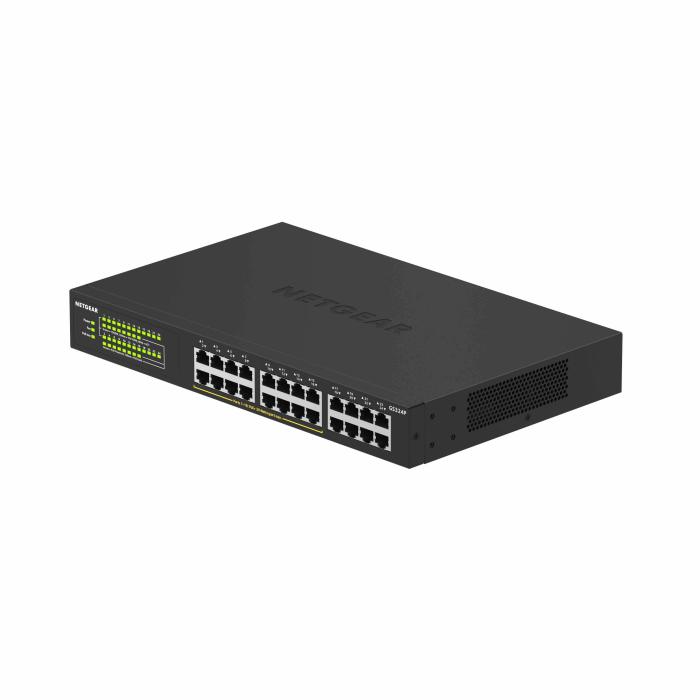

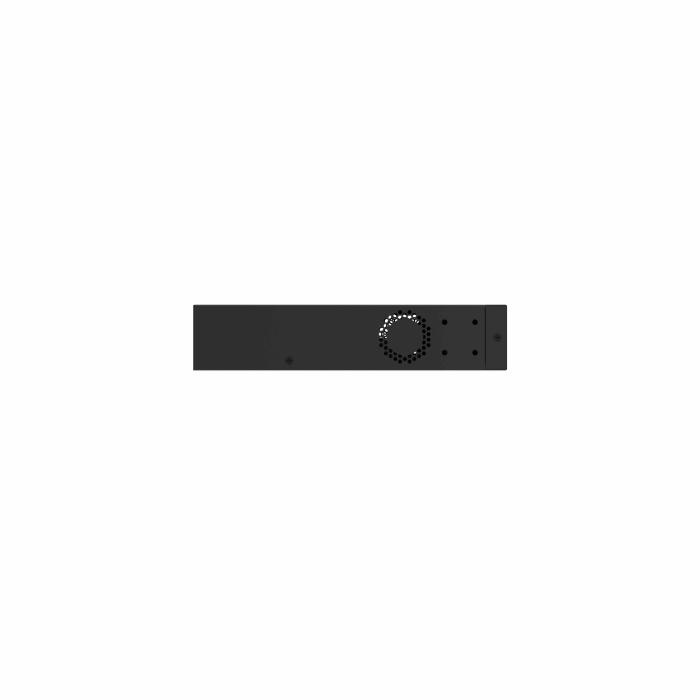

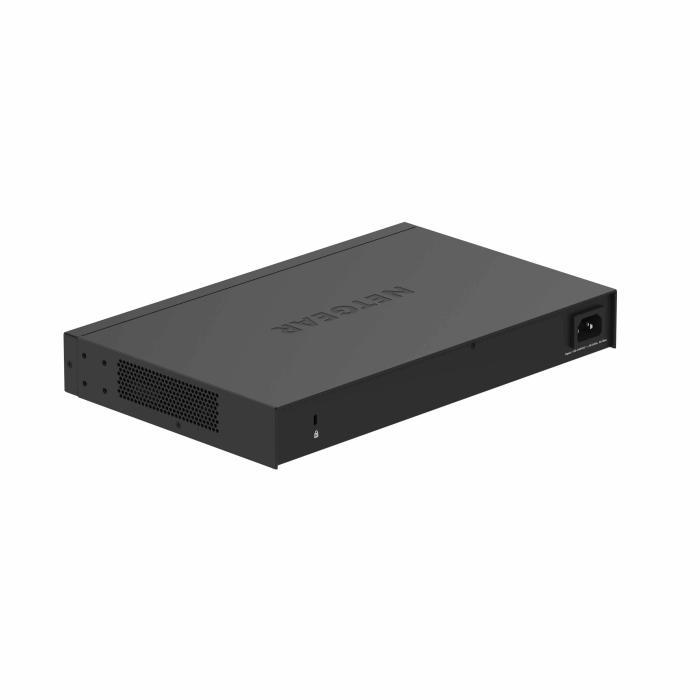

The NETGEAR GS324P switch is an unmanaged device with 24 Gigabit Ethernet (10/100/1000) RJ-45 ports and Power over Ethernet support, designed to expand the network of an office or installation with several wired devices. Its 1U format allows it to be mounted in a communications cabinet, with dimensions of 330 x 43 x 206 mm (width x height x depth) and a weight of 2.44 kg. The metal casing and black colour give it a discreet and durable presence for fixed installations. It offers Quality of Service (QoS) and Weighted Round Robin (WRR) queue scheduling algorithms to prioritise traffic. It complies with the IEEE 802.1p and IEEE 802.3at standards, and includes auto-negotiation, auto MDI/MDI-X and full duplex transmission. Its switching capacity reaches 48 Gbit/s, with a packet forwarding rate of 1448000 pps and a latency of 4 µs at 1 Gbps.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1p, IEEE 802.3at
- 10G support: No
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 48 Gbit/s
- MAC address table: 8000 entries
- Latency (1 Gbps): 4 µs
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet forwarding rate (1 Gbps): 1448000 pps
- Packet buffer memory: 0.192 MB
Security
- Queue scheduling algorithms: Weighted Round Robin (WRR)
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Activity, Link, PoE, Power, Speed

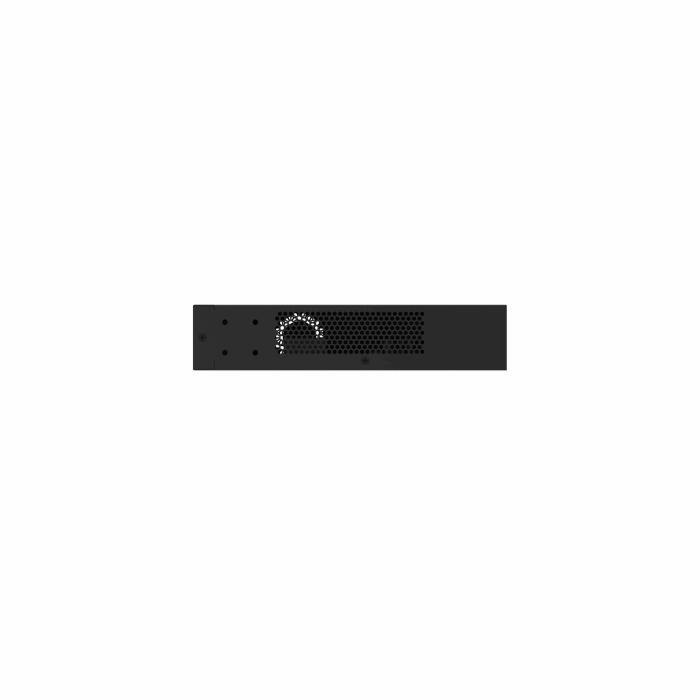

- Number of fans: 1 fan(s)
- Electromagnetic compatibility: CE, FCC 15 A, IC A, RCM, VCCI, KC
Performance
- Mean time between failures (MTBF): 1193574 h
Power

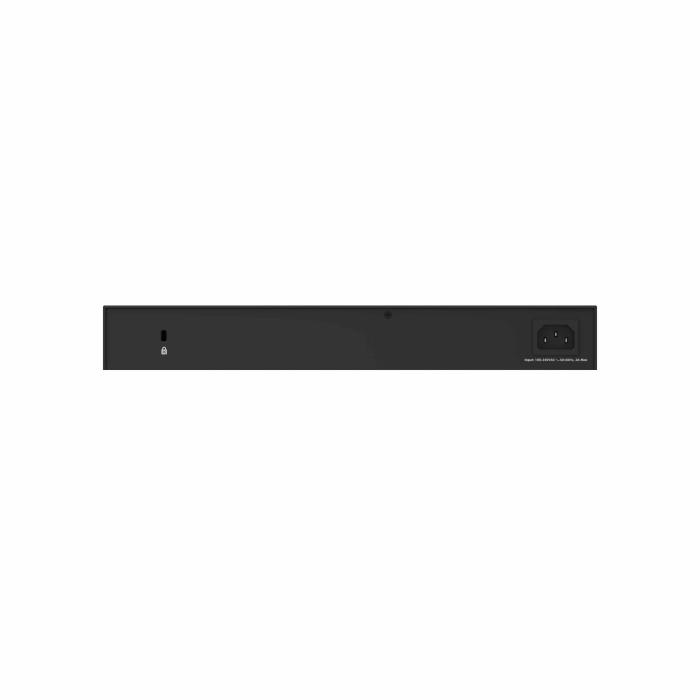

- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 3 A
- Power consumption (max): 210 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 16
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 190 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 95%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 718.2 BTU/h
Weight & dimensions
- Width: 330 mm
- Depth: 206 mm
- Height: 43 mm
- Weight: 2.44 kg
Certificates
- Certification: CB, CE LVD, UL
Logistics data
- Harmonized System (HS) code: 85176990
